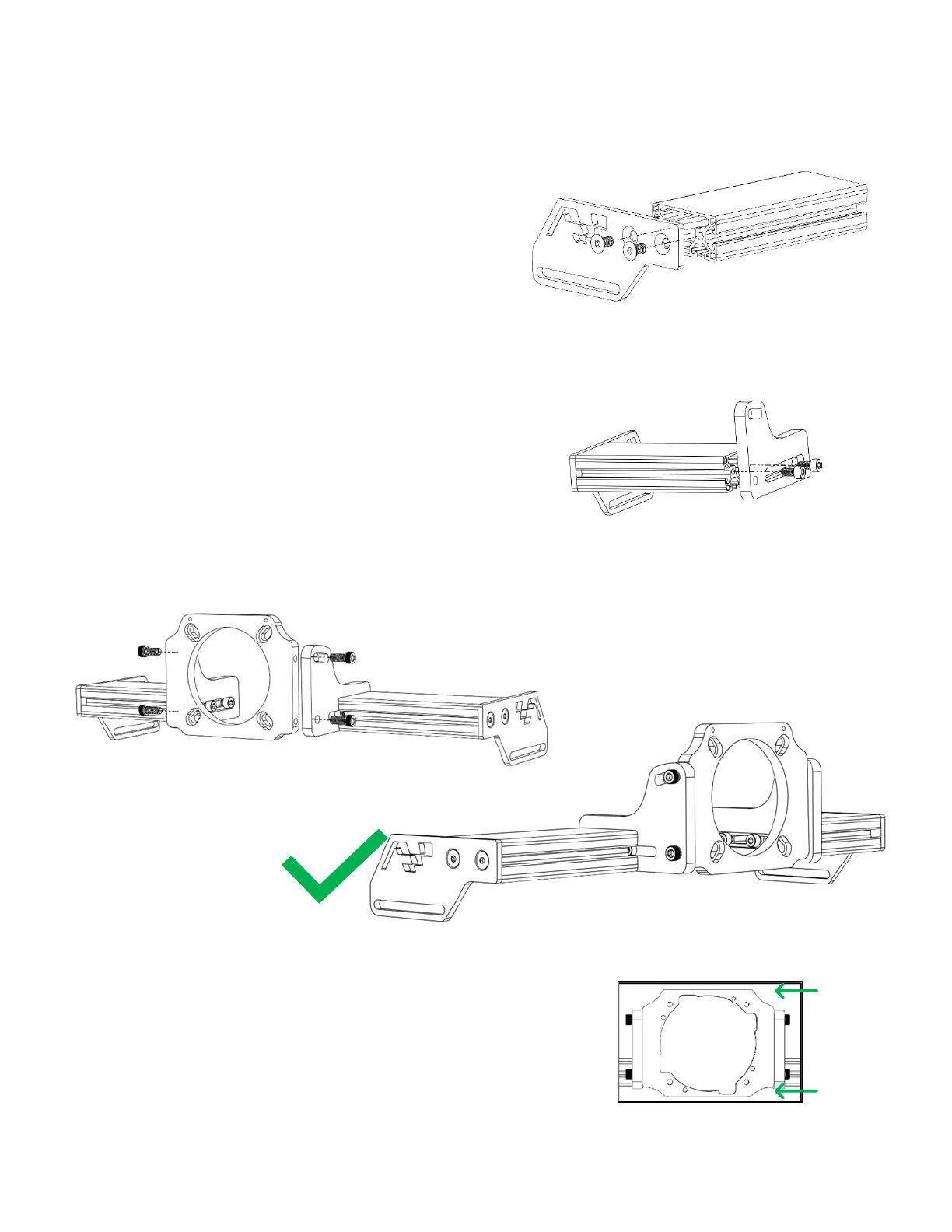

Front mount Wheel Deck & Asetek add-on
1. Assemble the side plate to the 3” X 6 7/8”
extrusion using 2X M8 X 16 flat head
screws. Repeat for both sides, tighten fully.
2. Assemble the middle DD plate to the
3” X 6 7/8” extrusion using 2X M8 X 16
socket screws.
Repeat for both sides, tighten fully.
3. Assemble the front plate to both sides using 4x M8 x 20 socket screws.
Tighten fully.
PS: For the Asetek front mount, make sure the mount is upright.
The spacing is slightly different between the top and bottom, and
the asetek wheelbase fits litterally only one way in the mount.
Follow the same steps used for the universal front mount for
installation.
