Advantech-DLoG DLT-V83 Series Manual V1.31 Page 91 of 178

8.1.2. Connections

Connections 12/24/48 VDC wide-range power supply unit:

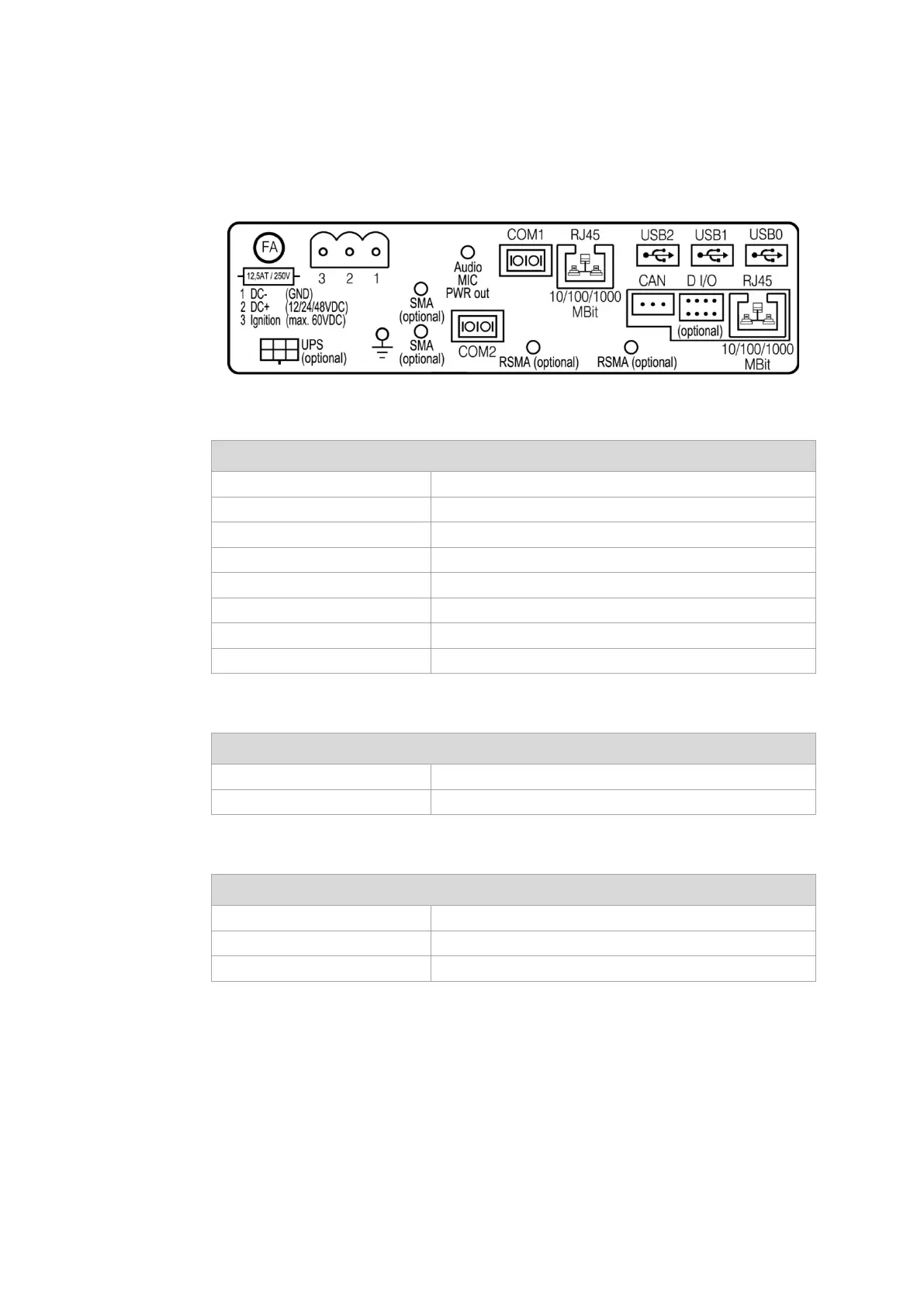

Fig. 8.2: External connections 12/24/48 VDC devices detail view

Pin assignment (standard)

Power supply 12/24/48 VDC nominal

UPS (optional) Uninterruptible power supply (UPS)

2 x SMA (optional) WWAN/GPS

Audio MIC PWR out Voice Kit

COM1, COM2 Serial interfaces

2 x RSMA (optional) Remote WiFi antenna(s)

RJ45 LAN Ethernet 10/100/1000 MBit/s

USB2, USB1, USB0 USB 2.0 interfaces (HI-SPEED™), bootable

Expansion interfaces package 1 (optional)

D I/O Digital In/Out

RJ45 LAN Ethernet 10/100/1000 MBit/s

Expansion interfaces package 2 (optional)

CAN CAN interface

D I/O Digital In/Out

RJ45 LAN Ethernet 10/100/1000 MBit/s
