2-2 Selecting Link Terminal and Cable
Use the RJ-45 connector to connect the Ethernet port of the ADAM-6000 to the Hub. The cable for
connection should be Category 3 (for 10Mbps data rate) or Category 5 (for 100Mbps data rate)
UTP/STP cable, which is compliant with EIA/TIA 586 specifications. Maximum length between the Hub
and any ADAM-6000 modules is up to 100 meters (approx. 300 ft).

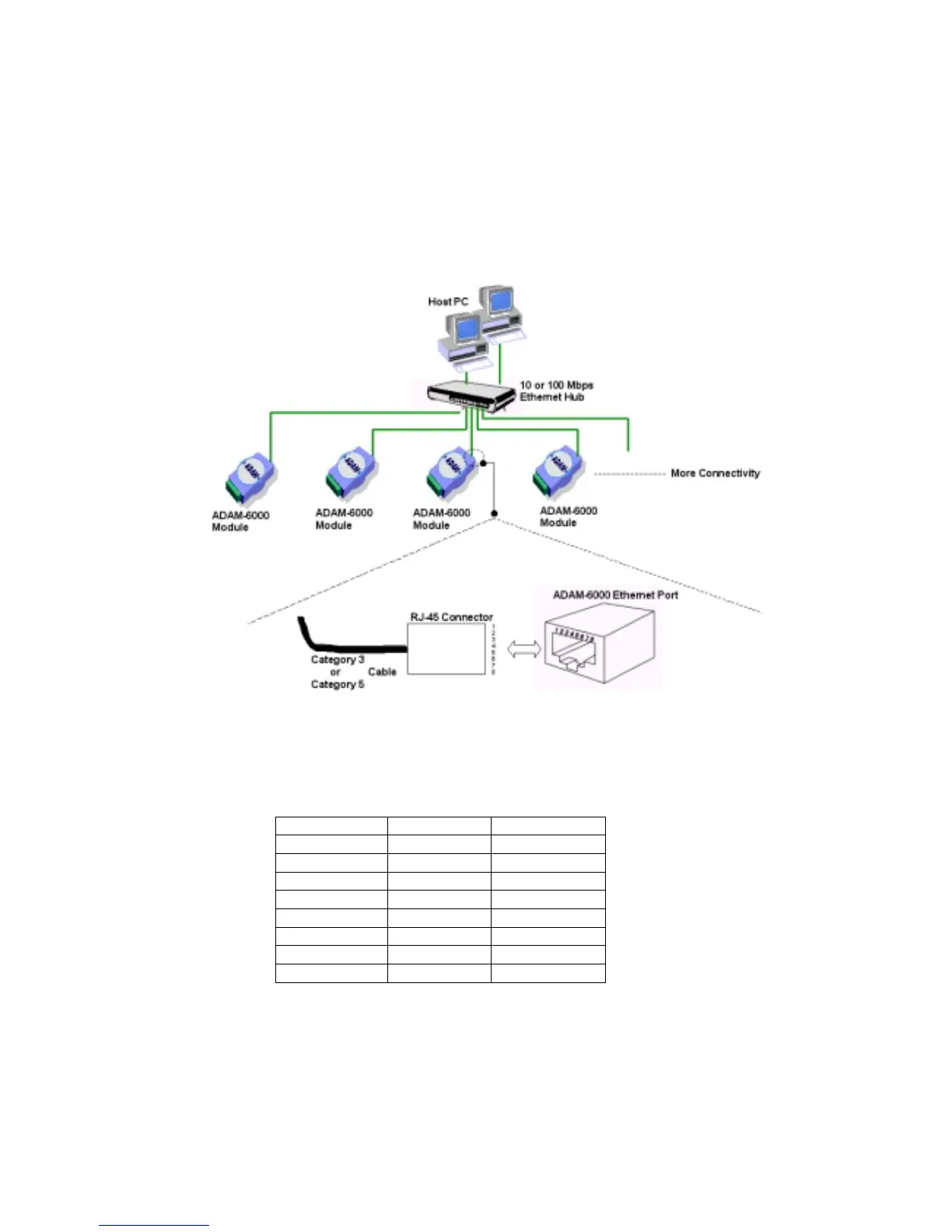

Figure 2-1 Ethernet Terminal and Cable Connection
PIN NUMBER SIGNAL FUNCTION
1 RD+ Receive (+)
2 RD- Receive (-)
3 TD+ Transmit (+)
4 (Not Used) -
5 (Not Used) -
6 TD- Transmit (-)
7 (Not Used) -
8 (Not Used) -
Table 2-2 Ethernet RJ-45 port Pin Assignment
