ADAM-6700 User Manual 14
2.2.2 Application Wiring
Digital Input and Digital Output Wiring

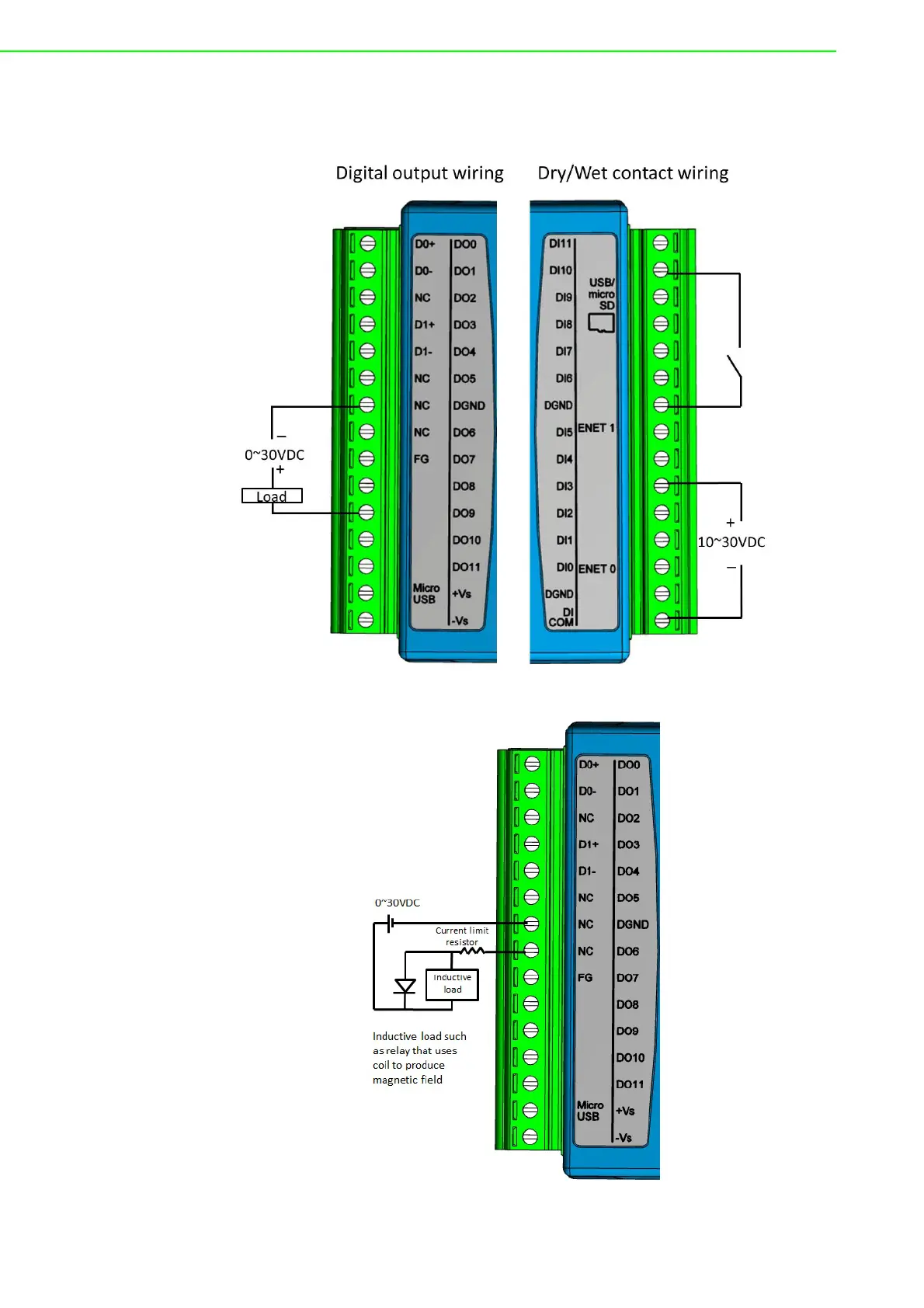

Figure 2.5 Digital Input and Digital Output Wiring
Figure 2.6 Digital Output with Inductive Load
