2.4 Operate the computer

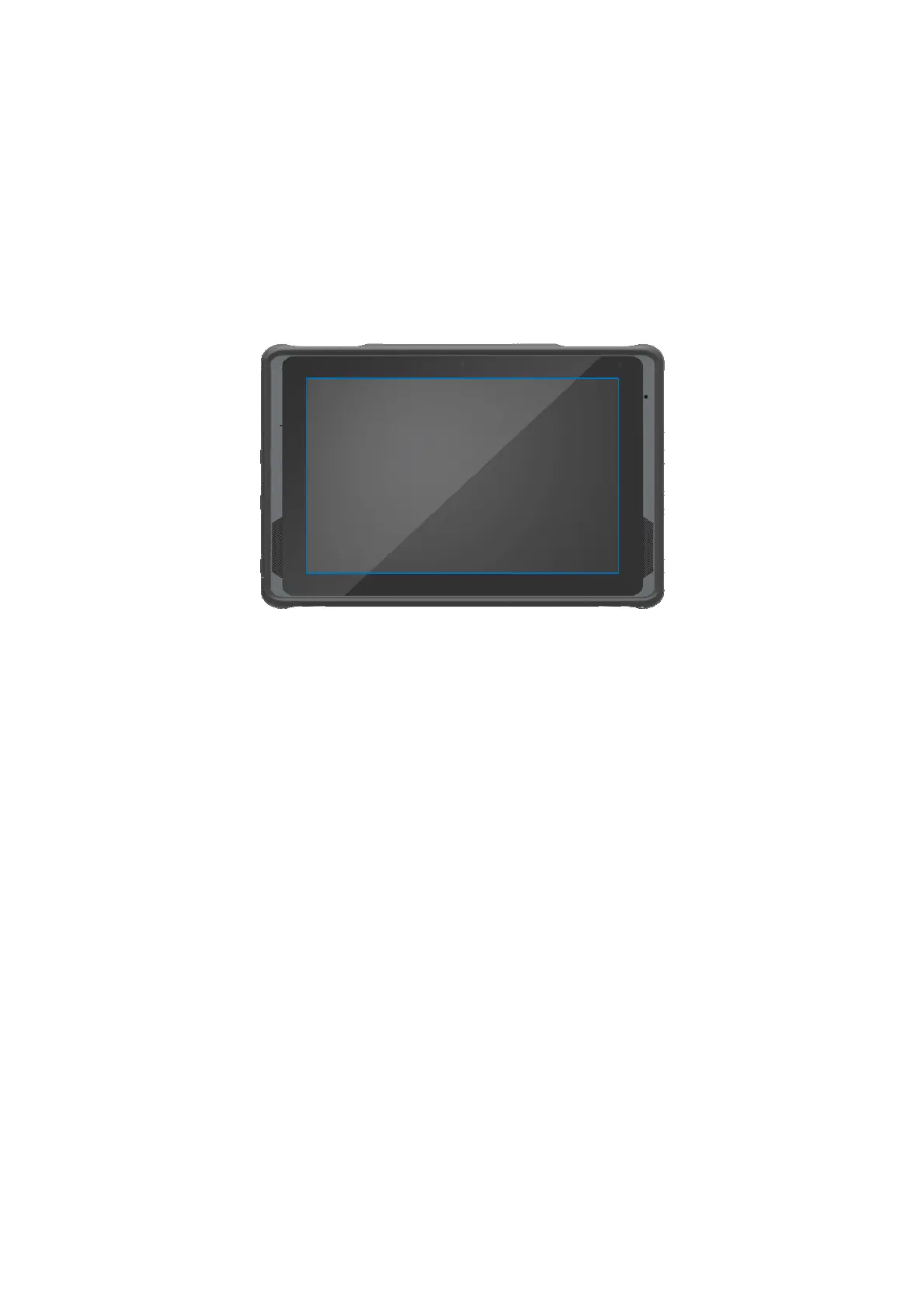

AIM 10W is equipped with a 10” Capacitive Touch Panel. Use finger to touch the
following Active Area to operate the computer.
2.5 LED indicator status
AIM 10W is equipped with one LED indicator for battery status. The following shows
LED status for different power states.
This power LED has three colors: Red, Green, and Blue.
a) The Red LED blinks when internal battery capacity is below 10% to warn the user
to charge.
b) The Blue LED lights up when internal battery is being charged.
c) The Green LED lights up when internal battery has been fully charged.
ActiveArea
