Advantech DS-081 Series User Manual

DS-081 Series User Manual 16

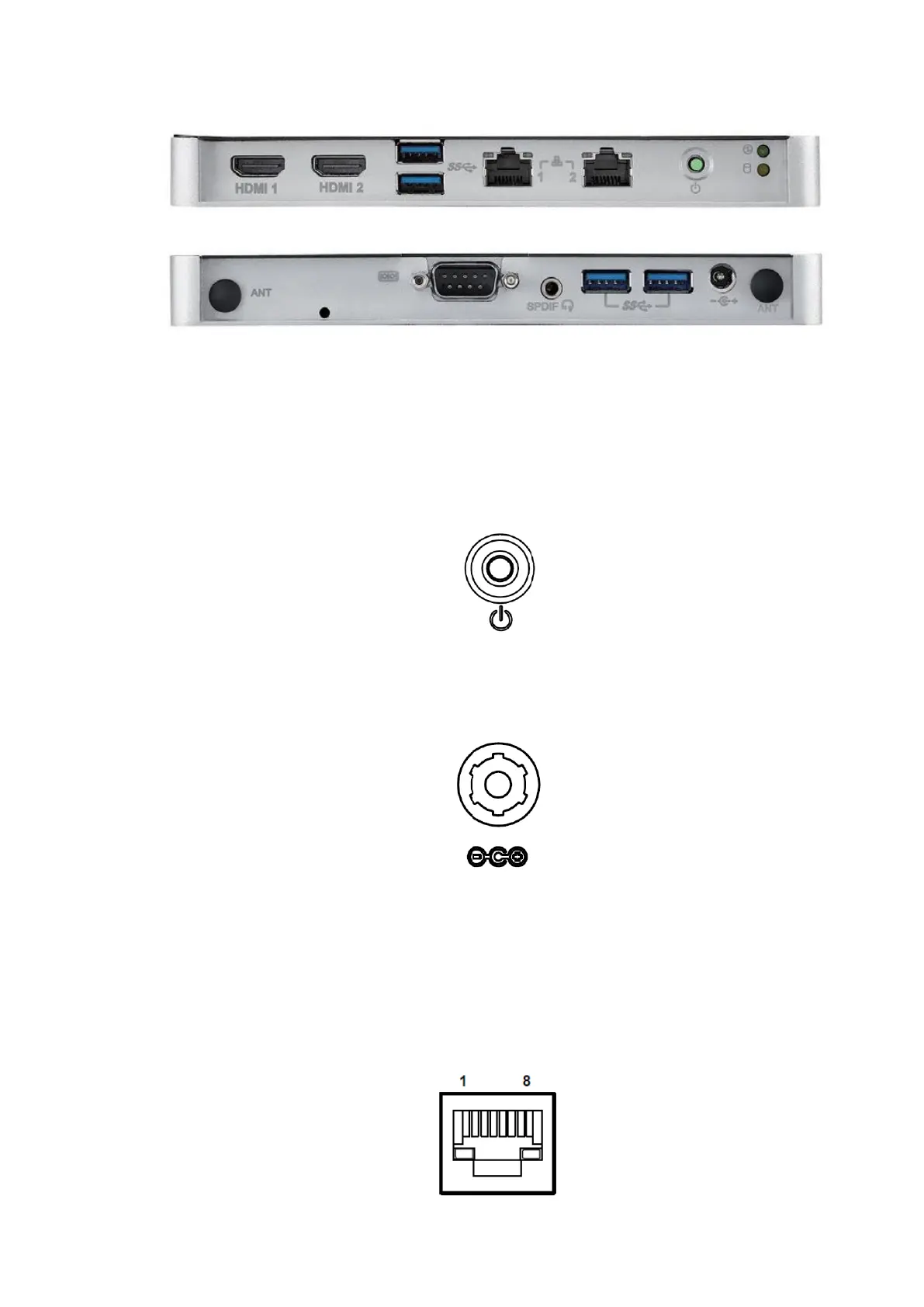

2.1 DS-081 Series I/O Connectors
Figure 2.1：Front View
Figure 2.2：Rear View
2.2 DS-081 Series External I/O Connectors
2.2.1 Power ON/OFF Button
DS-081 Series has a power ON/OFF button on the front side. Push this button to turn the
system ON and OFF. It also supports a 5 second delay soft power off.
Figure 2.3：Power Button
2.2.2 DC Input Connector
DS-081 Series supports 19VDC DC power in.
Figure 2.4：DC Input Connector
2.2.3 LAN Connector
DS-081 Series provides two RJ-45 LAN interface connector, fully compliant with
IEEE802.3u 10/100/1000 Base-T CSMA/CD standards. The Ethernet port provides a
standard RJ-45 jack connector with LED indicators to show its Active/Link status and
speed status.
