DS-081 Series User Manual 20

2.3 Hardware Installation

2.3.1 Attached HDD Thermal Pads

(1) Attached thermal pads on DS-081 HDD bracket

2.3.2 HDD Bracket Installation

(1) Fix HDD with screws on the HDD bracket

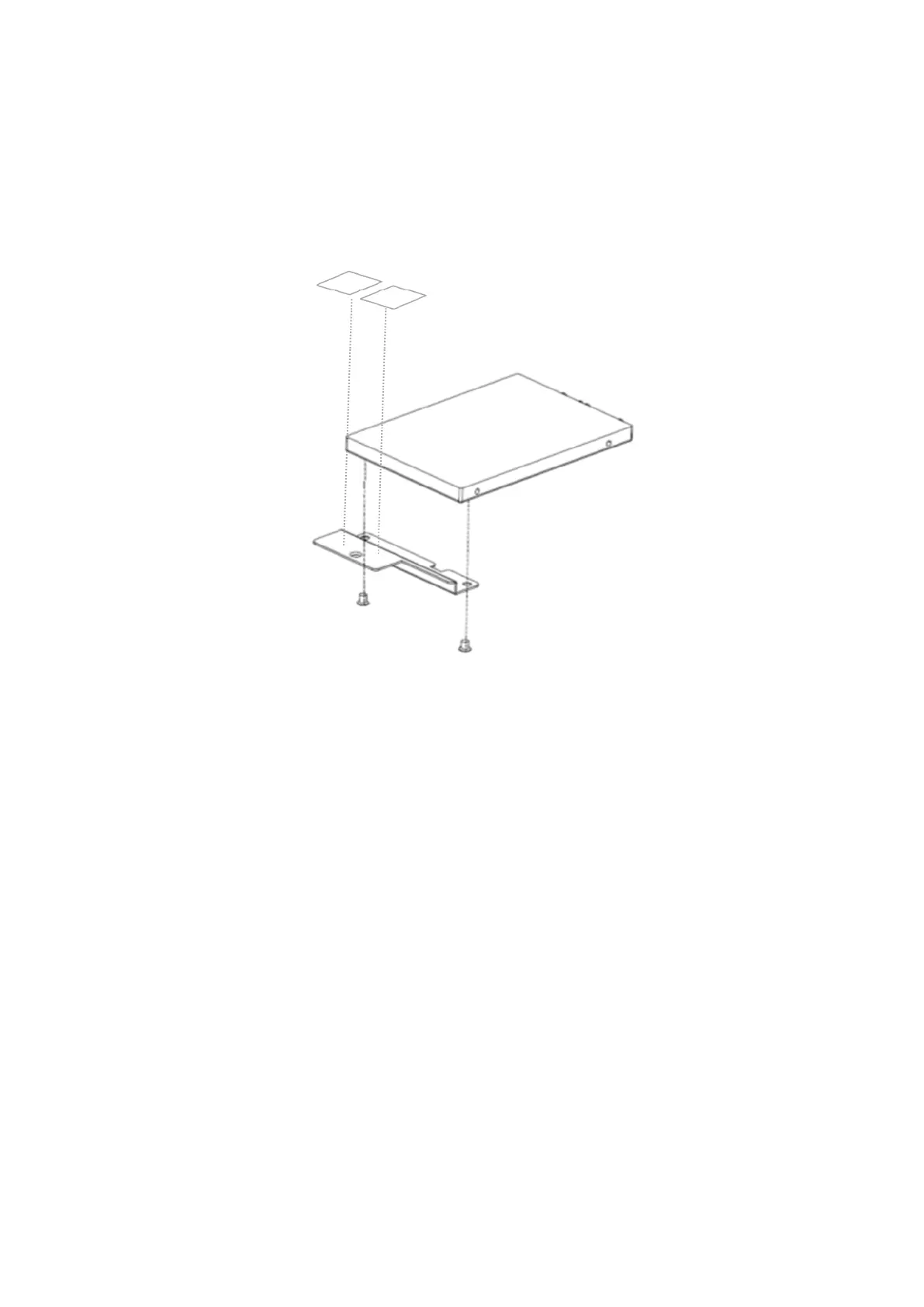

Figure 2.11：HDD Bracket Installation

2.3.3 HDD Installation

(1) Remove the top cover by loosening the fixing screws

(2) Connect HDD with on board SATA connector and then fix it with screws
