DS-081 Series User Manual 21

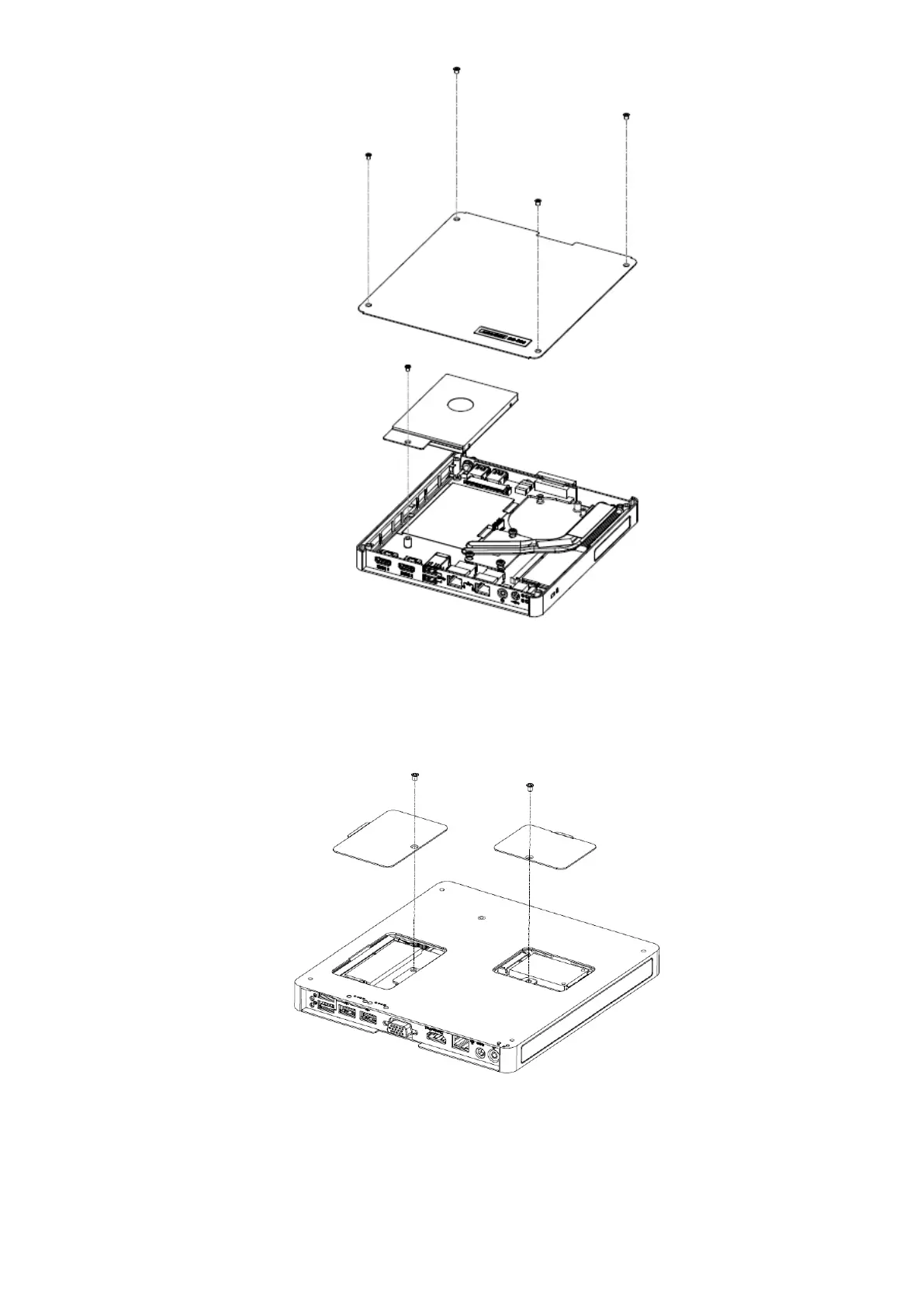

Figure 2.12：HDD Installation

2.3.4 Mini PCIe Card/Memory Module Installation

(1) Remove the bottom cover by loosening the fixing screws and then insert Mini PCIe

and Memory Module into the socket.

Figure 2.13：Mini PCIe Card/Memory Module Installation
