Advantek Networks ALN-318C User Manual

10
3) For <Marvell> & <Realtek> Gigabit PCI Adapters:
Æ After system boots up, the device driver will be installed completely.

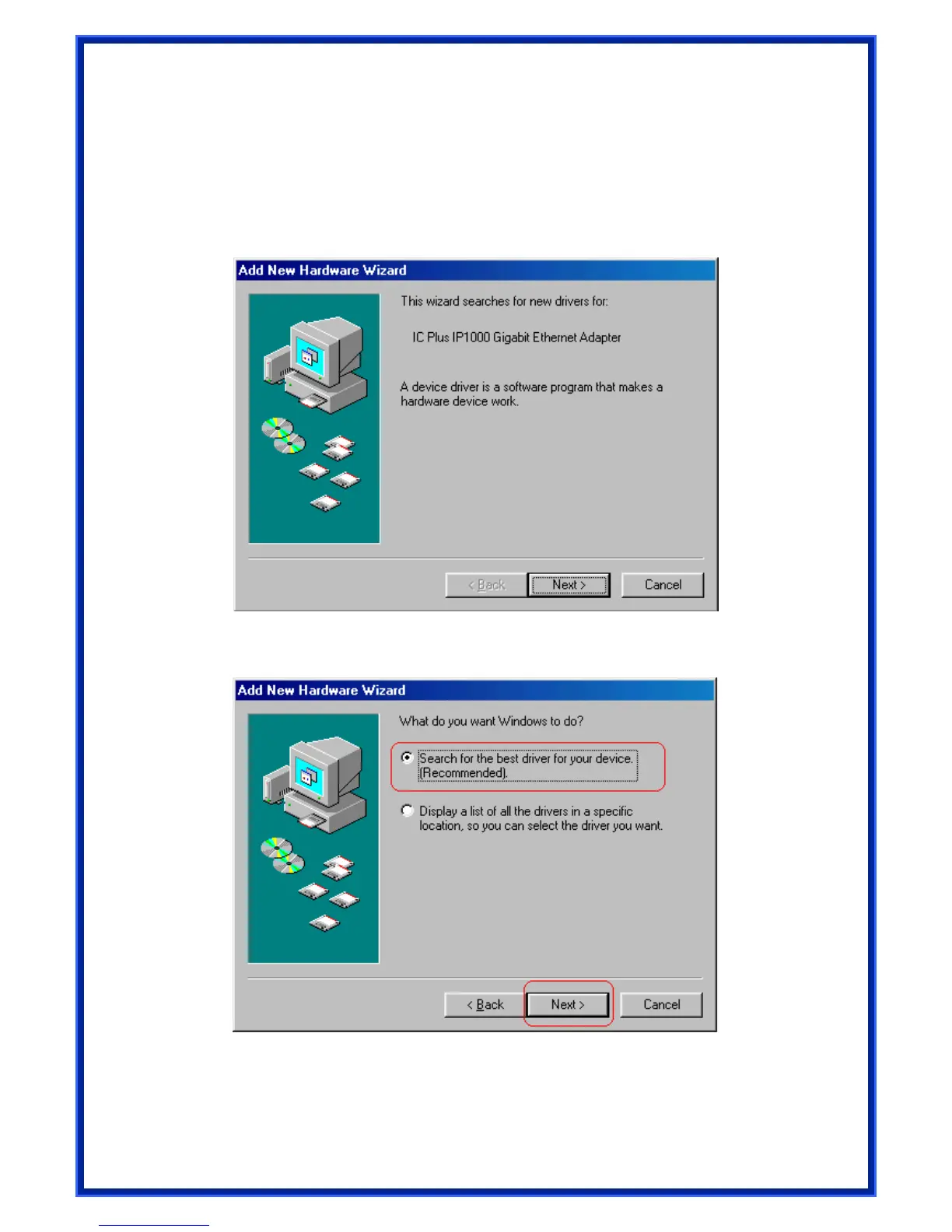

For <IC Plus > Gigabit PCI Adapters:
(a) After system boots up, operating system will detect the recently installed Gigabit PCI
adapter, window below will appear then click Next to continue.
(b) Click Next to continue,

Advantek Networks ALN-318C Specifications

General

Full duplex	Yes
Maximum data transfer rate	1000 Mbit/s
Dimensions (WxDxH)	120 x 16 x 28 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u., IEEE 802.3ab 1000BaseT, IEEE 802.3x Full Duplex Flow Control
Supported data transfer rates	10/100/1000
Connectivity technology	Wired
Compatible operating systems	Windows 95, 98, 98SE, ME, 2000, XP, Linux, NT3.x, NT4.x, NetWare3.x, NetWare4.x, NetWare5.x
Storage temperature (T-T)	-55 - 125 °C
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	50 g
