Advantek Networks ALN-318C User Manual

13

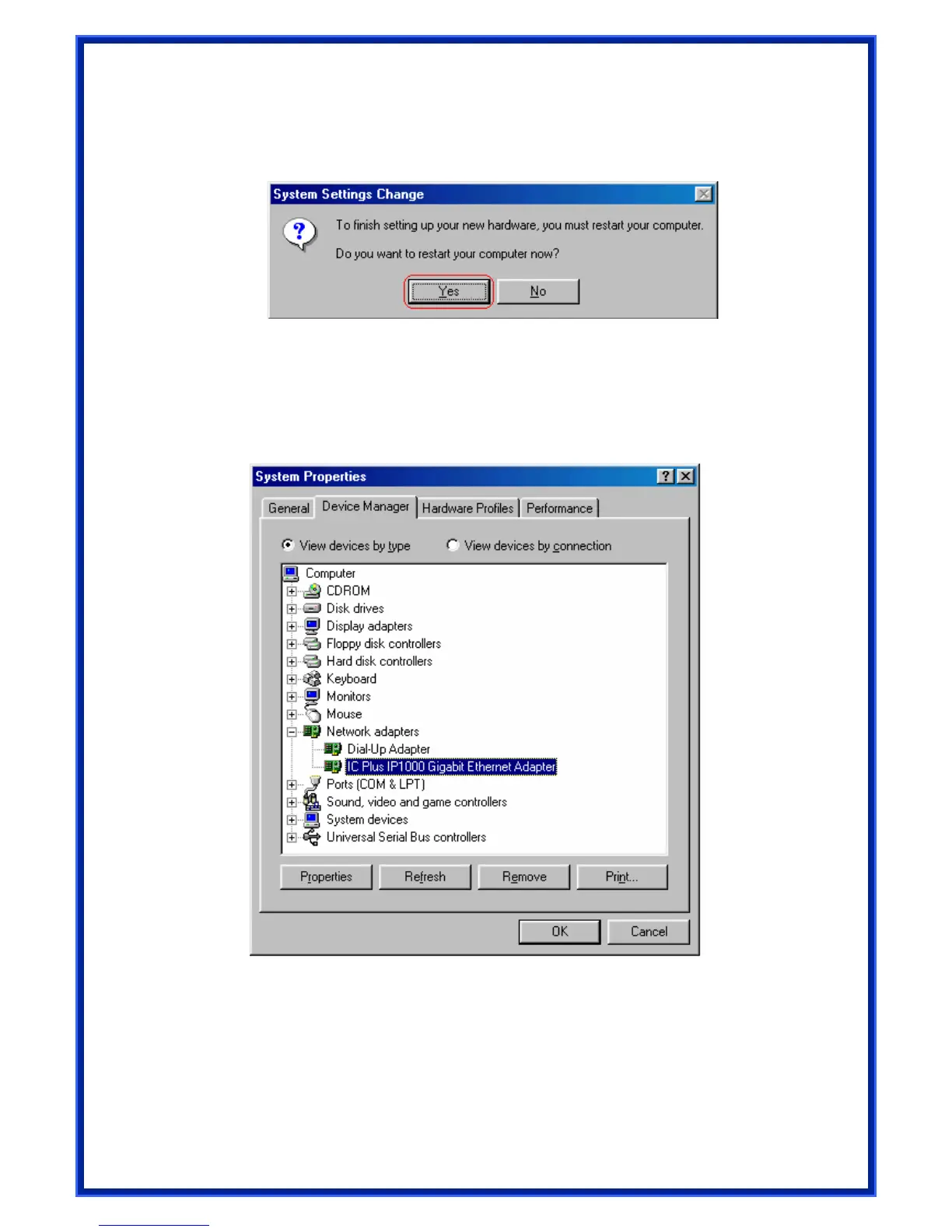

(h) To finish setting up your new device driver installation, operating system will show
message and ask to restart your computer. Click “Yes” to complete the System
Settings Change.
(i) To check if Gigabit PCI Adapter is properly installed:
i. Right-click “My Computer” on the Desktop
ii. Choose “Properties”
iii. Click “Device Manager…”

Advantek Networks ALN-318C Specifications

General

Full duplex	Yes
Maximum data transfer rate	1000 Mbit/s
Dimensions (WxDxH)	120 x 16 x 28 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u., IEEE 802.3ab 1000BaseT, IEEE 802.3x Full Duplex Flow Control
Supported data transfer rates	10/100/1000
Connectivity technology	Wired
Compatible operating systems	Windows 95, 98, 98SE, ME, 2000, XP, Linux, NT3.x, NT4.x, NetWare3.x, NetWare4.x, NetWare5.x
Storage temperature (T-T)	-55 - 125 °C
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	50 g
