Advent ADV38FR Installation Guide

1) Make the connections to the vehicle for the 12 pin wiring harness.
2) Connect power harness to vehicles electrical system by tapping into an accessory
hot line and a good ground.
3) Connect the 12 pin harness to the mating connector on the video monitor.
4) Verify all functions of the system before final mounting of the finished assembly.
A/V Source Definitions:
1. DVD - Built in DVD
2. USB - Built in USB
3. AV1
- Supplied 12 Pin Power / Signal Harness to 3 RCA Jack Pigtail is used for AV1
input.
4. FLO TV - FLO TV mode.
is used for
5. AUX - AUX input.
6. GAME - Built in Game
NOTE: If the FLO TV accessory is installed and an additional AV input is required, use the RCA
jacks on the FLO TV harness that are located by the FLO TV module.
*NOTE: If the optional relay box is P/N SIRSWB installed, it recommended that the antenna for
the FM modulator antenna wire is unplugged. See ADV38FR Wiring Diagram (Figure A) for
antenna location.
**NOTE: Extending the wireless antenna beyond its 12 inch length will cause the FM
modulator to exceed FCC limits of wireless transmission. When installing the unit position the
antenna for best reception.
***NOTE: See full installation instructions in the FLO TV Kit P/N ADVFRK1.
Plug in FLO TV harness access

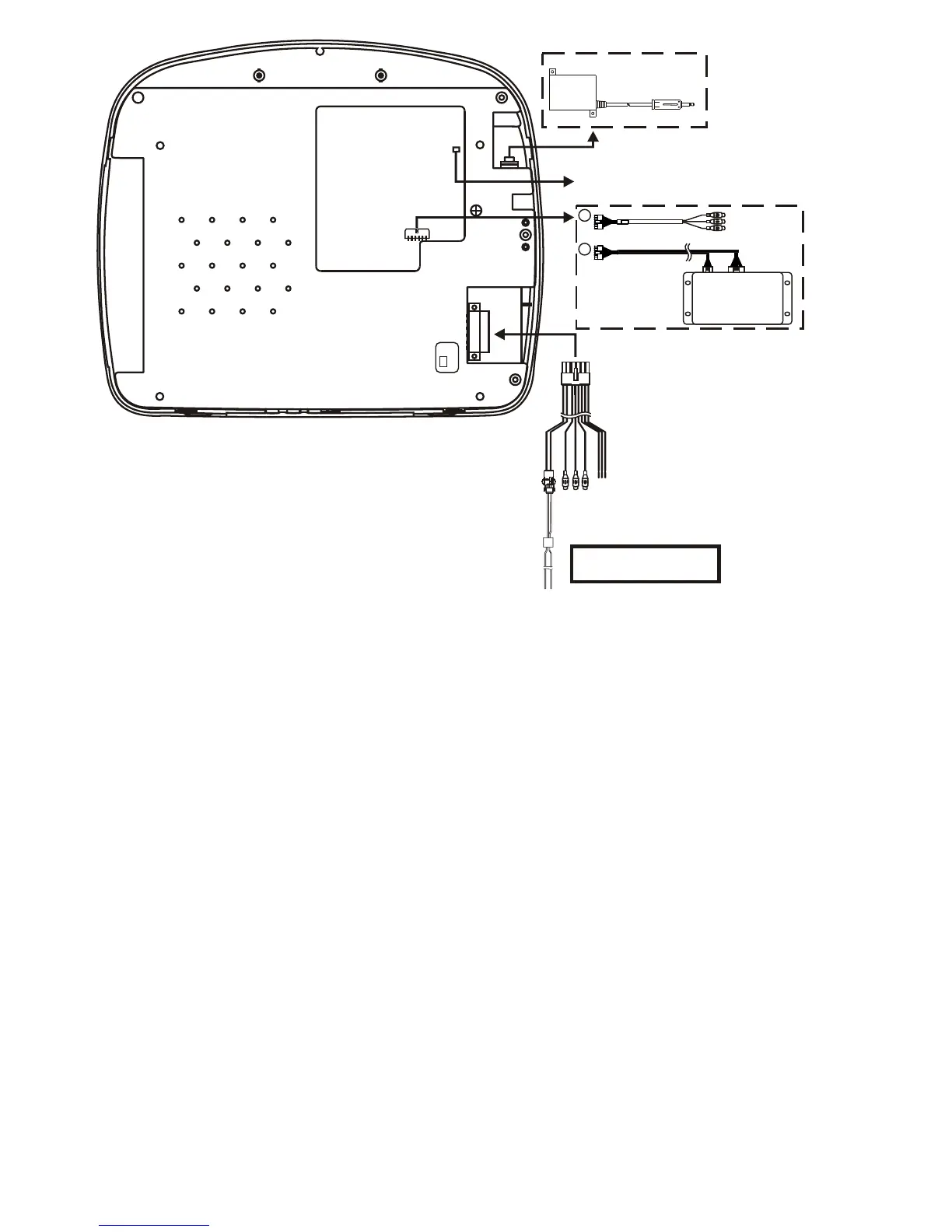

WIRING DIAGRAM
9
* Antenna for Wireless FM Mod.
** See Antenna Note
* Relay Box (OPTIONAL)
SIRSWB
Line Out-R (Red)
Line Out-L (White)
Line Out-V (Yellow)
Auxiliary Video Display
12 Pin Power /
Signal harness
2 Pin Power
Wire Harness
with choke
Figure A
Dome Light
Power source
12 Pin AV
Adapter Cable
A
B
FLO TV Harness
(OPTIONAL)
FLO TV Module
(OPTIONAL)
***
AV OUTPUT
