Advent AW810 User Manual

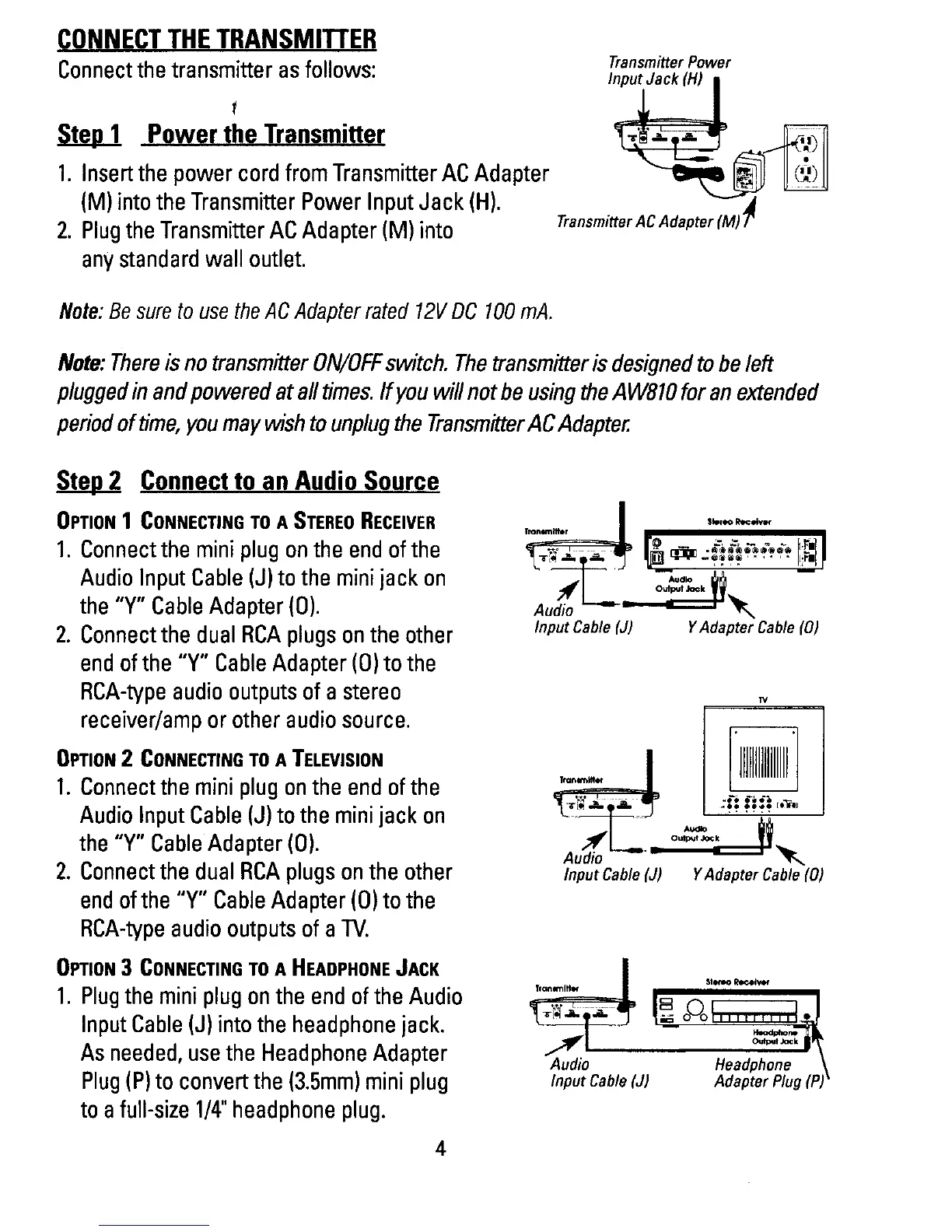

CONNECT THE TRANSMITTER
Connect the transmitter as follows:
Transmitter Power
InputJack
(H)
I
SW!..1 Power the Transmitter
1. Insert the power cord from Transmitter AC Adapter ~
(M) into the Transmitter Power Input Jack (H). ~
2. Plug the Transmitter AC Adapter (M) into TransmitterACAdapter(M)7'
any standard wall outlet.
---_ .. -
~)
•
(~l)
Note: Be sure to use the AC Adapter rated 12V DC 100 mA.
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left
plugged in and powered at all times. If you will not be using the AW810 for an extended
period of time, you may wish to unplug the Transmitter AC Adapter.
~_. _,_~_~_o_\ _I i_i1_~,,-gd~_i~ ..... ~ ;
Audio Headphone
Input
Cable (J) Adapter Plug (P)
IV
Q -- .i~iooi@I/f"'ljjoa I·E.l
II £PRII_~~~~," .... I:".J
... ~ ~
Output Jack "
YAdapter Cable (0)
IIIII11111111111
~~L . ... _o-_-_""c;,,=f!=f!U:
Input Cable (J) YAdapter Cable (0)
Tran.,..m.r
T,anllTlltler
"7
Aut
L
.
Input Cable (J)
Tronlmllter
Step 2 Connect to an Audio Source
OPTION 1 CONNECTING TO A STEREO RECEIVER
1. Connect the mini plug on the end of the
Audio Input Cable (J) to the mini jack on
the "Y" Cable Adapter (0).
2. Connect the dual RCA plugs on the other
end of the "Y" Cable Adapter (0) to the
RCA-type audio outputs of a stereo
receiver/amp or other audio source.
OPTION 2 CONNECTING TO A TELEVISION
1. Connect the mini plug on the end of the
Audio Input Cable (J) to the mini jack on
the "Y" Cable Adapter (0).
2. Connect the dual RCA plugs on the other
end of the "Y" Cable Adapter (0) to the
RCA-type audio outputs of alV.
OPTION 3 CONNECTING TO A HEADPHONE JACK
1. Plug the mini plug on the end of the Audio
Input Cable (J) into the headphone jack.
As needed, use the Headphone Adapter
Plug (P) to convert the (3.5mm) mini plug
to a full-size 1/4" headphone plug.
4
