AE RC10T5M - Rear Hub and CVA Build

11

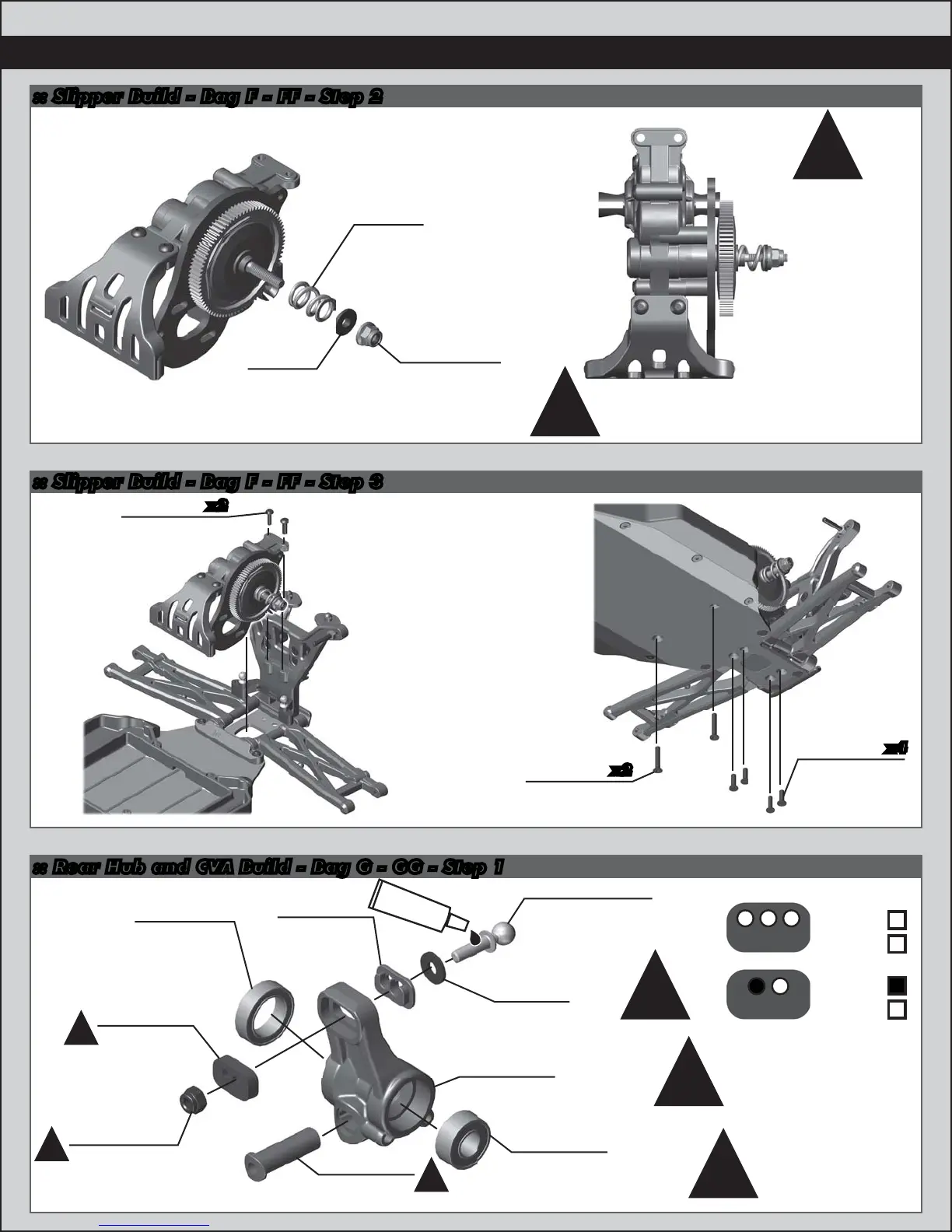

:: Rear Hub and CVA Build - Bag G - GG - Step 1
:: Slipper Build - Bag F - FF - Step 3
:: Slipper Build - Bag F - FF - Step 2
There are multiple
optional inserts
for the Rear Hub
Insert (0°, 0.5 °, 1 °).
0° is the standard
insert used.
!
!
Rear Hub Link Setting:
Up
Up
Down
Down
A
B
C
B
B
A
A
91476
6 x 13 x 5
Bearing
91414
Rear Hub
Insert (0°)
Build x2 (right and left side)
25616
10 x 15 x 4
Bearing
91414
Rear Hub
91416
Rear Hub
Link Nut
(B)
#1596
thread lock
91414
Rear Hub
Link Insert
(B)
25215
M3 Locknut,
black
91049
Heavy-duty
Ballstud, 10mm
89218
3 x 8mm
Washer
25211
M3 x 10mm
BHCS
x2
89209
M3 x 18mm
FHCS
25202
M3 x 10mm
FHCS
x2
x4
There should be 1mm
of thread showing when
Locknut is installed
See page 19 for gear
mesh, and slipper clutch
setting instructions!
!
!
9739
Slipper
Spring
91148
M4 Locknut,
with flange
and knurl
91423
Slipper
Spring
Adapter
Screw the ballstud
into the rear hub
link nut first. Then
secure ballstud
with M3 Locknut.
!
!
!
!
