AE RC10T5M - Chassis Brace Build

8
91049
Heavy-duty
Ballstud, 10mm
x2
x2
31286
FT Ballstud Washer,
aluminum
(one 1mm, one 2mm)
91520
Aluminum
Rear Ball
Stud Mount

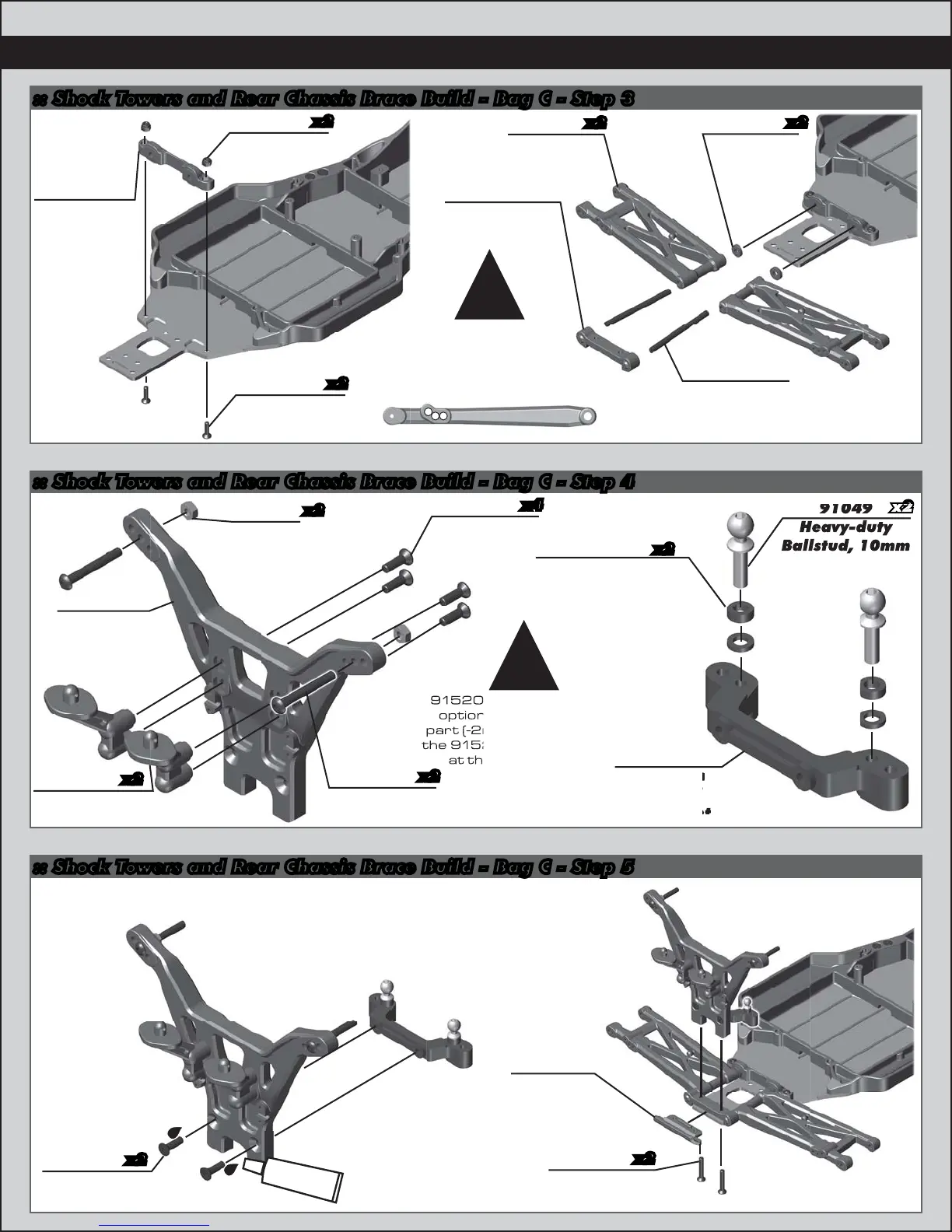

:: Shock Towers and Rear Chassis Brace Build - Bag C - Step 5
:: Shock Towers and Rear Chassis Brace Build - Bag C - Step 4
:: Shock Towers and Rear Chassis Brace Build - Bag C - Step 3
91520 has two mounting
options etched into the
part (-2mm, +2mm). Install
the 91520 Ball Stud Mount
at the -2mm setting.
!
71018
RC10B5M
Rear
Bumper
25202
M3 x 10mm
FHCS
89209
M3 x 18mm
FHCS
x2
x2
89204
M3 x 24mm
BHCS
25202
M3 x 10mm
FHCS
x2
x4
91477
M3 Nut
(black)
x2
71010
RC10T5M
Rear Arms
71010
RC10T5M
Rear Arm
Spacer
25202
M3 x 10mm
FHCS
91532
RC10B5M
Arm Mount,
C (3+1)
91532
RC10B5M
Arm Mount, D
x2
x2
91394
Hinge Pin
(rear, Inner)
25215
M3 Locknut,
Black
x2
x2
x2
71006
RC10T5M
Rear Shock
Tower
71018
T5M Rear
Body Mounts
#1596
thread lock
NOTE!!!
Rear Arm Orientation:
Shock mount C should be
pointing upwards once the
rear arms are installed!
!
AB
C
