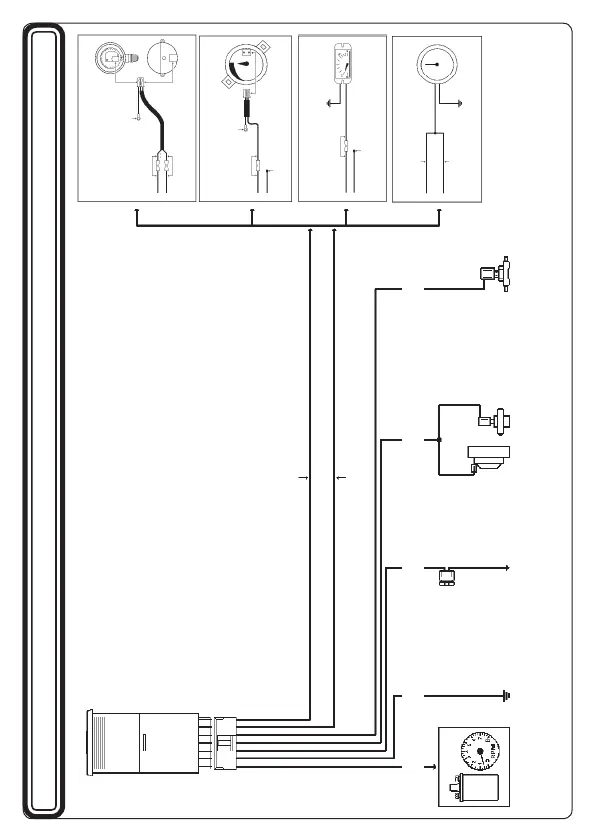

ASSEMBLY DIAGRAM
( ∗ ) CONNECT TO THE REVOLUTION COUNTER OR TO THE COIL NEGATIVE POLE
WHITE
BLACK RED BLUE YELLOW
GROUND + 12 VOLT
IGNITION
GAS SOLENOID VALVES
FUSE
MAX 5 A
GREEN
GROUND
A.E.B. STANDARD SENSOR
A.E.B. STANDARD SENSOR TYPE
1050 AND RESERVE TYPE 1051
BROWN ( ∗ )
GROUND
GROUND
GREEN
WHITE
WHITE
WHITE
GREEN DO NOT CONNECT
0÷4700 OHM STANDARD SENSOR
WHITE
GREEN
GROUND
0÷90 OHM STANDARD SENSOR
GREEN DO NOT CONNECT
GASOLINE
SOLENOID VALVE
