4.1.2 Info – LED
Green flashing, normal operating mode, everything OK.
During the day the LED flashes every 2 seconds and at night every 5 seconds.
Red flashing, warning: over-current, -temperature, -voltage. Controller has not yet switched off.
Continuously lit red lamp, controller has switched off, will switch on again automatically when fault has been
remedied and 1 minute has elapsed.
4.1.3 Charging Status – LED
The charging status LED changes colour from green to red depending on the charging status.
Normal mode: continuously lit
Warning deep discharge protection: rapid flashing (4 times a second)
Active deep discharge protection: slowly flashing (every2 seconds)
If the controller is set to voltage-controlled, the charging status LED displays the battery voltage:

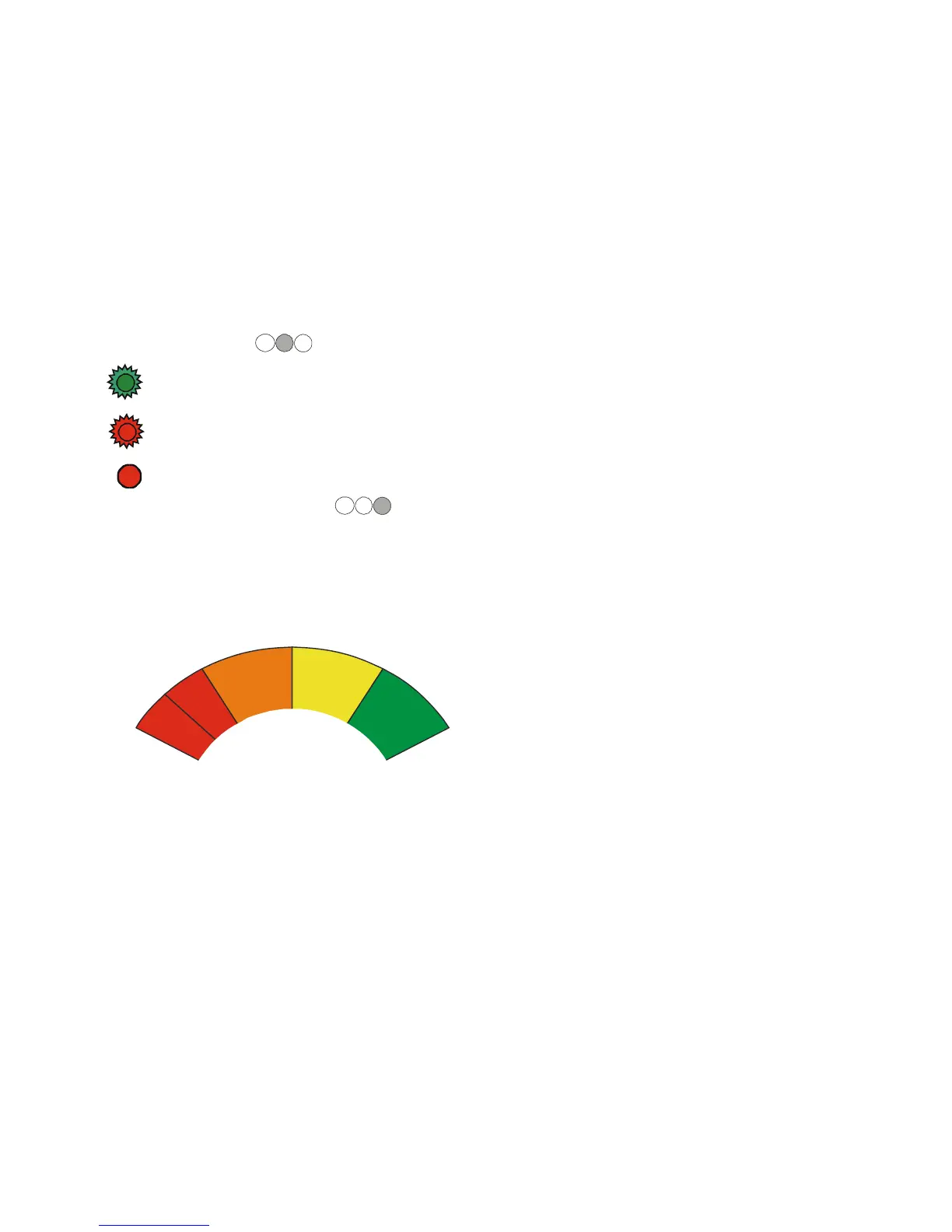

100%
80%
60
%
40%
30%
Full
Empty
Red: Battery voltage < 11.5V
Orange: Battery voltage > 11.5V
Yellow: Battery voltage > 12.1V
Green: Battery voltage > 12.7V
