2 Quadcopter Introduction
Adopting high-standard integrated design . If it is equiped with professional airborne photography equipment and a Wi-Fi Repeater, Quadcopter provides excellent
ight and aerial photography for outdoor or large indoor spaces. You only need to follow some simple installation steps before ight and taking aerial pictures. You
can control the Quadcopter through the Remote control, and can view ight video through mobile devices. Featuring simple and exible operating procedures,
Quadcopter has stable and reliable performance, and can be used for amateur or commercial photography.
Remote control Device Quadcopter External Components Operating Modes Quadcopter Internal Components
Remote control with 2 joysticks, multi-
channel
Gimbal
Power units (motor and blades)
Camera (optional)
GPS mode
Normal mode
Follow Me mode
Flight Control System
Wi-Fi module
Receiver
ESC (Electronic Speed Control)
Quadcopter
Propellers
Motor
3-Axials Gimbal
Camera

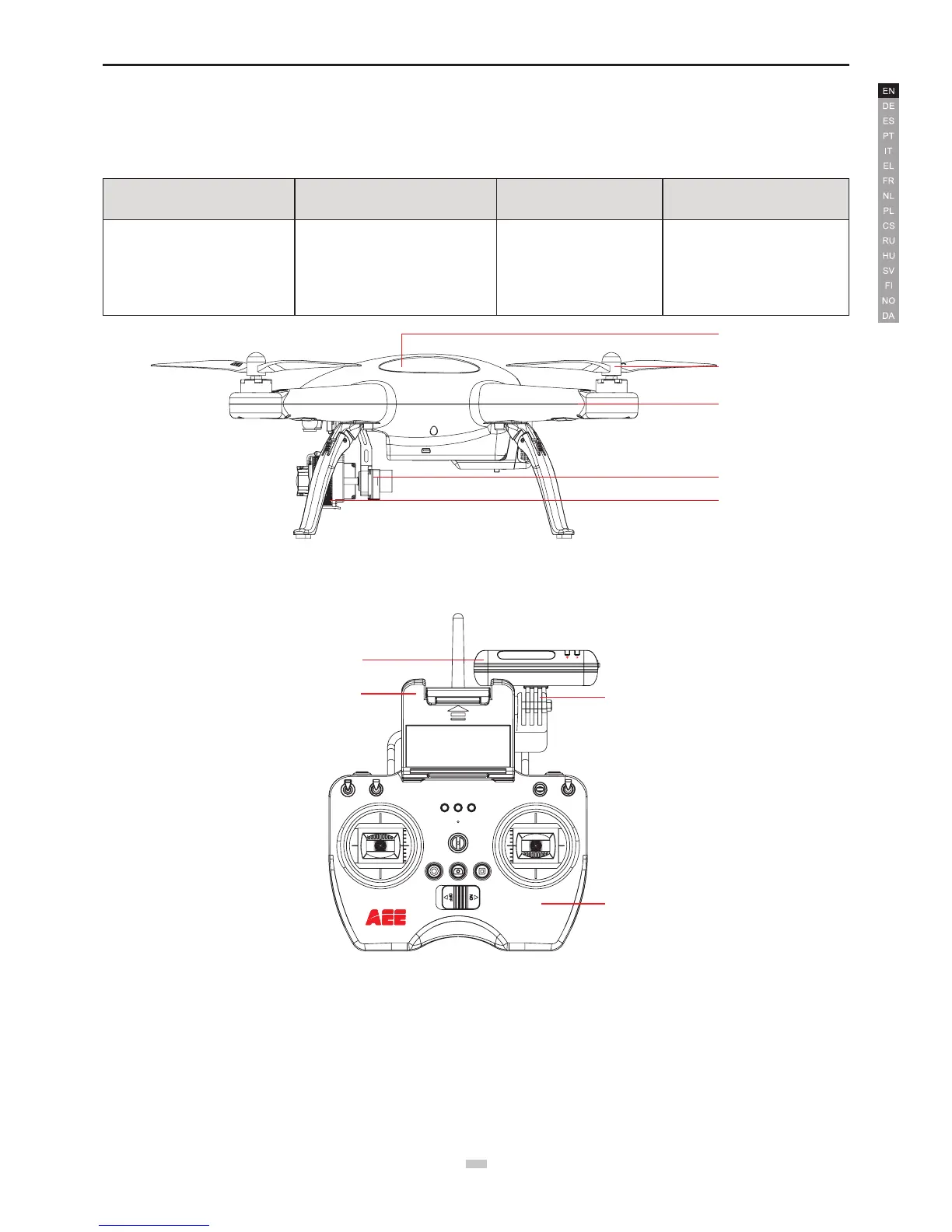

Figure 1
Repeater Base
Remote control
Wi-Fi Repeater
Smartphone Holder
Figure 2
Preparations before ight
Refer to the following for installing components and pre-ight quadcopter check.
1 Preparing Batteries
Ensure all device batteries are fully charged before operating Quadcopter.
