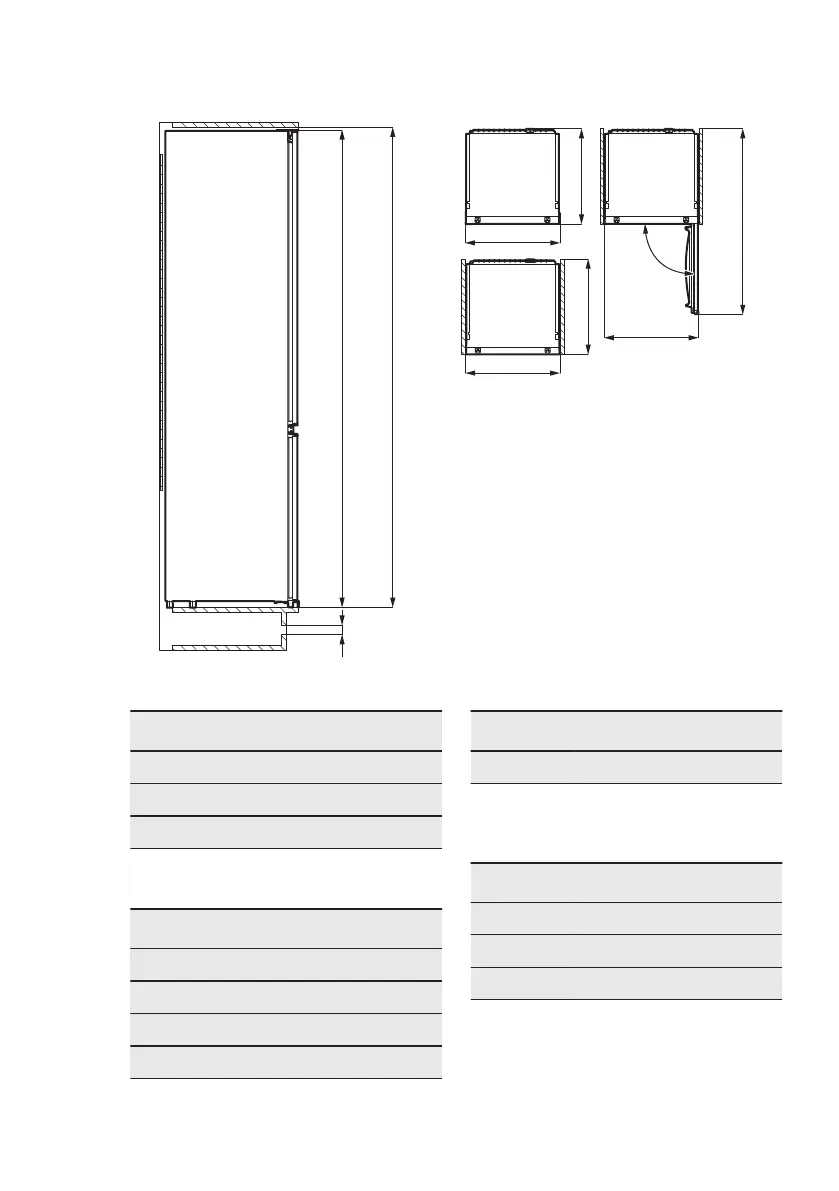

3.1 Dimensions
B
A
H1
W1
D1
W2
D2
W3
D3
90°
Overall dimensions
1)
H 1 mm 873
W 1 mm 548
D 1 mm 549
1)
the height, width and depth of the appliance
without the handle and feet
Space required in use
1)
H 2 (A+B) mm 916
W 2 mm 548
D 2 mm 551
A mm 880
Space required in use
1)
B mm 36
1)
the height, width and depth of the appliance
including the handle, plus the space necessary for
free circulation of the cooling air
Overall space required in use
1)
H 3 (A+B) mm 916
W 3 mm 548
D 3 mm 1071
1)
the height, width and depth of the appliance
including the handle, plus the space necessary for
free circulation of the cooling air, plus the space
necessary to allow door opening to the minimum
angle permitting removal of all internal equip-
ment
