78
Removing the hood from the wall unit
If, for technical reasons (extraction version/recirculation version
conversion) the extractor hood has to be removed from the wall unit,
proceed as follows:
• Fully withdraw the visor and remove the grease filter.
• Loosen the 4 or 6 mounting screws of the hood (wall unit mounting).

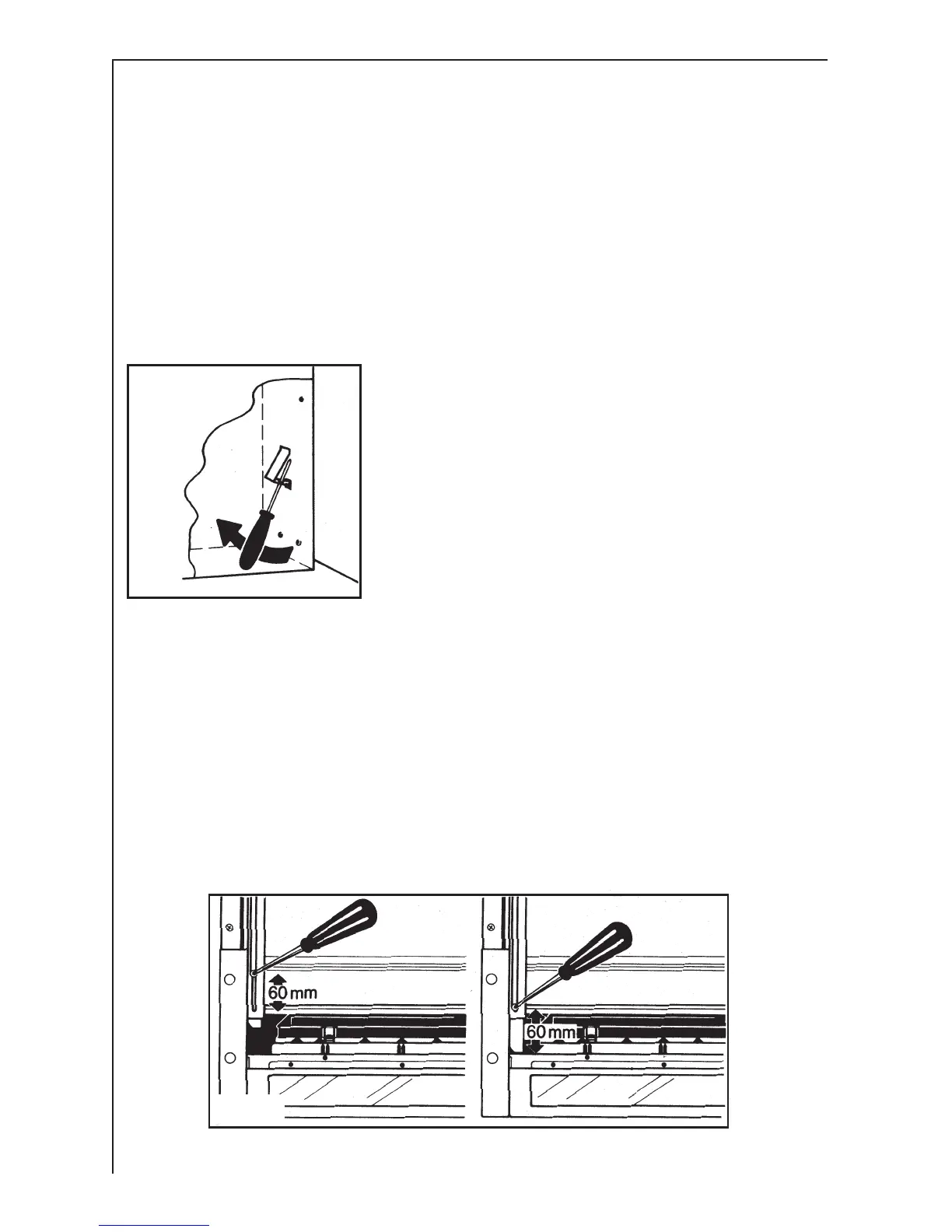

• To loosen both mounting claws (installation aids), place a max 3
mm dia. Phillips screw-driver in the spring opening and
simultaneously press the springs inwards (towards the appliance
housing). Fig. 14.
Important: Hold the hood firmly!
Adjusting the extractor part (E - Fig. 1) - Fig. 15
On wall units with a body depth of 275 mm to 335 mm, the visor depth
can be adjusted as follows:
• Remove both grease filters.
• Loosen the screws on both end-stop brackets and set the visor
depth (min. 275 mm, max. 335 mm).
• Refit the screws.
• Refit the grease filters.
Fig. 14
Fig. 15
