• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• Fully close the appliance door before
you connect the mains plug to the
mains socket.
• This appliance is supplied without a
main plug and a main cable.
• The hob connection socket is at the
top of the oven cabinet. The hob has
connection leads for the cooking
zones and the ground cable. The
leads have plug-in connectors. Plug
the connectors into the correct oven
socket to connect the hob to the oven.
The design of the plugs and sockets
prevents incorrect connections.
If the mains voltage is different,
rearrange the jumpers on the terminal
board (refer to the connection diagram
below). Connect the ground cable to the
terminal. After you connect the supply
cable to the terminal board, attach it with
a junction clamp.

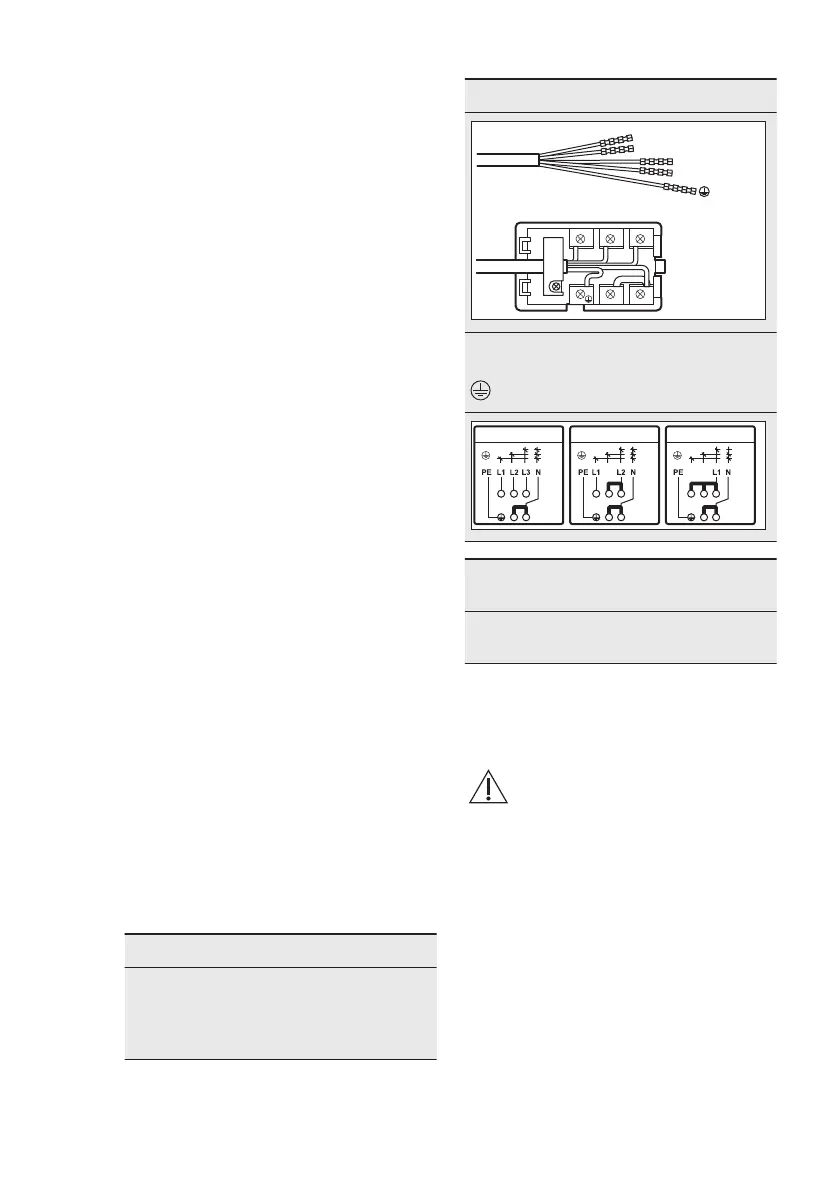

Connecting to terminal board
The appliance has a six-pole terminal
board. The jumpers (bridges) are set for
operation on a 400 V three-phase with a
neutral wire.
Connecting to terminal board
1 = 45 mm
2 = 45 mm
3 = 60 mm
4 = 60 mm
= 70 mm
1
2
3
4
L 1 – 2 – 3 = phase cables
N 4 = neutral cable
= earth cable
35 66187 39
230V ~
230V ~
1 2 3
5 4
2N ~
230V ~
1 2 3
5 4
3N ~
230V ~
1 2 3
5 4
Cable types applicable for installation
or replacement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-
F, H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the
total power on the rating plate.
2.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
