AEG L7FC8432BI User Manual

16-22 mm
22±1,5 mm
449
mm
595-598 mm
Ø 35 mm
12,5 - 14 mm

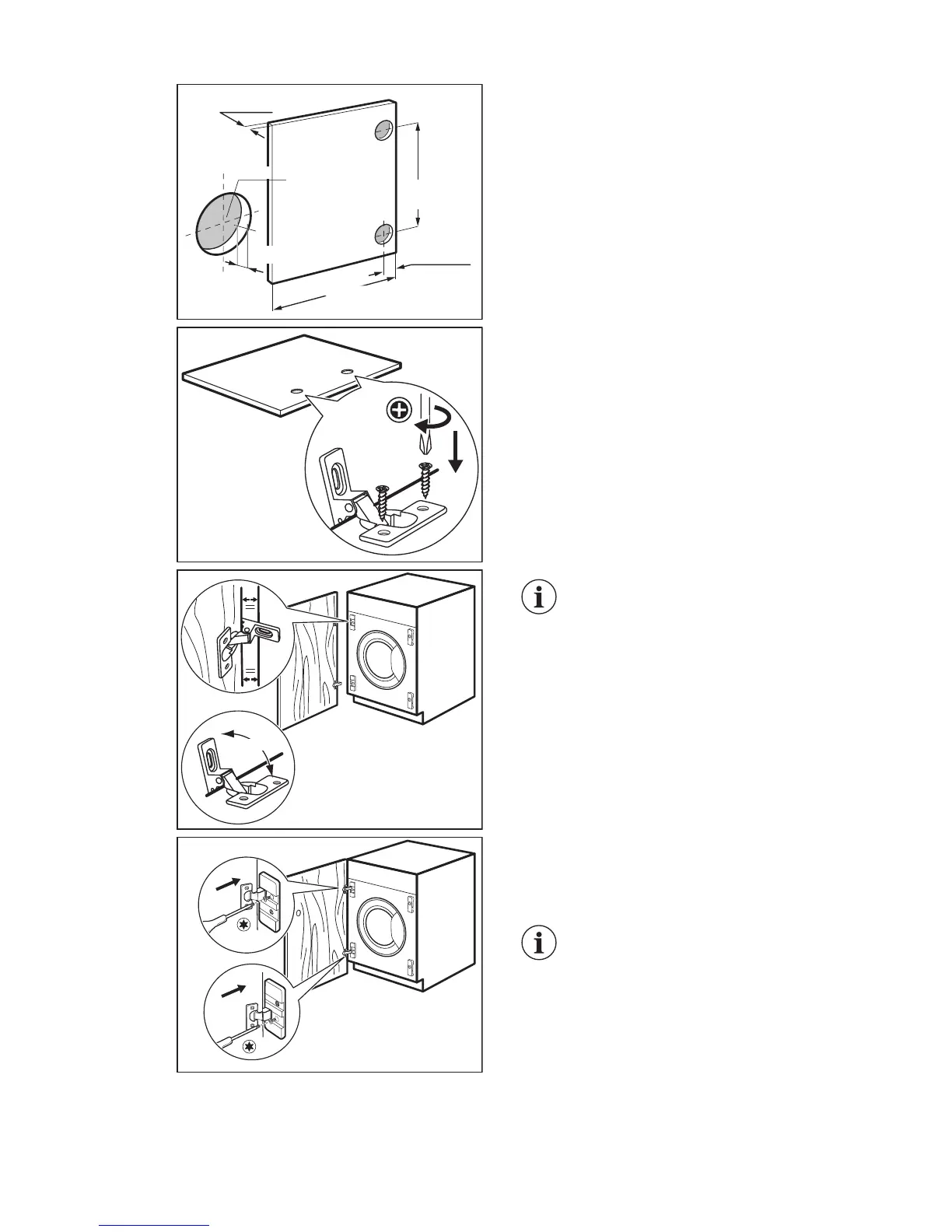

Set the position of the lower hole respecting
dimensions and distances shown in the
drawing (449 mm).
Countersink the holes.
A
Hinges
To mount the hinges it is necessary to drill
two holes (dia. 35 mm, depth 12.5 - 14 mm
depending on the depth of cupboard door)
on the inner side of the door.
The hinges will be fixed to the door by
means of the four supplied screws A.
max. 105°
To align the door perfectly,
make sure that the edge of
cupboard door is parallel with
the appliance edge and to
respect the proper opening
angle (max. 105 °C).
Mounting the door
Fix the hinges to the hinge supports on the
appliance by means of the two supplied
screws B.
The hinges can be adjusted to
compensate for possible
uneven thickness of the door.
ENGLISH 15

AEG L7FC8432BI Specifications

General

Door color	Stainless steel
Door hinge	Left
Cord length	1.5 m
Drum volume	52 L
Control type	Rotary
Loading type	Front-load
Product color	White
Built-in display	Yes
Custom panel-ready	No
Outlet hose length	0.145 m
Appliance placement	Freestanding
Dispenser tray type	3-way
Drum capacity	8 kg
Cycle time (max)	295 min
Residual moisture	52 %
Spin-drying class	B
Maximum spin speed	1400 RPM
Noise level (spin)	68 dB
Noise level (wash)	46 dB
Number of washing programs	-
Cycle time (quick washing program)	20 min
Current	13 A
Connected load	2000 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Water consumption per cycle	47 L
Energy consumption washing per cycle	0.82 kWh

Weight and Dimensions

Depth	554 mm
Width	596 mm
Height	819 mm
