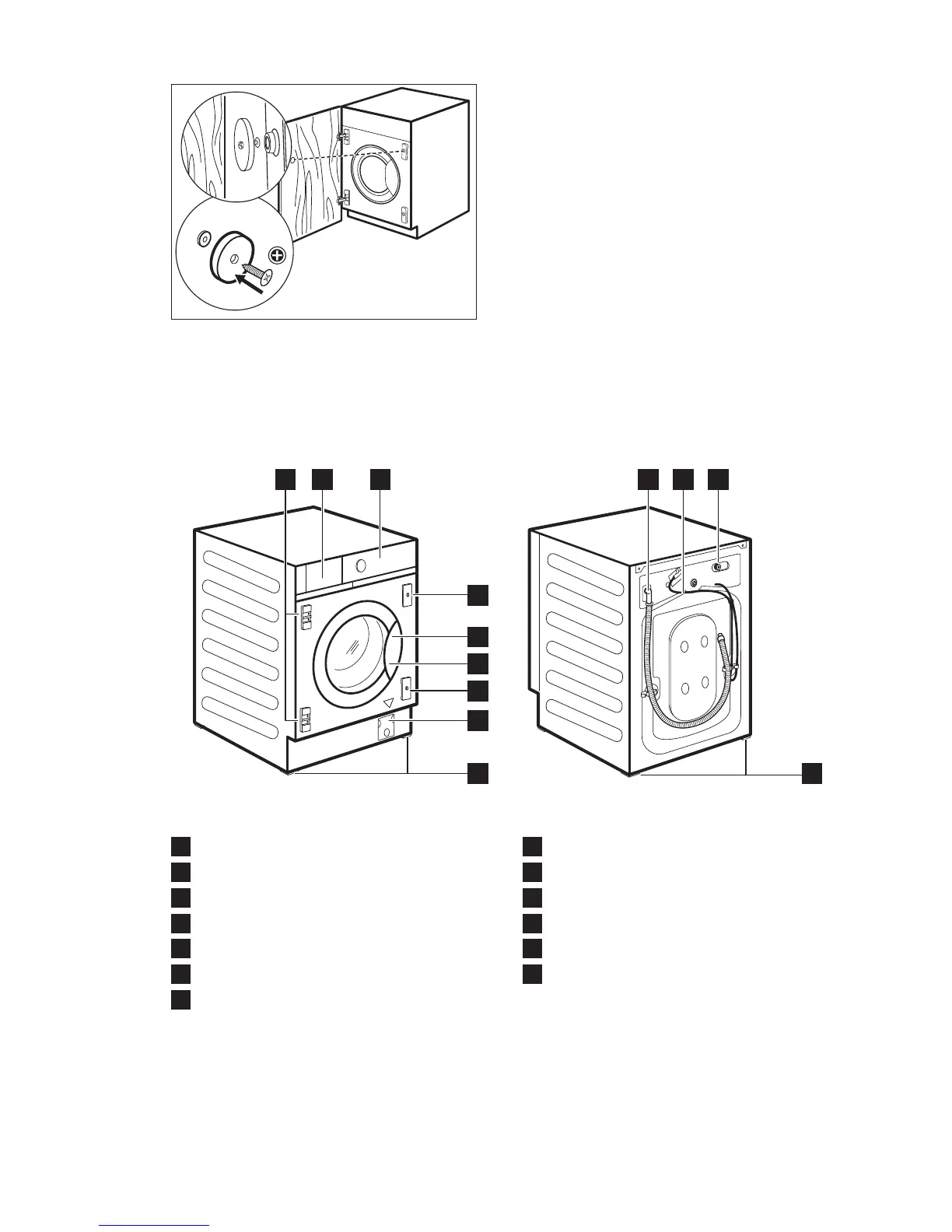

Counter-magnet
The appliance is pre set for a magnetic
closure.
For a correct closure:
1. Position the screw C and the counter-
magnet D on the magnetic plate N. Lean
the cupboard door against the screw
until it leaves a mark.
2. Open the cupboard door and screw the
counter-magnet D (steel disk + rubber
ring E) with the screw C in the inner side
of the cupboard door, where the screw
left the mark as described in the first
step.
4. PRODUCT DESCRIPTION
4.1 Appliance overview
10
11 12
13
21 3
5
4
7
6
8
9
1
Hinge supports
2
Detergent dispenser
3
Control panel
4
Magnetic plate
5
Door handle
6
Rating plate
7
Plate with rubber beater
8
Drain pump filter
9
Front feet for levelling the appliance
10
Drain hose
11
Mains cable
12
Inlet hose connection
13
Back feet for levelling the appliance
