AEG L7FC8432BI User Manual

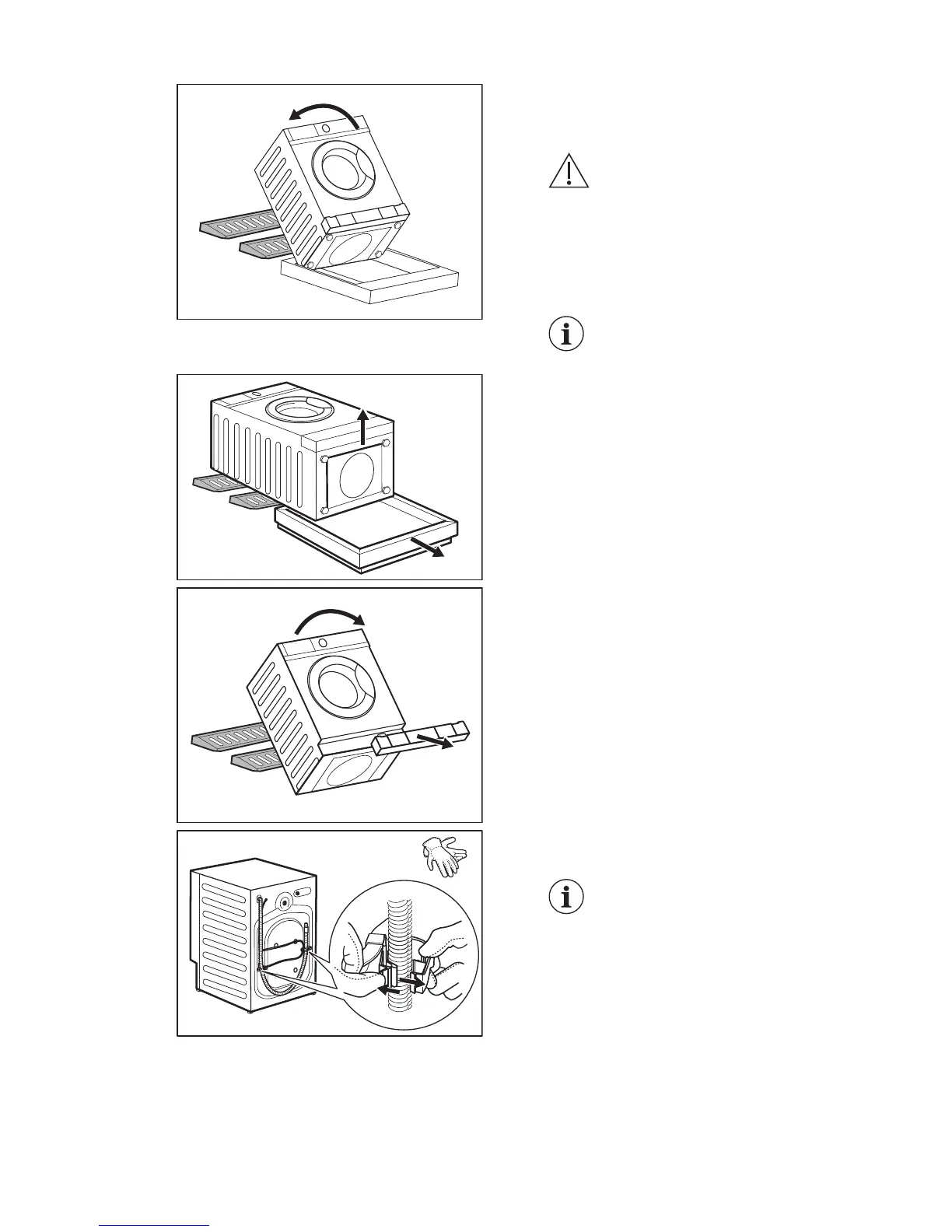

1. Put two polystyrene packaging
elements on the floor under the
appliance.
WARNING!
It is strongly
recommended that this
action is carries out by two
persons.
2. Carefully put the appliance down on its
rear side.
Make sure not to damage
the hoses.
1
2
3. Remove the polystyrene protection
from the bottom.
1
2
4. Return the appliance in vertical
position and remove the socket
polystyrene protection.
5. Remove the power supply cable and
the drain hose from the hose holders.
It is possible to see water
flowing from the drain
hose. This is due to the
testing with water of the
appliance in factory.
ENGLISH 7

AEG L7FC8432BI Specifications

General

Door color	Stainless steel
Door hinge	Left
Cord length	1.5 m
Drum volume	52 L
Control type	Rotary
Loading type	Front-load
Product color	White
Built-in display	Yes
Custom panel-ready	No
Outlet hose length	0.145 m
Appliance placement	Freestanding
Dispenser tray type	3-way
Drum capacity	8 kg
Cycle time (max)	295 min
Residual moisture	52 %
Spin-drying class	B
Maximum spin speed	1400 RPM
Noise level (spin)	68 dB
Noise level (wash)	46 dB
Number of washing programs	-
Cycle time (quick washing program)	20 min
Current	13 A
Connected load	2000 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Water consumption per cycle	47 L
Energy consumption washing per cycle	0.82 kWh

Weight and Dimensions

Depth	554 mm
Width	596 mm
Height	819 mm
