00000000
00A
Mod.
xxxxxxxxx
000V ~ 00Hz 0000 W
910000000
00
A
B
C
Prod.No.
D

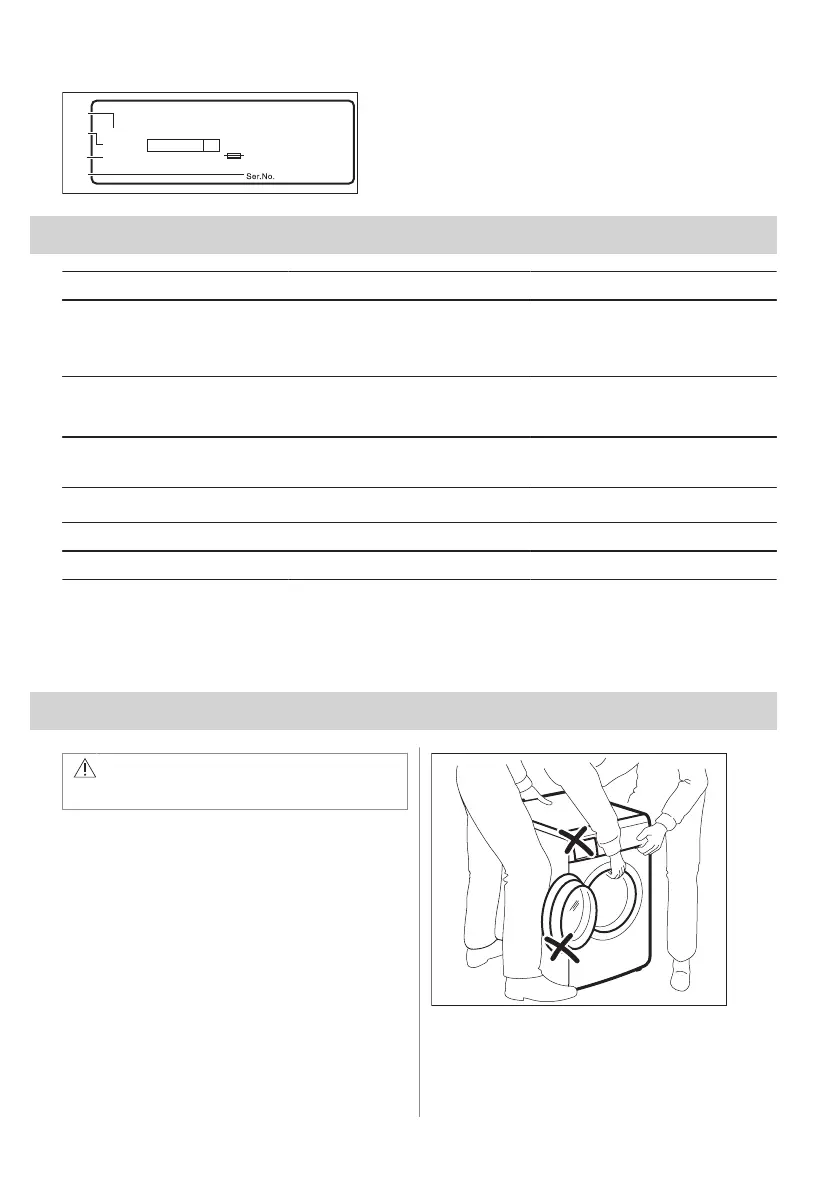

The rating plate reports the model name (A) ,
product number (B), electrical ratings (C) and serial
number (D).
4. TECHNICAL DATA
Dimension Width/ Height/ Total depth 50 cm /67 cm /55 cm
Electrical connection Voltage
Overall power
Fuse
Frequency
230-240 V
1600 W
13 A
50 Hz
Level of protection against ingress of solid particles and moisture ensured
by the protective cover, except where the low voltage equipment has no
protection against moisture
IPX4
Water supply pressure
1)
Minimum
Maximum
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Water supply
2)
Cold water
Maximum Load Cotton 3 kg
Spin Speed Maximum spin speed 1251 rpm
1)
The appliance works correctly if the water pressure is not lower than 0.05 MPa (0.5 bar). If you cannot connect
the water inlet hose to the cold water tap of the primary hydraulic system, connect it to your domestic cold water
storage system. Make sure not to exceed a distance of 5.02 m (16.5 ft) between the appliance inlet hose and the
bottom of the water storage tank.
2)
Connect the water inlet hose to a water tap with a 3/4'' thread.
5. INSTALLATION
WARNING!
Refer to Safety chapters.
5.1 Lifting the machine
Incorrect methods of lifting can damage the
appliance. Open the door and take hold of the
top inside of the door opening. You can also
lift the machine by gripping the rear overhang
of the top.
ENGLISH 7
