00000000
00A
Mod.
xxxxxxxxx
000V ~ 00Hz 0000 W
910000000
00
A
B
C
Prod.No.
D

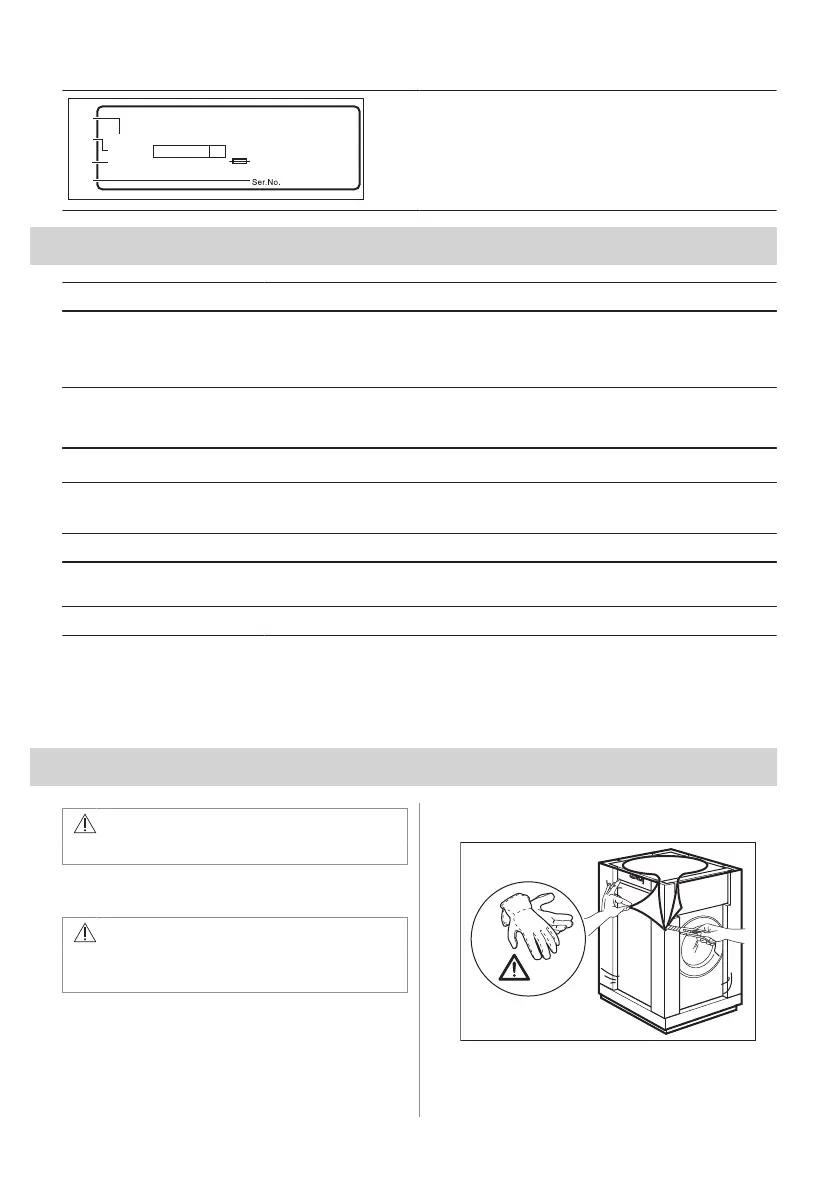

The rating plate reports the model name (A), product
number (B), electrical ratings (C) and serial number
(D).
4. TECHNICAL DATA
Dimension Width/ Height/ Total depth 59.7 cm /84.7 cm /64.2 cm
Electrical connection Voltage
Overall power
Fuse
Frequency
230-240 V
2200 W
13 A
50 Hz
Level of protection against ingress of solid particles and moisture
ensured by the protective cover, except where the low voltage
equipment has no protection against moisture
IPX4
Water supply
1)
Cold water
Water supply pressure
2)
Minimum
Maximum
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Maximum wash load Cotton 9 kg
Maximum dry load Cotton
Synthetics
6.0 kg
4.0 kg
Spin Speed Maximum spin speed 1551 rpm
1)
Connect the water inlet hose to a water tap with a 3/4'' thread.
2)
The appliance works correctly if the water pressure is not lower than 0.05 MPa (0.5 bar). If you cannot connect
the water inlet hose to the cold water tap of the primary hydraulic system, connect it to your domestic cold water
storage system. Make sure not to exceed a distance of 5.02 m (16.5 ft) between the appliance inlet hose and the
bottom of the water storage tank.
5. INSTALLATION
WARNING!
Refer to Safety chapters.
5.1 Unpacking
WARNING!
Remove all the packaging and the transit
bolts before installing the appliance.
1. Use the gloves. Remove the external film.
If necessary, use a cutter.
8 ENGLISH
