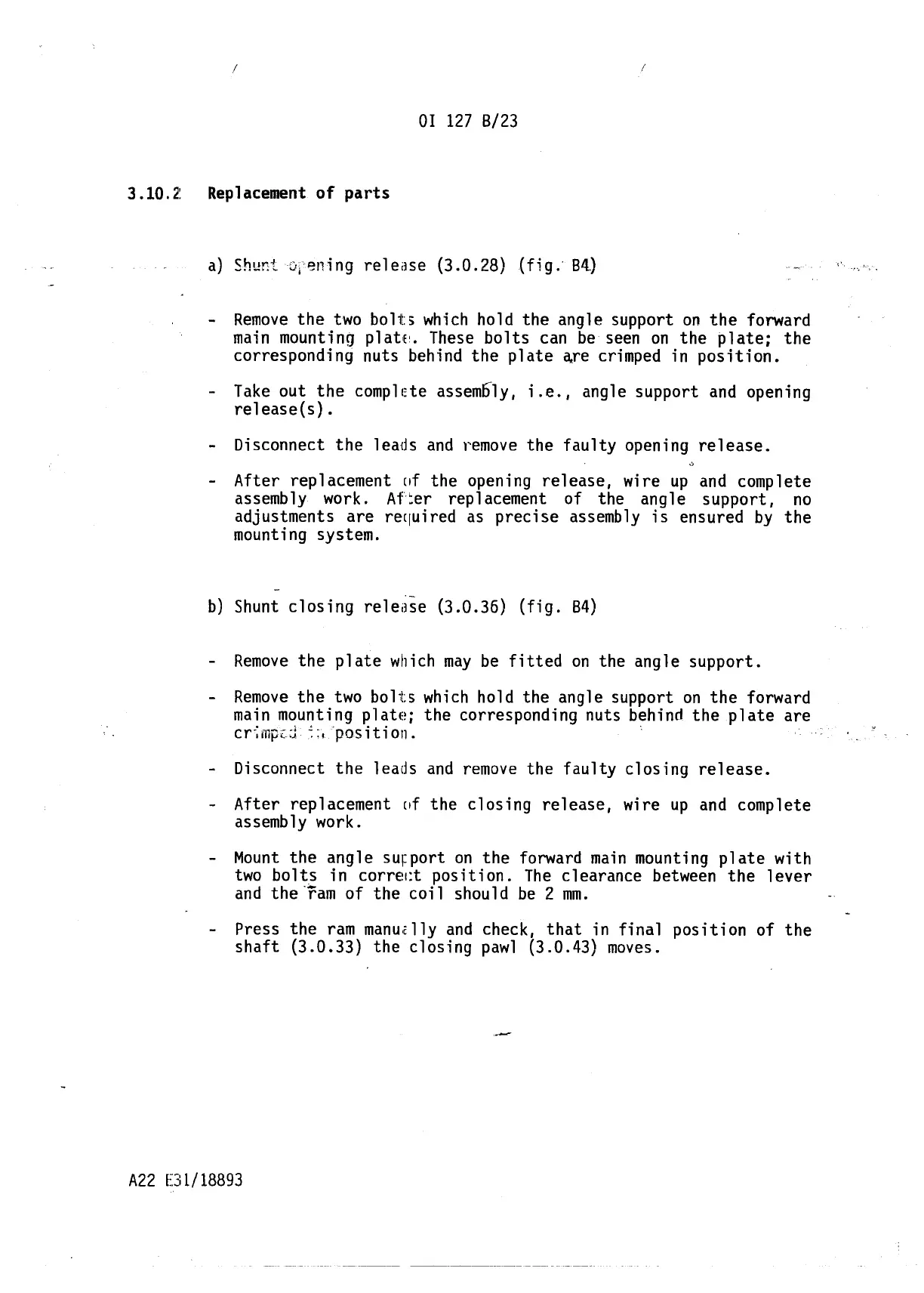

Remove the two bolt5 which hold the angle support on the forward
main mounting plat'E~.These bolts can be seen on the plate; the
corresponding nuts behind the plate ~re crimped in position.
- Take out the complEte assem6ly, i.e., angle support and opening
release(s).
- Disconnect the leads and remove the faulty opening release.
- After rep
1
acement (Ifthe open ing release, wire up and comp
1
ete
assembly work. Af:er replacement of the angle support, no
adjustments are requi red as preci se assembly is ensured by the
mounting system.
b) Shunt closing rele~ie
(3.0.36)
(fig.
84)
- Remove the plate which may be fitted on the angle support.
- Remove the two bolts which hold the angle support on the forward
main mounting plate; the corresponding nuts behind the plate are
Cr-;il1F.d~;!-position. -
- Disconnect the leads and remove the faulty closing release.
- After replacement (Ifthe c
1
os ing release, wire up and complete
assembly work.
- Mount the angle sUl=port on the forward main mounting plate with
two bo
1
ts incorrect pos ition. The c
1
earanee between the
1
ever
and the-ram of the coil should be 2 mm.
- Press the ram manuilly and check, that in final position of the
shaft
(3.0.33)
the closing pawl
(3.0.43)
moves.
