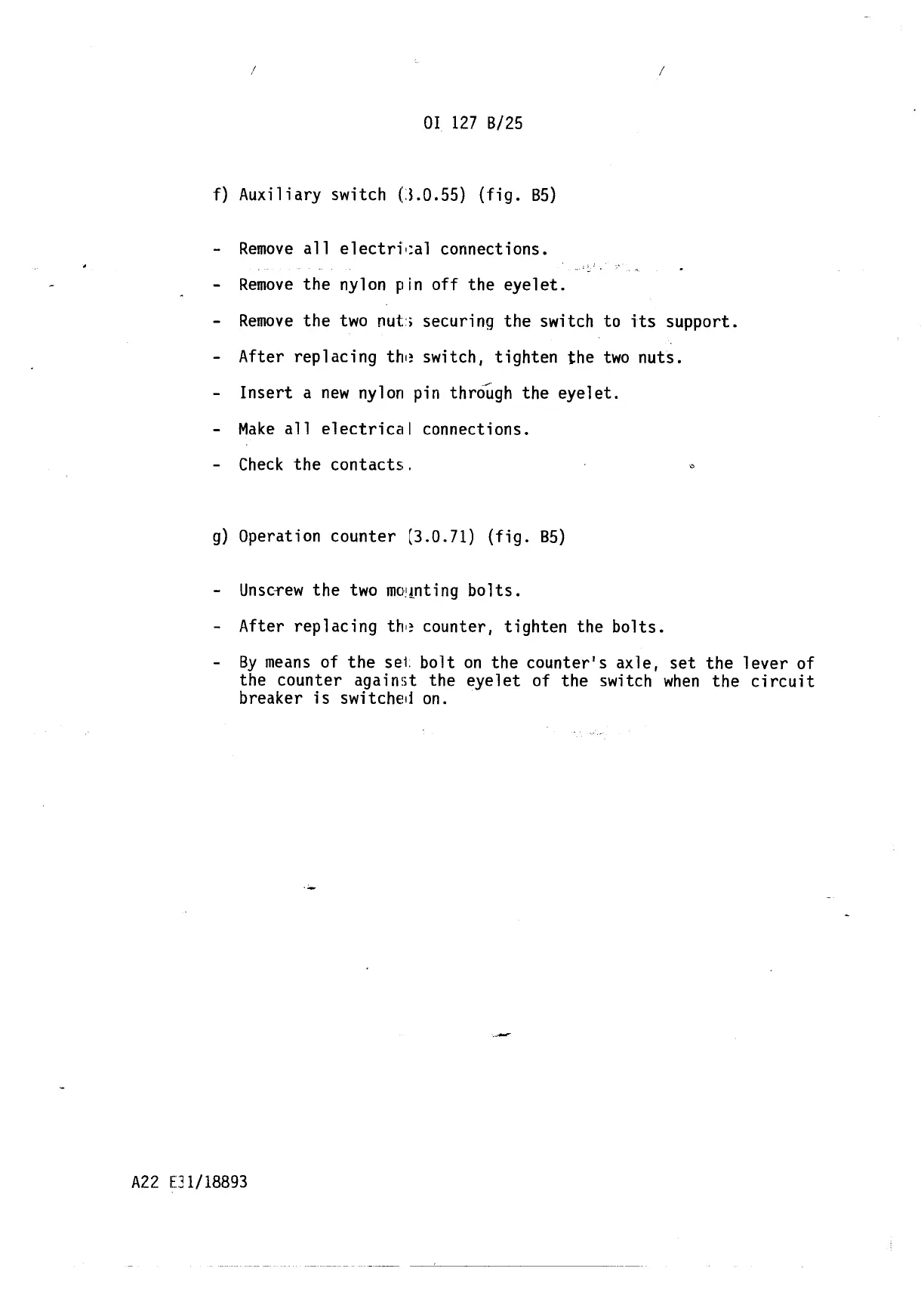

- Remove the nylon pin off the eyelet.
- Remove the two nut:; securi ng the switch to its support.
- After replacing ttli! switch, tighten the two nuts.
Insert a new nylon pin through the eyelet.
- Unsc-rewthe two mOI!nting bolts.
- After rep 1aci ng th,! counter, tighten the bolts.
- By means of the set bolt on the counter's axle, set the lever of
the counter against the eyelet of the switch when the circuit
breaker is switched on.
