AEM INFINITY ECU - IACV Modification Details; Terminal Removal and Insulation; Reinstalling the IACV Connector

RevC 07/15/13 Page 34

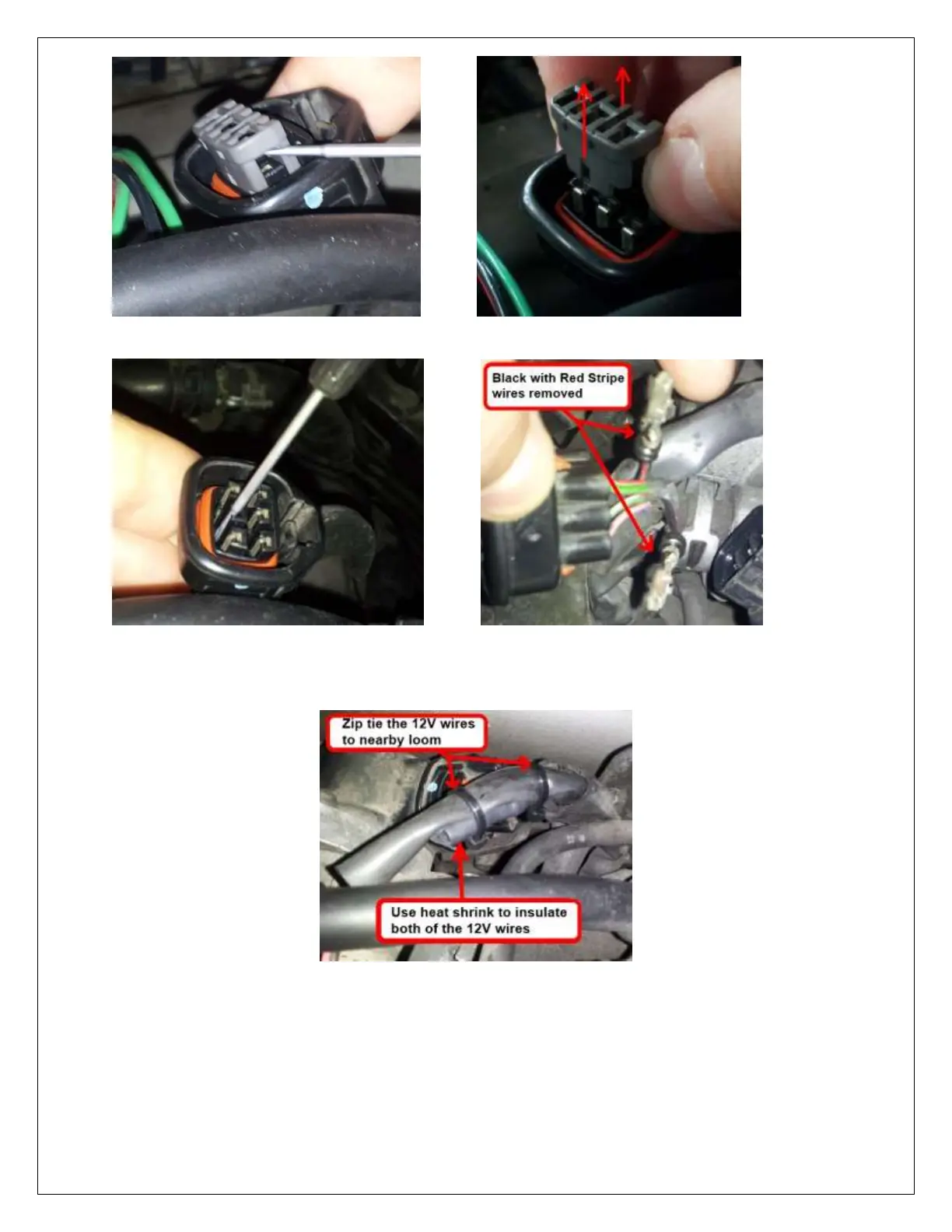

Step 2: Use a small flat-blade screwdriver/pick to move the terminal locks while
pulling the Black-Red wires out from the backside of the connector.
Step 3: Use heat shrink to insulate both 12V wires and then zip tie the insulated
wires to a nearby loom.
Step 4: Reinstall the retainer, and then plug the connector back into the IACV.
