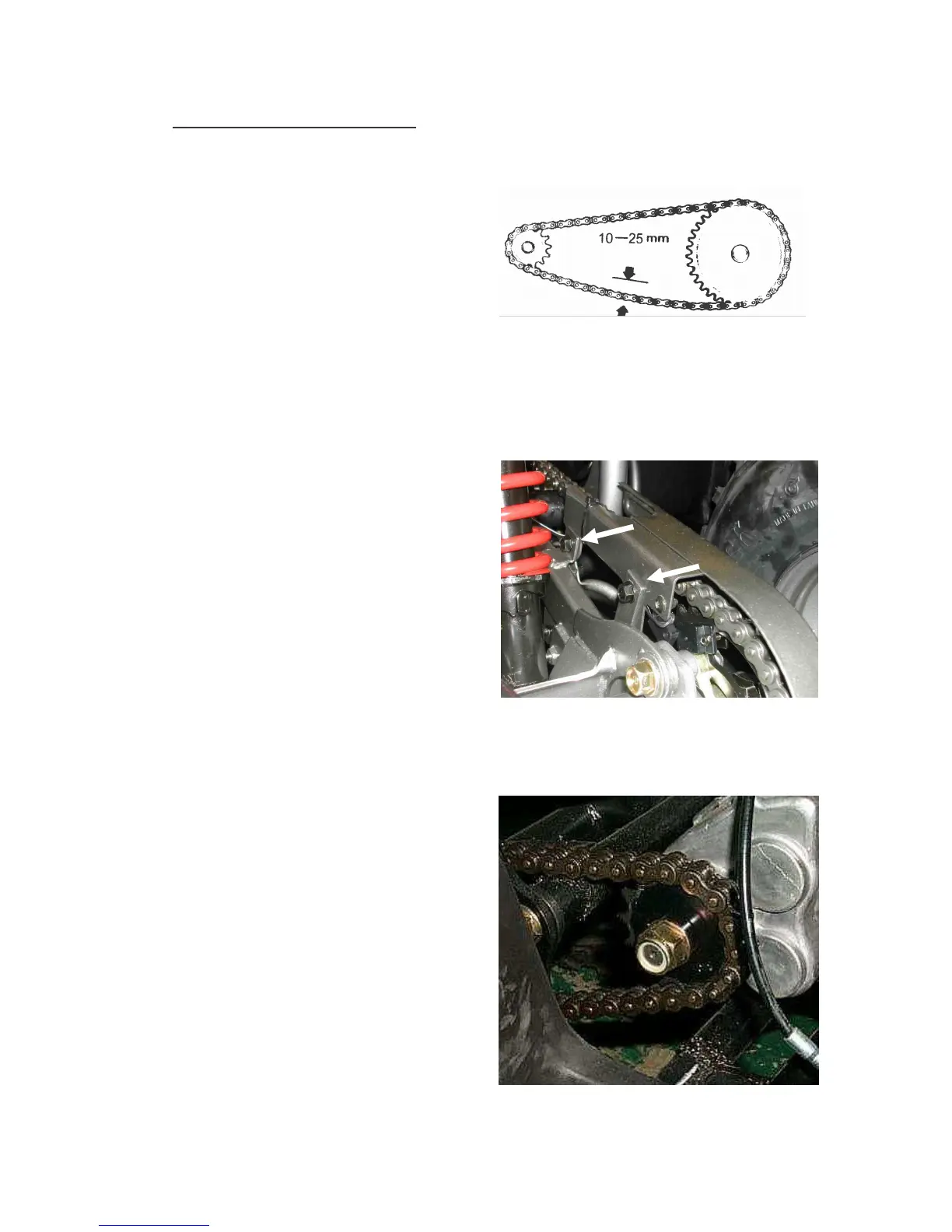

2.9 DRIVE CHAIN ADJUSTMENT
Stop ATV and shift transmission into neutral.
Inspect the chain slack midway between the
sprockets. The standard is 10-25 mm (5/8-1
inch).
If needed remove the chain protective cover and
adjust the chain slack.
Loosen the axle holder lock nut then adjust the
drive chain slack by turning the adjusting nut.
Tighten the axle holder lock nut.
Torque = 90N.m (65 Ft. lbs)
When the drive chain becomes very dirty, it
should be removed, cleaned and lubricated with
the specified lubricant.
Clean the drive chain with kerosene and wipe it
dry.
Inspect the drive chain for possible wear or
damage.
Replace the chain, if it is worn excessively or
damaged.
Inspect the sprocket teeth, if it has excessive
wear or damage, replace if needed.
Use a commercial chain lubricant to lubricate
the drive chain, replace and adjust the slack as
described above.
