Also check that the bearing outer race fits tightly
in the axle holder. Replace if necessary.
NOTE: Replace the bearings in pairs.
Installation
Add grease to the dust seal lips and install dust
seals. Assemble the rear axle and the driven
sprocket.

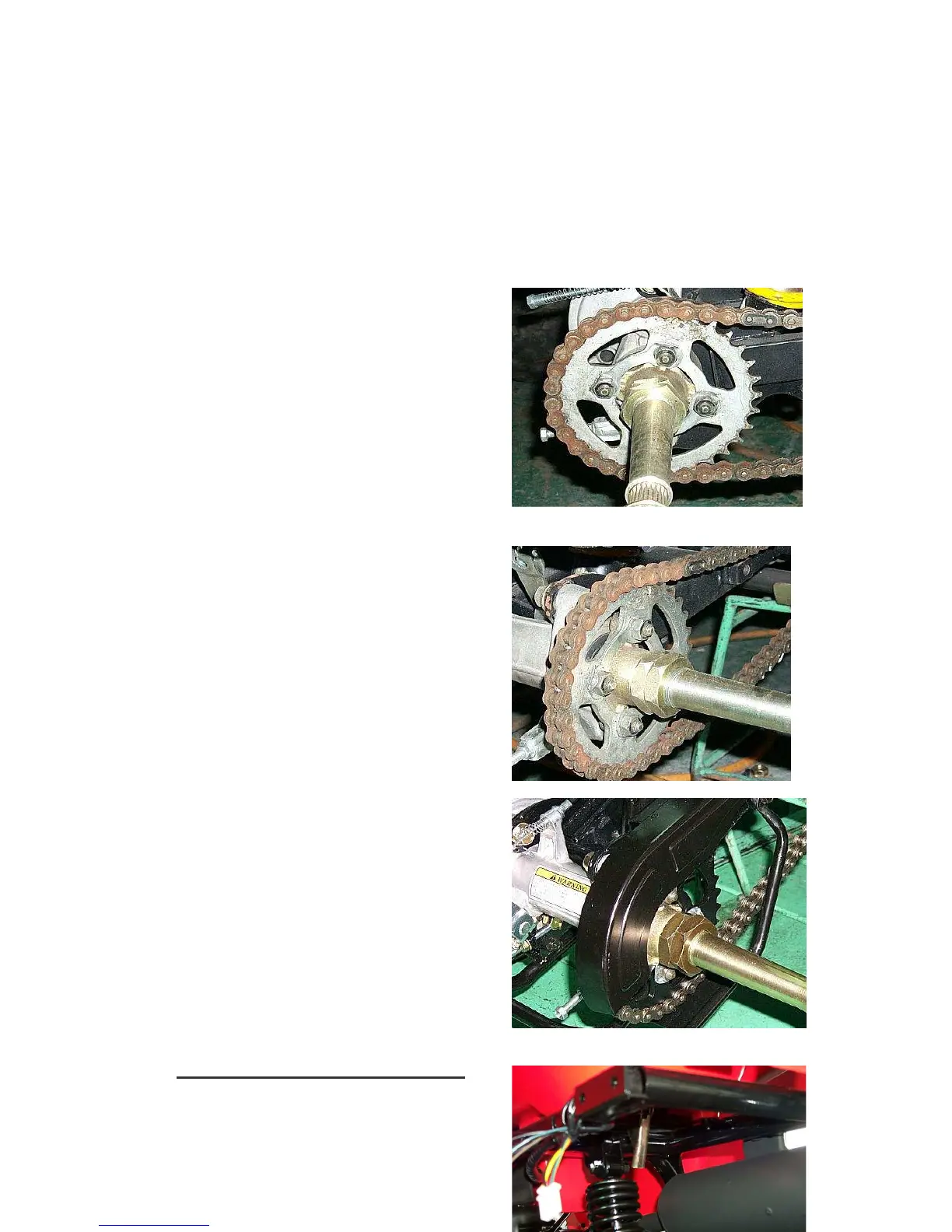

Assemble the drive chains on the driven sprock-
et. Assemble the master link and retaining clip.
NOTE: The retaining clip direction.
Install the drive chain cover.
Assemble the chain under cover.
Install the skid plate.
Install the drive chain cover.
