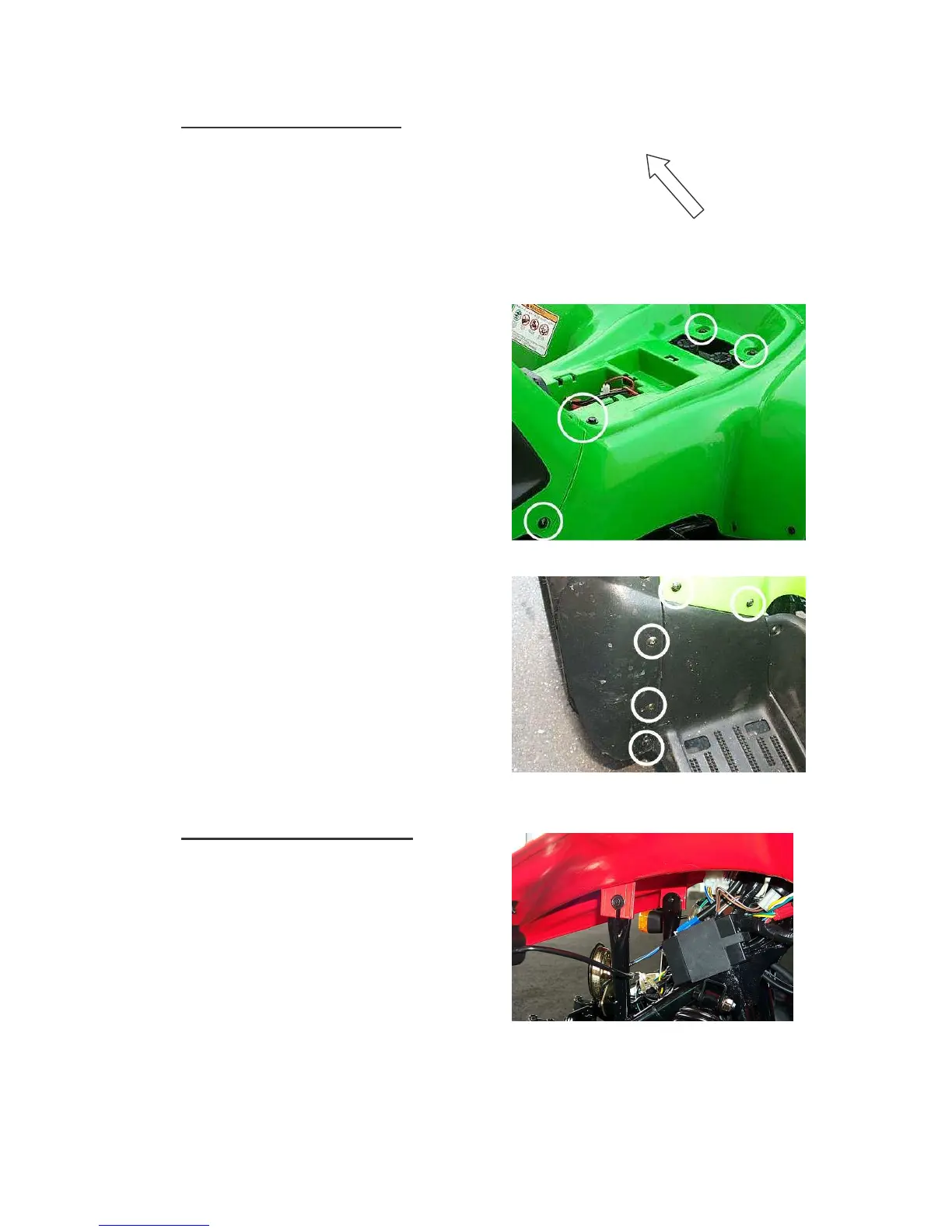

10.1 REAR FENDER REMOVAL
Pull the “Seat Release Bar” to take off the seat.
This seat release bar is under the right side of the
rear fender.
Procedure for rear fender removal:
Remove the rear rack and seat.
Unscrew the four bolts, which connect the front
fender and rear fender.
Unscrew the four screws, which connect the rear
fender and frame.
Unscrew the six screws, which connect with
footrest plate. Pull the rear fender backward so the
rear fender can be removed.
10.2 FRONT FENDER REMOVAL
After remove the rear fender, remove the two
front fender mounting bolts from front frame.
Remove the fuel tank cap.
To Next Page
