ENGINE SHOULD ONLY BE REMOVED IN THE CONDITIONS OF NECESSARY
REPAIRS OR ADJUSTMENT TO THE TRANSMISSION AND COMBUSTION SYSTEM
ONLY!
3.2 ENGINE REMOVAL
Remove the front, rear rack, and handle bar.
Remove the footrest.
Remove the spark plug cap from the spark plug.
Remove the exhaust muffler.
Disconnect the carburetor cable by unscrew two
screws on top of the carburetor.
Disconnect the wire connectors. There are three
connectors for carburetor auto-choke, starter
motor and generator respectively.

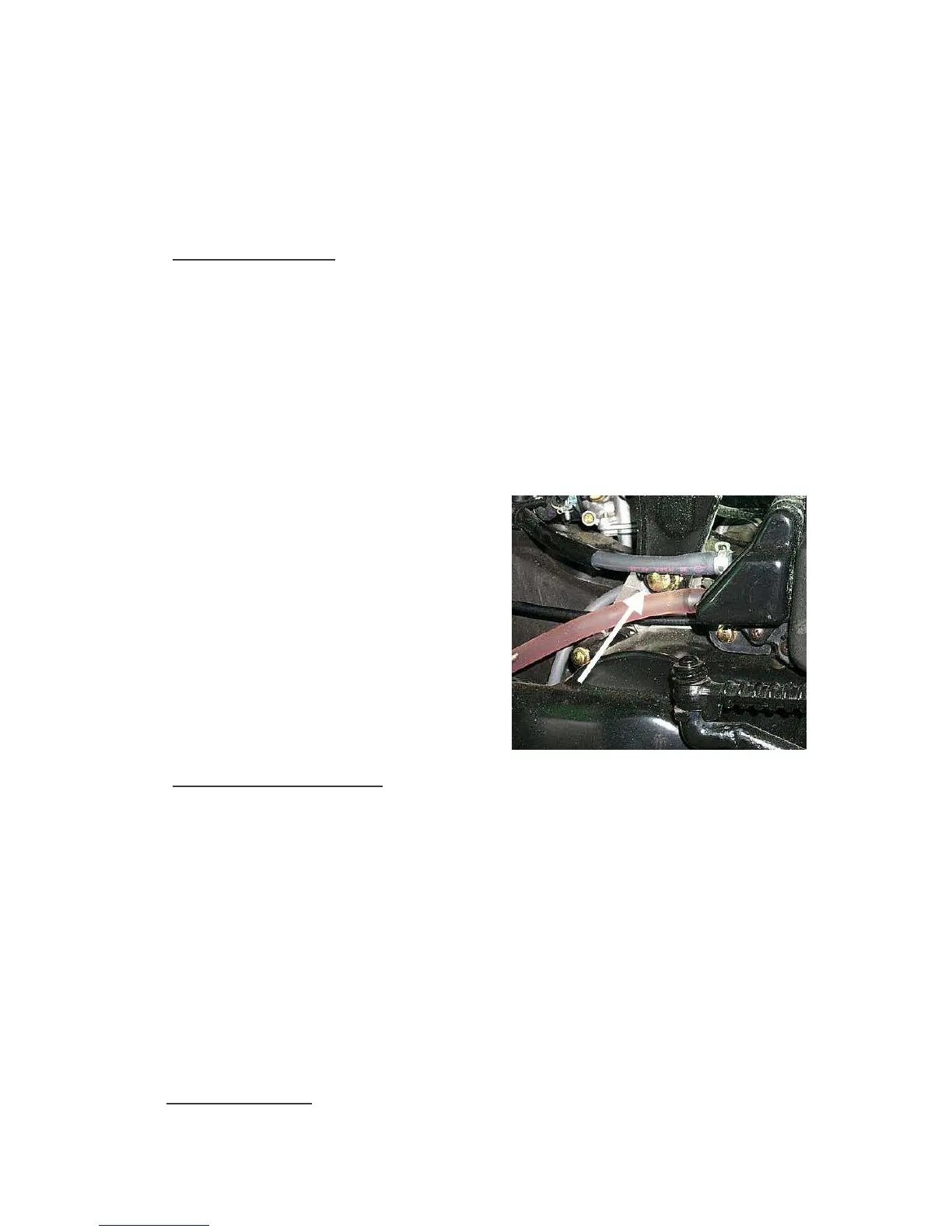

Remove the engine hanger bolts over the engine.
Remove the engine and air cleaner together.
3.2 ENGINE REPLACEMENT
Engine installation is essentially the reverse order
of removal.
The torque of engine hanger bolt is 30 Nm
Route the wires and cable properly in reverse
order of removal.
4. LUBRICATION
