Calculate the stem-to-guide clearance.
SERVICE LIMITS: IN 0.08 mm
EX 0.10 mm
NOTE: If the stem-to-guide clearance exceeds the service
limits, determine if a new guide with standard dimensions
would bring the clearance within tolerance.
If so, replace guides as necessary and ream to fit. If the valve
guide is replaced, the valve seat must be refaced.
CYLINDER HEAD ASS’Y
Lubricate each valve stem with oil.
Insert the valves into the guides.
Install the valve springs, retainers and the cotters.
NOTE: To prevent loss of tension, don’t compress the valve
springs more than necessary.

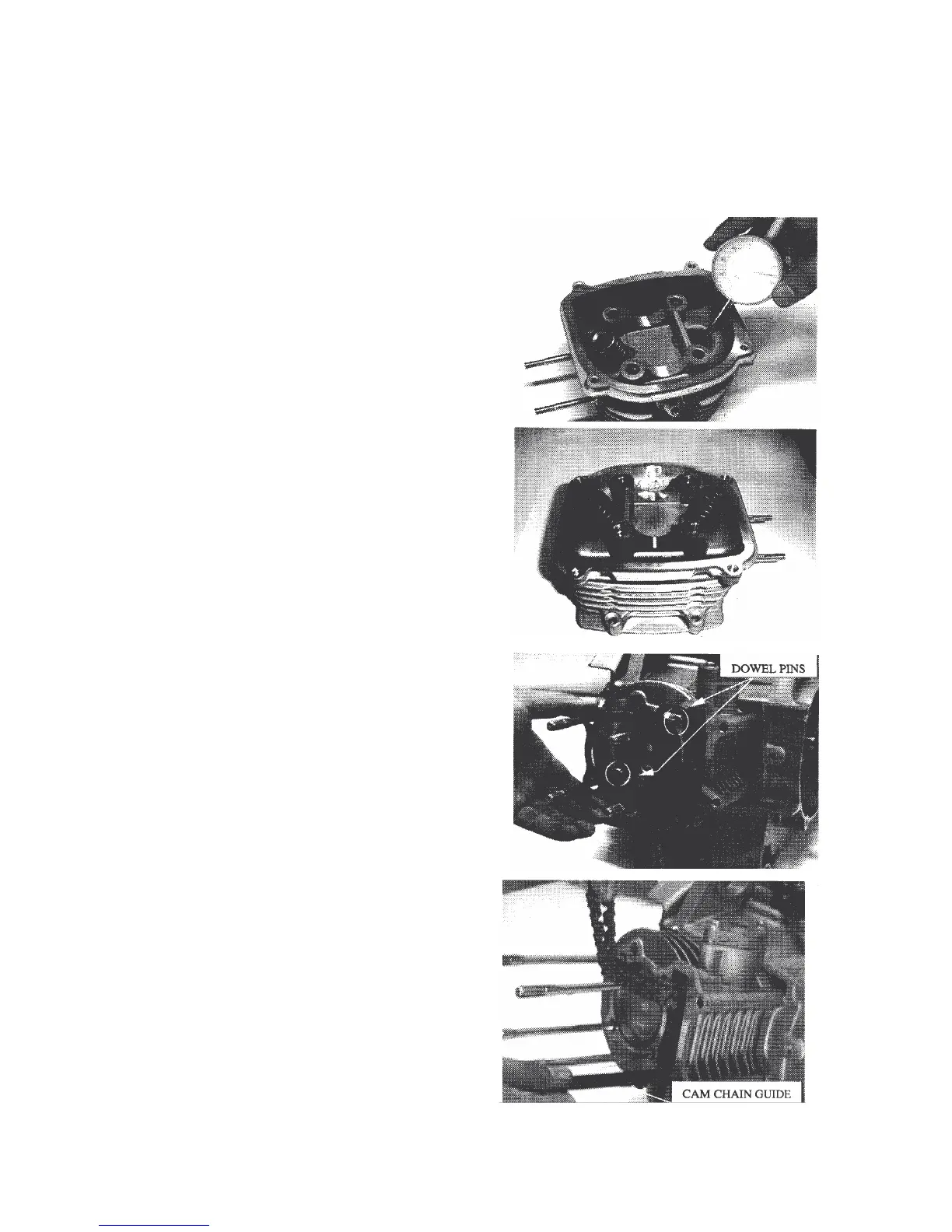

INSTALLATION
Install the new gasket and dowel pins.
Install the cam chain guide.
