Alpha
C
-3-

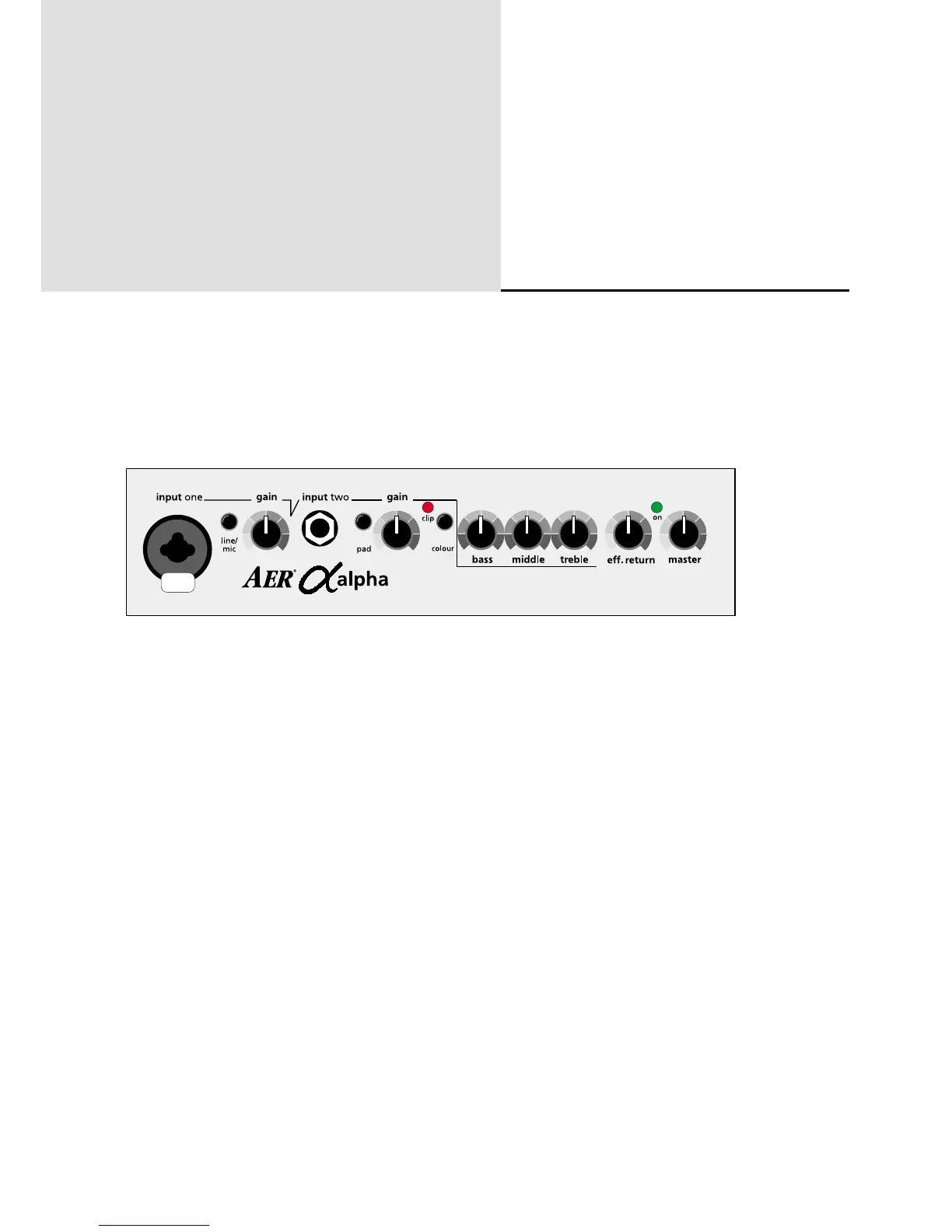

3. Operating Elements
Front (from left to right):
input one XLR combination with a socket for
a 6.3 mm jack plug and XLR male
socket
line/mic preamp mode selector switch
line: sources with line level, instru-
ments with active preamplifiers
and magnetic sound pick-ups,
mic: symmetrical microphone
input with 24 V phantom source
gain input level control
input two socket for a 6.3 mm jack plug,
line level
pad switch to adjust input sensitivity
up position: standard line level
down position: reduction by 10
db/V
gain input level control
clip overload indicator,
for both channels
colour mid-range contour filter,
only active for input 2
eq both inputs at the time
Bass: tone control for bass
Middle: tone control for mid-range
Treble: tone control for treble
return level control for the internal effect
power power indicator lamp
master level control for the overall volume
