HE-110 1B+ II Water Wizard Water Heaters
OMM-0063_0D Installation, Operation & Maintenance Manual
Page 36 of 50 11/28/2018
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, New York 10913
•
Phone: 800-526-0288
SEE
DETAIL ‘A’
0
DETAIL ‘A’
TAILPIECE
SEATING
SURFACE
UNION
NUT
SEALING
SURFACE
BOX
HEADER

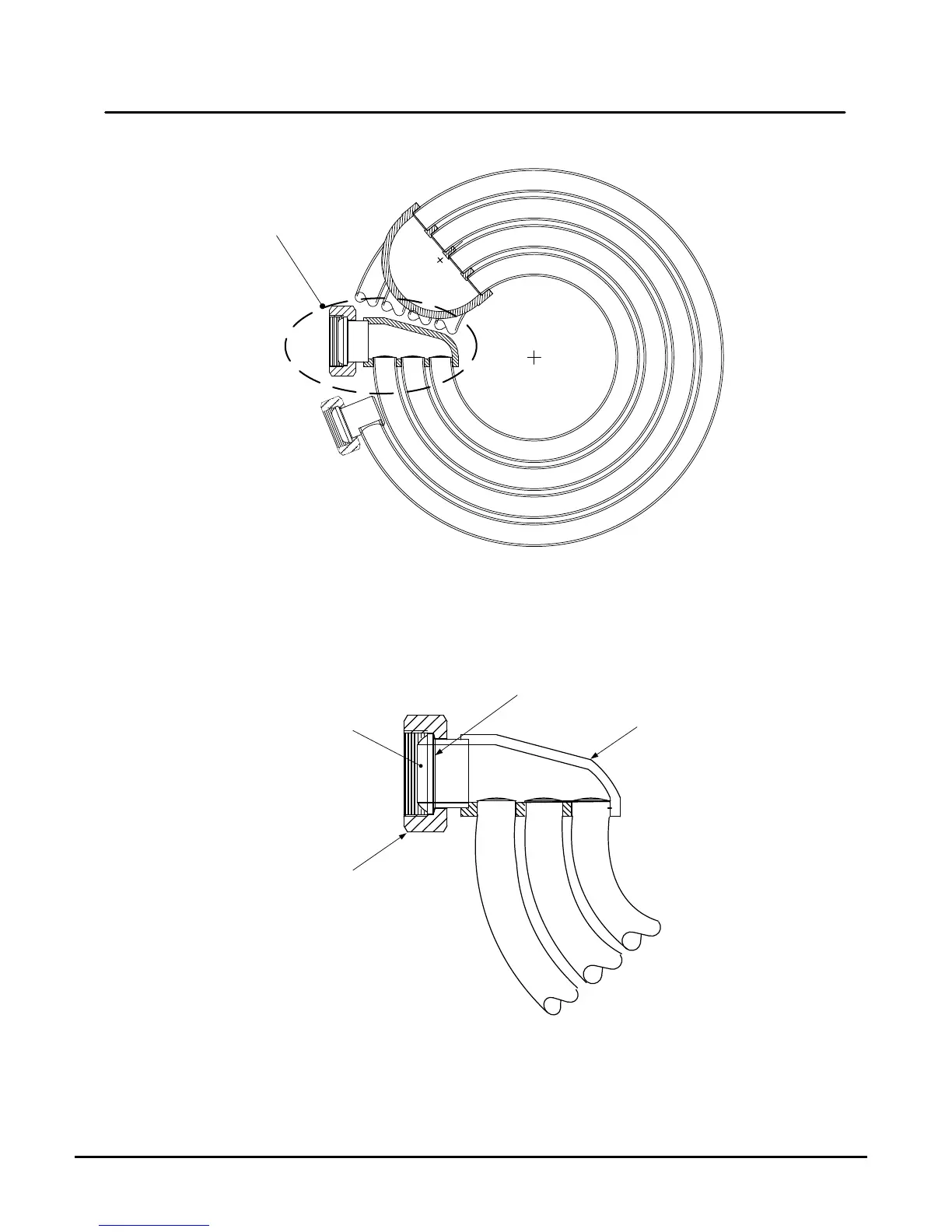

Figure 14: Coil Assembly Preparation
