1B+ II Water Wizard Water Heaters HE-110
Installation, Operation & Maintenance Manual OMM-0063_0D
11/28/2018 Page 37 of 50
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, New York 10913
• Phone: 800-526-0288
TOP VIEW
1/8" MINIMUM
1/8" TO 1/4"
1/8" TO 1/4"
SIDE VIEW
1/8" MINIMUM

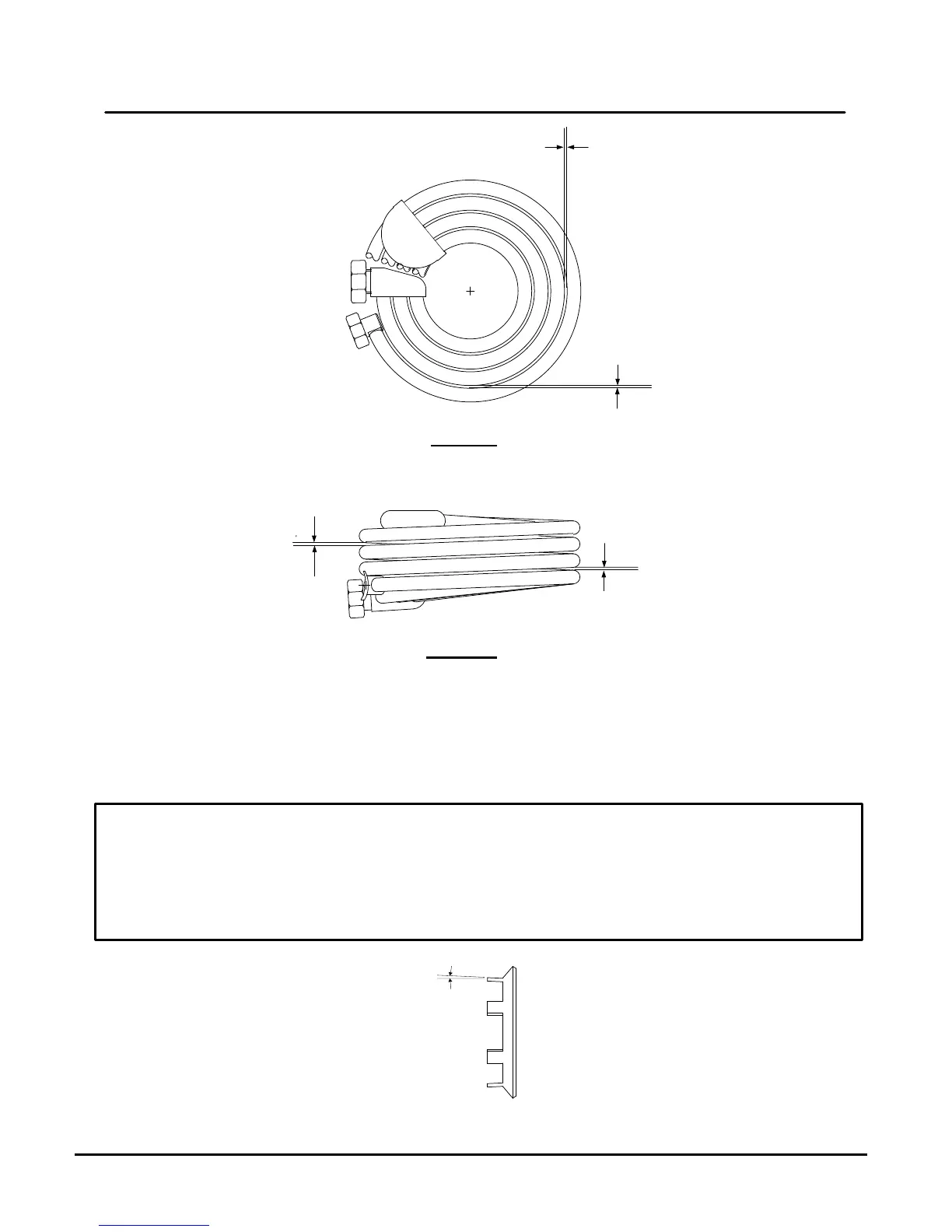

Figure 15: Coil Assembly Spacing
11.4 PREPARATION OF COIL GASKETS
Two 6-tab gaskets are provided with each replacement Coil Assembly. Proceed as
follows:
Figure 16: Coil Gasket Preparation
Preparation of Coil Gaskets
1) Form the Gasket into a round shape
2) Using Needle-Nose Pliers, form the 6 tabs on each Coil Gasket by bending each tab outward
2 to 3 degrees as shown in Figure 16. This will secure the Gasket into the Spud’s inside
diameter.
