1B+ II Water Wizard Water Heaters HE-110
Installation, Operation & Maintenance Manual OMM-0063_0D
11/28/2018 Page 39 of 50
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, New York 10913
• Phone: 800-526-0288

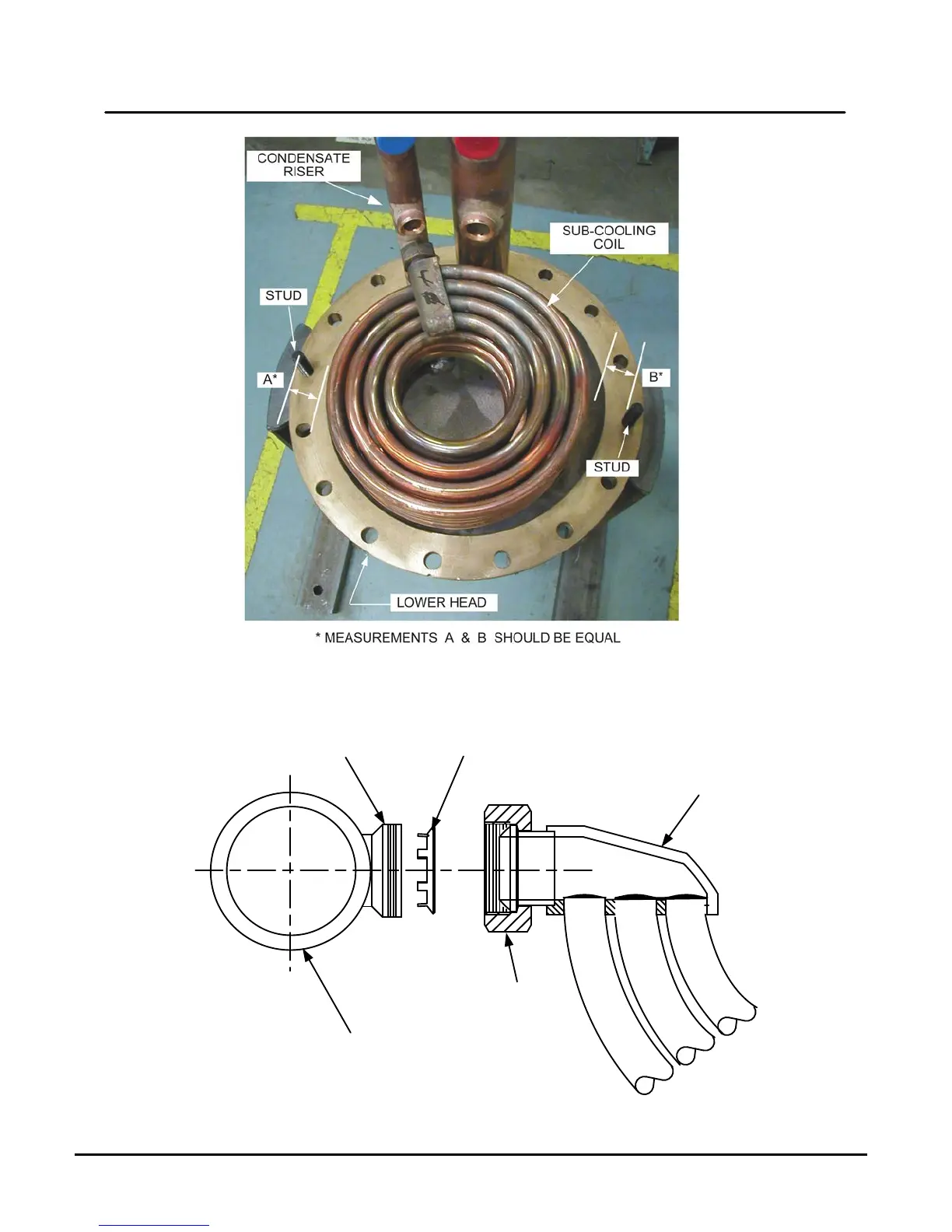

Figure 17: Sub-Cooling Coil Alignment
Figure 18: Assembly of Coil to Steam Riser or Condensate Return
STEAM RISER OR
CONDENSATE RETURN
UNION NUT
COIL GASKET
BOX
HEADER
SPUD
