Control logics

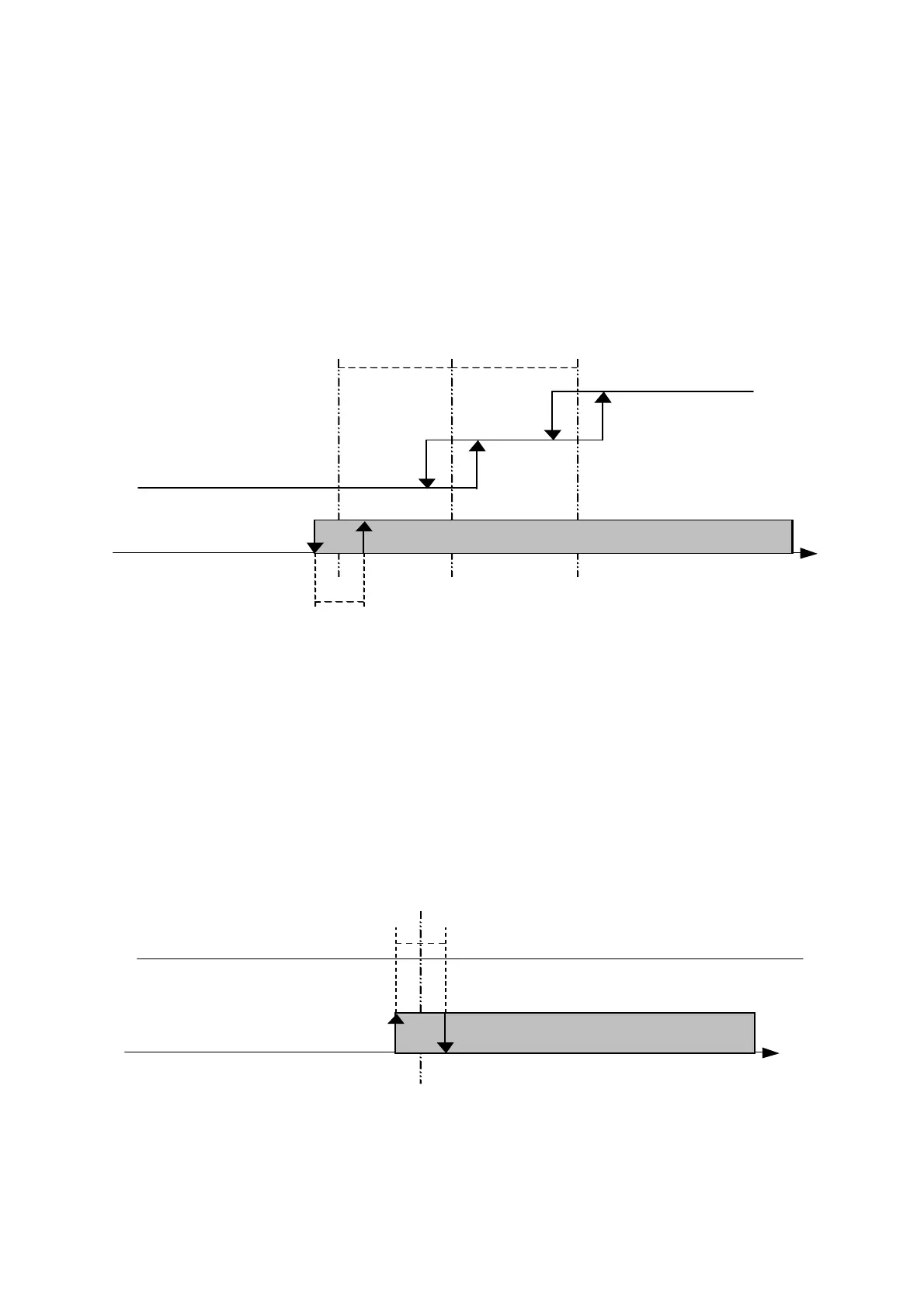

Cooling mode (fan coil)
By means of the remote control it is possible to set the cooling mode and set an operating
temperature. If the fan speed is set in automatic mode the system selects the fan speed for itself
and decides the opening of the water valve depending on the difference between the operating
temperature set by the user (setting) and the temperature measured by the ambient probe.
T
L
0,6 °C
1,5 °C 1,5 °C
V
1
V
2
V
3
Y1
T
SA
Key
T
SA
: ambient probe temperature
T
SW
: water probe temperature
T
L
: operating temperature (set by the user)
V
1
, V
2
, V
3
: speed (maximum, medium, minimum)
V
X
: speed selected by the user
Y1: solenoid valve
While if the V
x
speed of the fan is set from the panel (or remote control) the behaviour will be the
following:
T
SA
V
x
Y1
T
L
0,6 °C
cooling mode with fan speed set by the user
cooling mode, speed set by the user
