CONDENSATE DISCHARGE CONNECTION
During cold functioning the indoor unit removes humidity from the air. The condensate water must
be eliminated by connecting the appropriate discharge coupling to the piping of the condensate
discharge system.
The polystyrene basin has a hole permitting the condensate to be fully run off (this is also useful in
the event of disassembly). The drainage hole must always be closed again with the rubber plug
provided.
The unit is fitted with a number of floating pump devices for raising the condensate from the basin
to the drainage, consisting of an electronic card, an electric pump with non-return valve, and a
floating cock with a 3-level sensor: ON, OFF and Alarm.
The power supply for the float/pump device must never be interrupted. In the event of
an alarm, the float device interrupts the flow of water in the coil. The basin is fitted with an overflow
hole to ensure that the condensate water runs off if the floating pump device is not working. In this
case dripping can be seen from the grille.

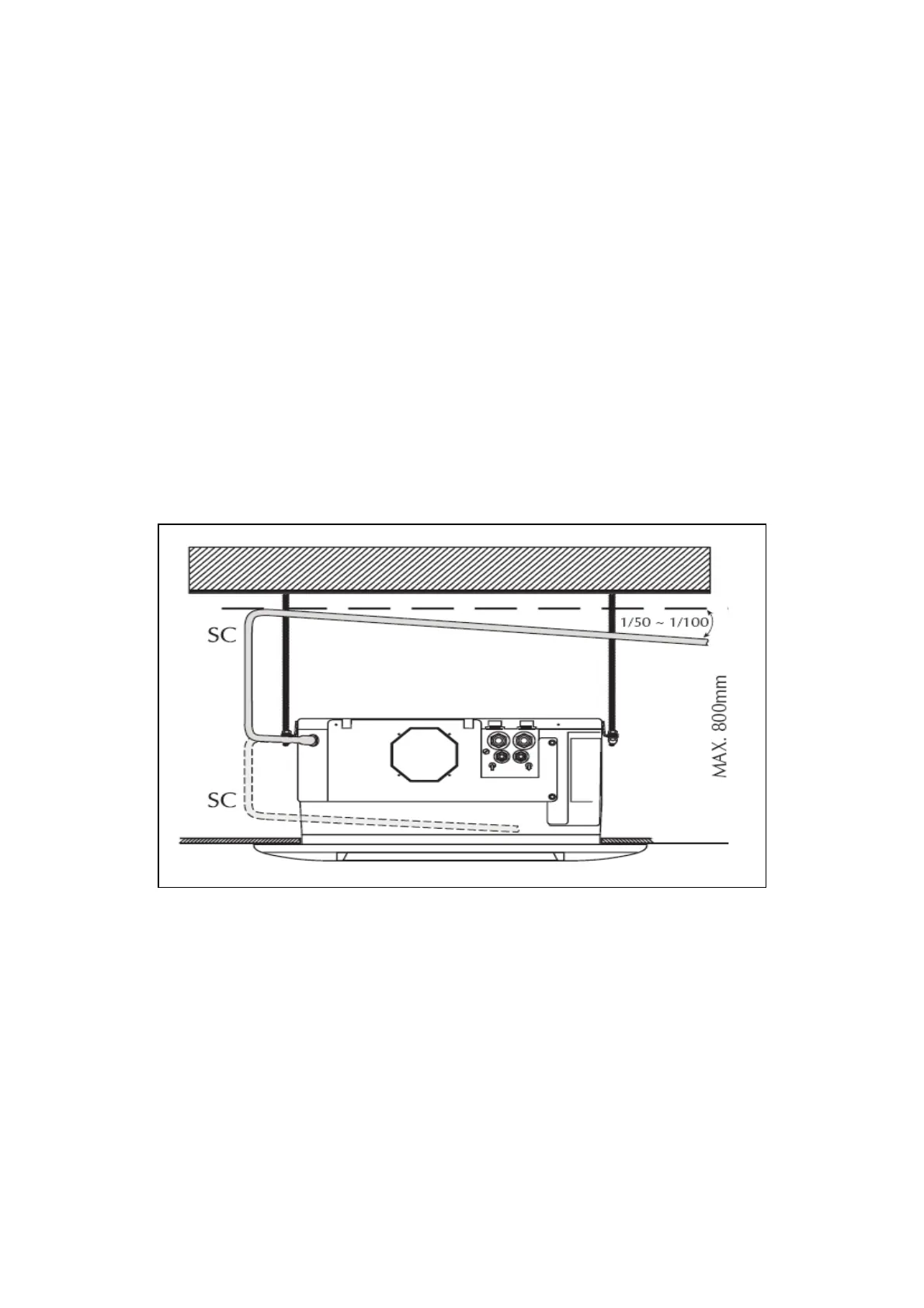

The pump allows a maximum head of 80cm from the level of the suspended ceiling, if this is not
high enough you will have to use an auxiliary device. You are advised to use rigid piping that is
heat-insulated, to avoid condensation on the outer surfaces.
