AERMEC FCLI62 - Heating Output - Modulo 840; Heating Capacity Charts and Factors

30
IFCLITY1106 - 5773010_01
30°C 40°C 50°C 60°C 70°C20°C
400
600
800
1000
1200
1400
1600
1800
2000
4 6 8 101214161820222426283032
Water flow rate [l/h]
t °C (water inlet temperature- air inlet temperature)
Heating capacity [kW]
FCLI 122
30°C 40°C 50°C 60°C 70°C20°C
400
600
800
1000
1200
1400
1600
1800
2000
4 6 8 10 12 14 16 18 20
Water flow rate [l/h)
t °C (water inlet temperature- air inlet temperature)
Heating capacity [kW]
FCLI 124

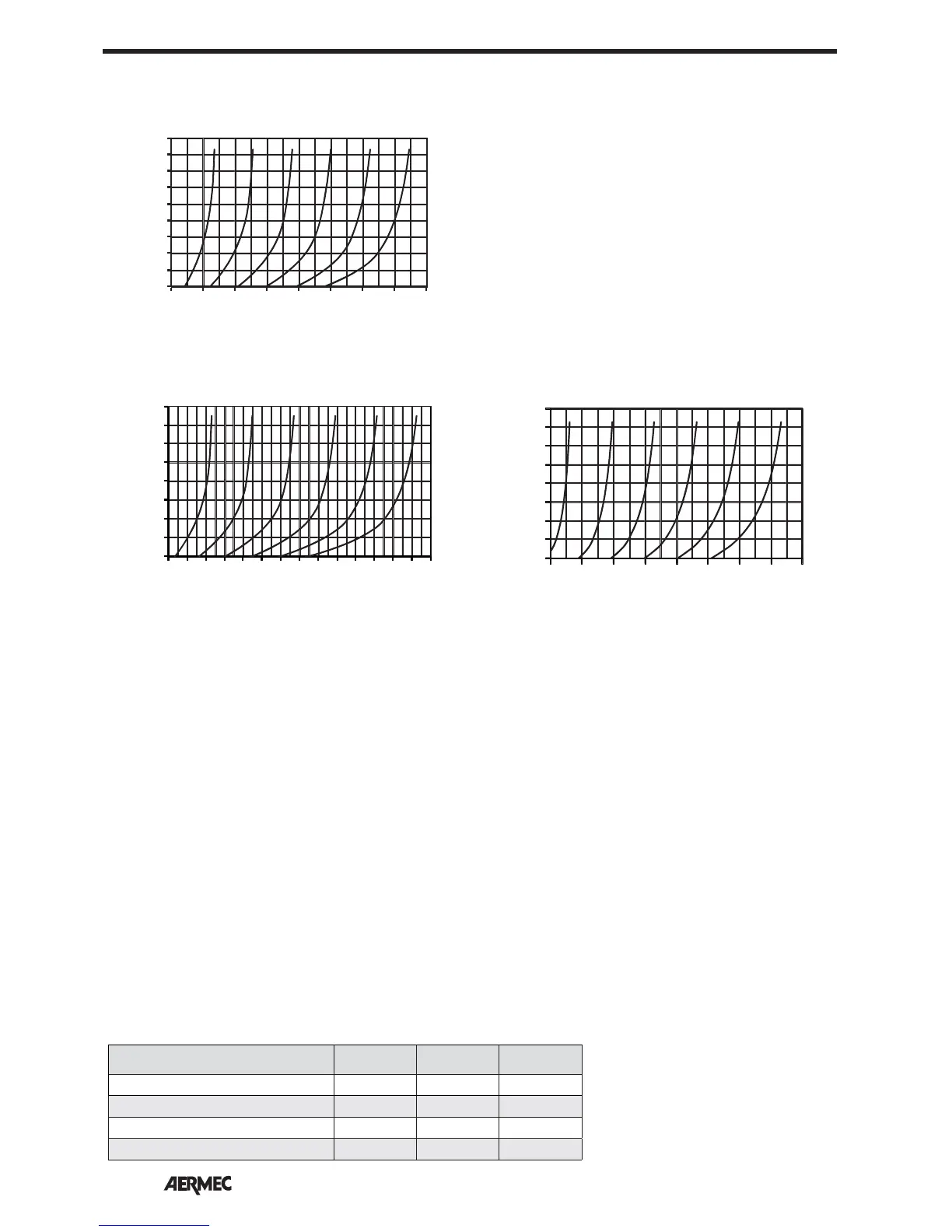

HEATING OUTPUT "Modulo 840"
300
400
500
600
700
800
900
1000
1100
1200
2 4 6 8 10 12 14 16 18
30°C 40°C 50°C 60°C 70°C20°C
Water flow rate [l/h]
t °C (water inlet temperature- air inlet temperature)
Heating capacity [kW]
FCLI 82
HEATING CAPACITY CORRECTION FACTORS
The heat yields refer to the maximum speed. For the rest of the speeds the values must be multiplied by the following factors:
FCLI 82 122 124
Speed 4 (Maximum) 1 1 1
Speed 3 0.91 0.81 0.83
Speed 2 0.61 0.68 0.74
Speed 1 (Minimum) 0.49 0.49 0.56
