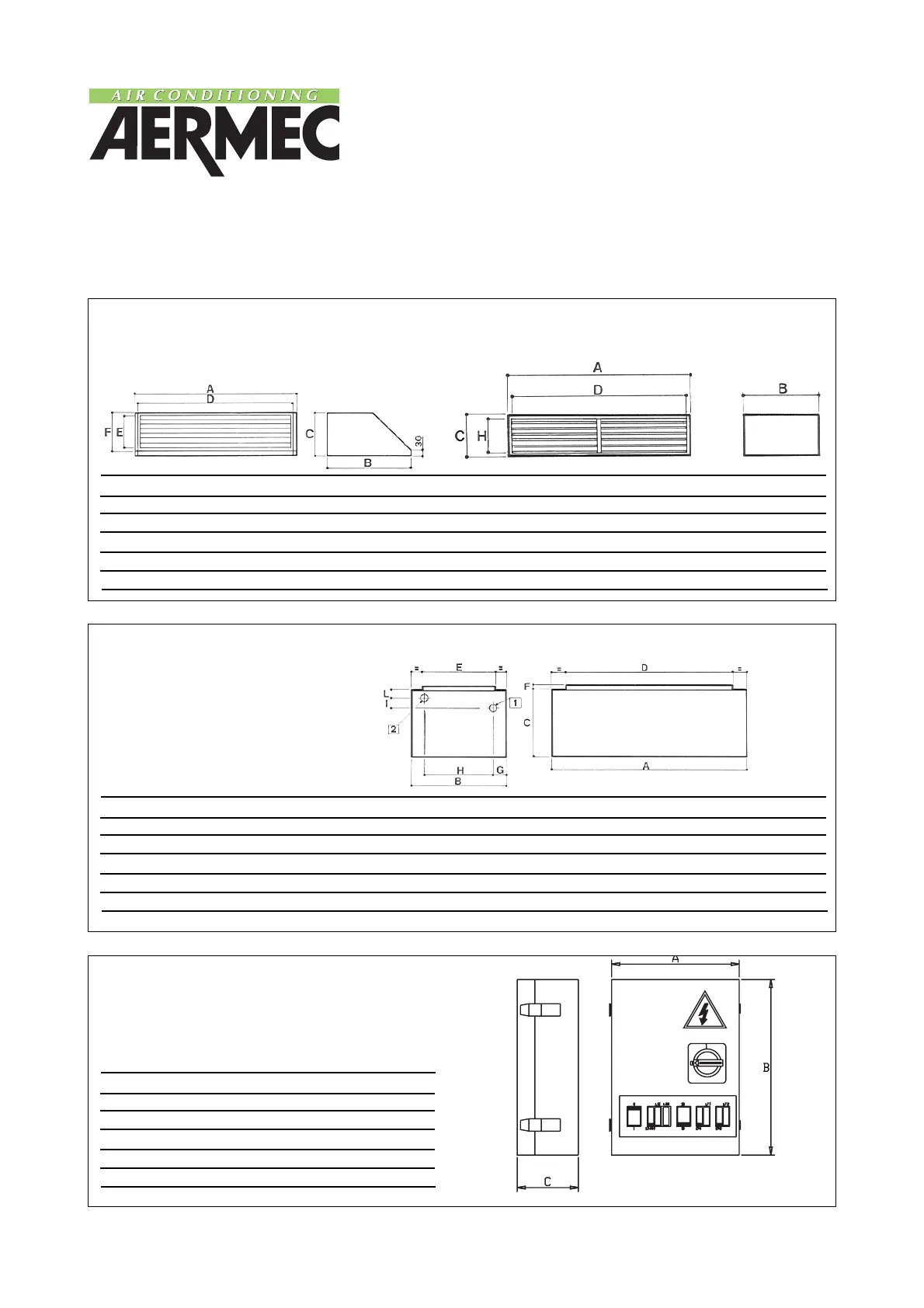

DATI DIMENSIONALI IN mm DEGLI ACCESSORI
ACCESSORIES DIMENSIONS IN mm
DIMENSIONS DES ACCESSOIRES EN mm
ABMESSUNGEN IN mm
MOD. ABC D EFH
MEC 30 W 900 480 245 790 195 305 -
MEC 50 W 1040 540 270 930 230 340 -
MEC 75 W 1220 625 356 1110 - - 246
MEC 100 W 1450 700 500 1340 - - 390
MEC 150 W 1880 730 500 1770 - - 390
PLENUM DI DISTRIBUZIONE
AIR DELIVERY PLENUM
PLENUM DE REFOULEMENT
LUFTAUSBLASHAUBE (PLENUM)
MOD. ABC D EFG
MEC 30 W 900 480 300 688 268 22 70
MEC 50 W 1040 540 325 828 328 22 80
MEC 75 W 1220 625 375 1024 450 22 88
MEC 100 W 1450 700 500 1277 527 22 92
MEC 150 W 1880 730 500 1704 554 32 95
BATTERIA RISCALDANTE
HEATING COIL
BATTERIE DE CHAUFFAGE
PWW - HEIZREGISTER
MOD. ABC
MEC 30 W
MEC 50 W 350 450 167
MEC 75 W
MEC 100 W 430 600 167
MEC 150 W
QUADRO COMANDI
CONTROL BOARD
TABLEAU COMMANDES
SCHALTTAFEL
1= uscita acqua /
1= water outlet
2= entrata acqua /
2= water inlet
1= Sortie eau / 1= Wasseraustritt
2= Entrée eau / 2= Wassereintritt
