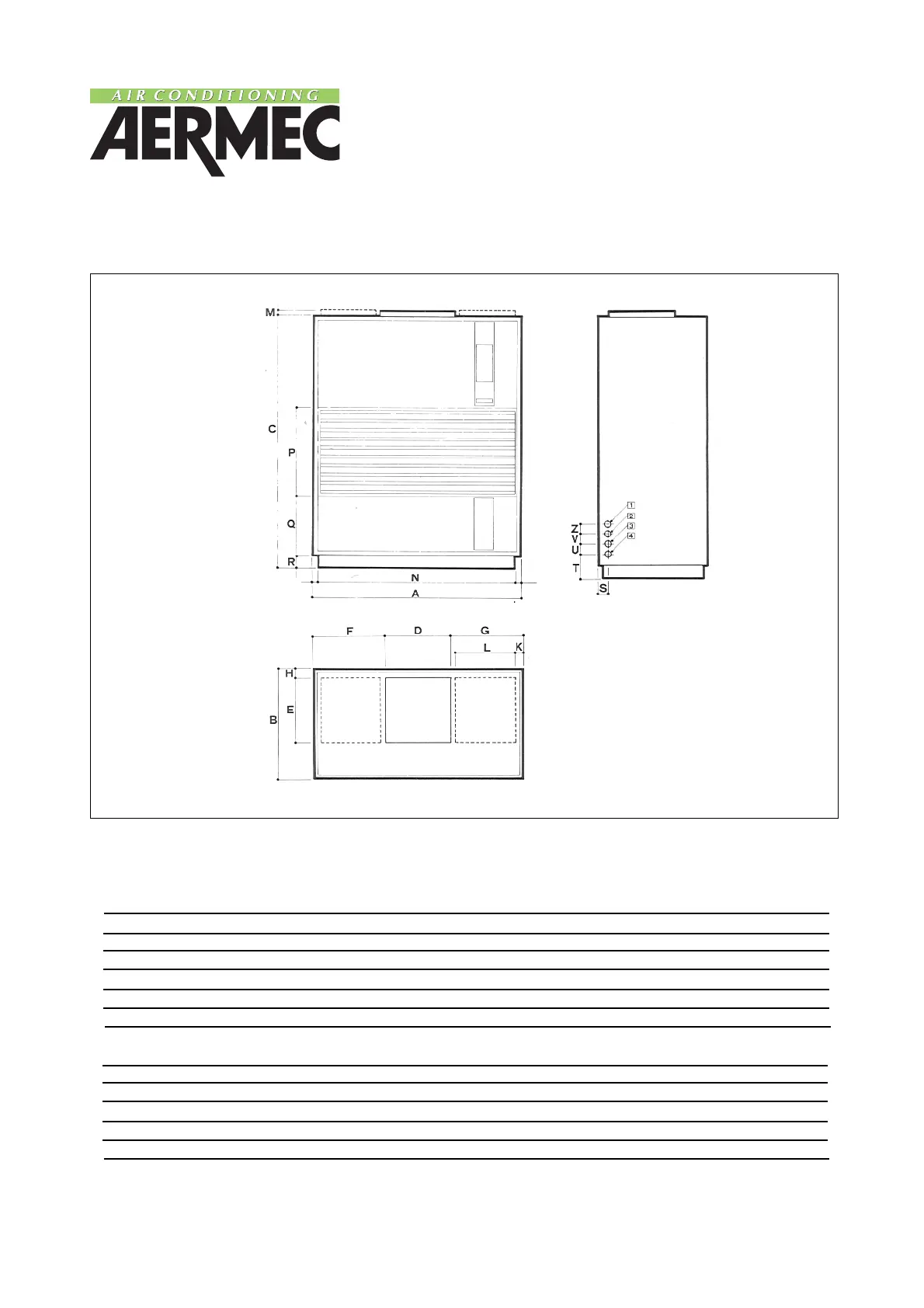

DATI DIMENSIONALI mm
DIMENSIONS IN mm
DIMENSIONS EN mm
ABMESSUNGEN IN mm
1= linea elettrica
1= electric line 1= Ligne électrique 1= el Anschlüsse
2= scarico condensa 2= condensate discharge 2= Evacuation condensats 2= Kondensat - Ablauf
3= uscita acqua
3= water outlet 3= Sortie eau 3= Wasseraustritt
4= entrata acqua
4= water inlet 4= Entrée eau 4= Wassereintritt
MOD. A B C D E F G H K L
MEC 30 W 900 494 1290 316 280 306 278 67 - -
MEC 50 W 1040 558 1410 350 307 390 300 67 - -
MEC 75 W 1220 648 1680 422 368 399 399 64 - -
MEC 100 W 1450 723 1700 497 430 476 477 67 - -
MEC 150 W 1880 753 1745 - 368 - - 75 330 422
MOD. N M P Q R S T U V Z
MEC 30 W 30 840 418 340 80 45 145 65 65 65
MEC 50 W 30 980 478 386 80 45 145 65 65 65
MEC 75 W 40 1160 592 440 80 45 145 65 65 65
MEC 100 W 25 1390 609 381 80 45 149 65 65 65
MEC 150 W 30 1820 735 362 65 65 142 80 80 80
