Multichiller Alarms
The following alarms force the num-
ber of chillers requested switched-on,
independently from other controls, to 1
(except Multichiller
Enable = OFF that requests all switched
on and Global On/Off = OFF that
requires all switched off) They have
automatic reset

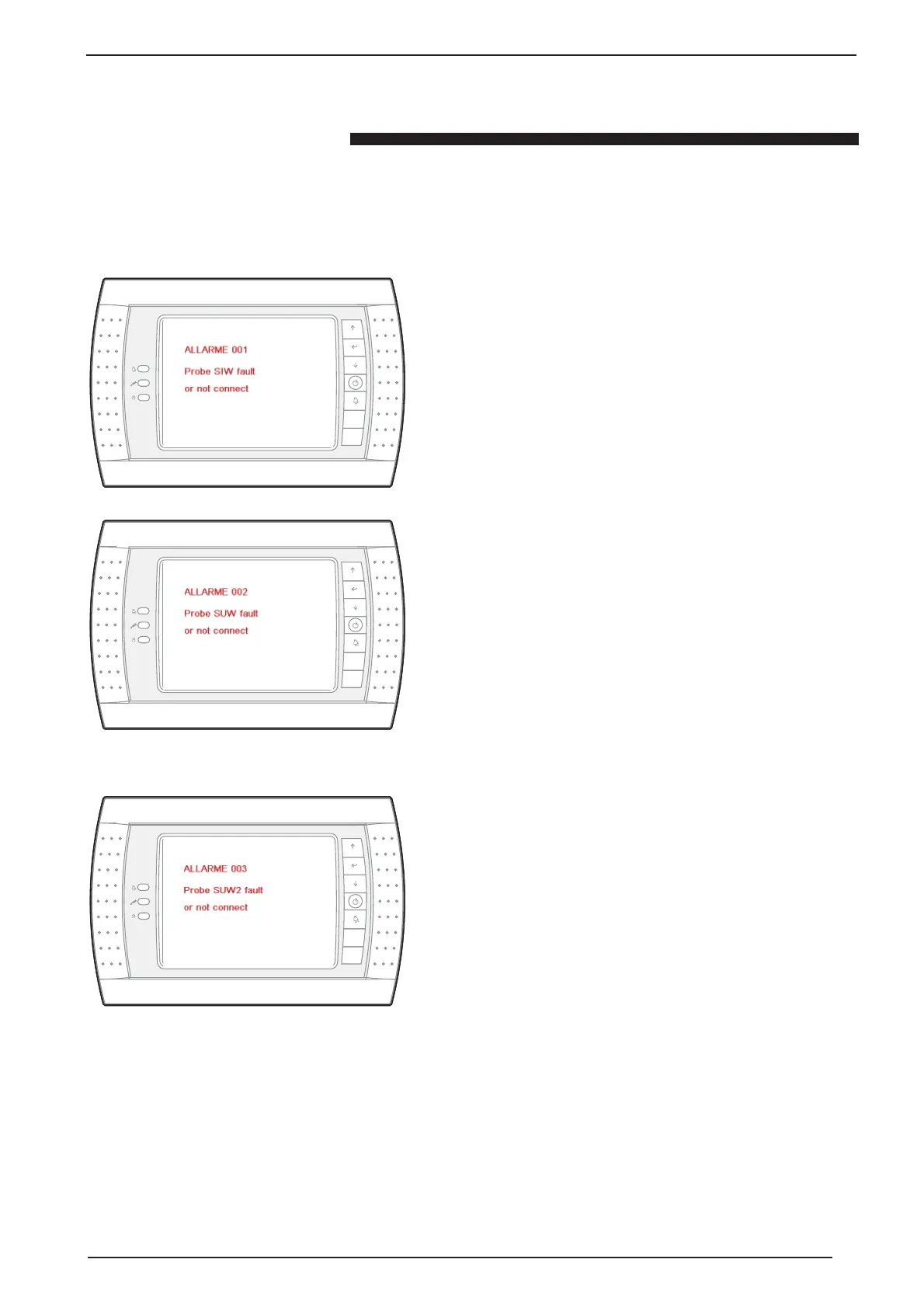

The value read by the SIW probe is out of range -35°C / 80°C
independently if it is connected to the PCO1 or PCOE card
Il The value read by the SUW probe is out of range -35°C / 80°C
independently if it is connected to the PCO1 or PCOE card
The value read by the SUW2 probe is out of range -35°C / 80°C
independently if it is connected to the PCO1 or PCOE card
The flowing alarms are only used to signal a display anomaly, signal LED and alarms summary relay. They have automatic reset
