26 21.05 – 5167557_02

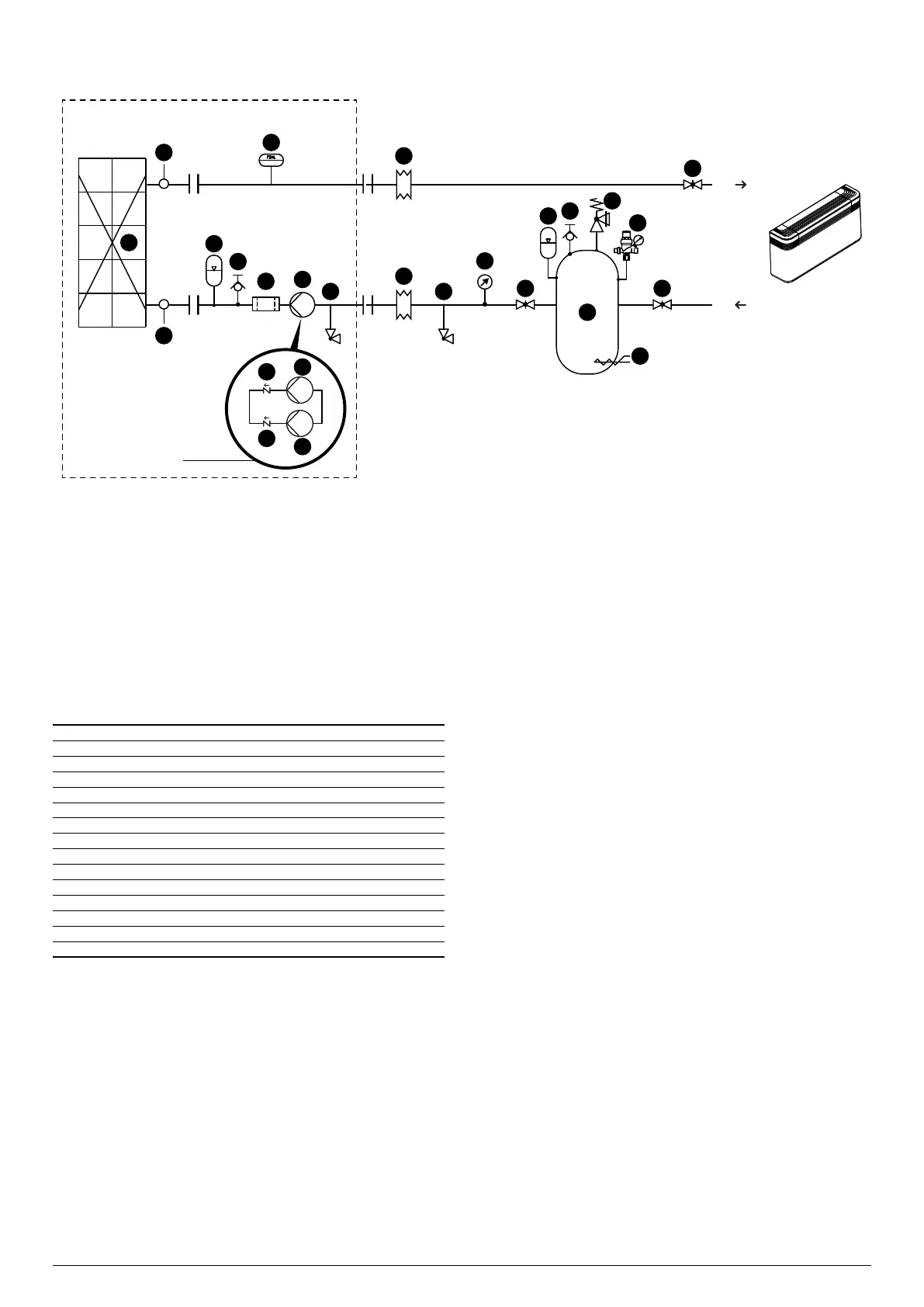

System: Chiller with plate heat exchanger
PH 7,5 - 9
Total hardness 4,5 - 8,5 °dH
Temperature < 65 °C
Oxygen content < 0,1 ppm
Max. glycol amount 50 %
Phosphates (PO₄) < 2ppm
Manganese (Mn) < 0,05 ppm
Iron (Fe) < 0,3 ppm
Alkalinity (HCO₃) 70 - 300 ppm
Chloride ions (Cl-) < 50 ppm
Sulphate ions (SO₄) < 50 ppm
Sulphide ion (S) None
Ammonium ions (NH₄) None
Silica (SiO₂) < 30 ppm
WATER CHARACTERISTICS
NRK 0300-0700 (P1-P2-P3-P4)
Components as standard
1 Plate heat exchanger
2 Water temperature sensors (IN/OUT)
3 Flow switch
4 Expansion vessel
5 Air drain valve
6 Water lter
7 Pump (P1-P3: Single pump / P2-P4: Pump + stand-by pump)
8 Check valve
9 Drain valve
Components not provided and responsibility of the installer
10 Anti-vibration joints
11 Drain valve
12 Pressure gauge
13 Flow shut-o valves
14 Expansion vessel
15 Air drain valve
16 Safety valve
17 Loading unit
18 Storage tank
19 Antifreeze electric heater
6
1
2
2
5
16
3
12
9
11
10
10
13
13
13
7
18
19
15
17
14
4
7
8
8
7
P2-P4
