Aeroball Senior 2 Manual
11
STEPS 1 TO 11: BUILDING THE STRUCTURE

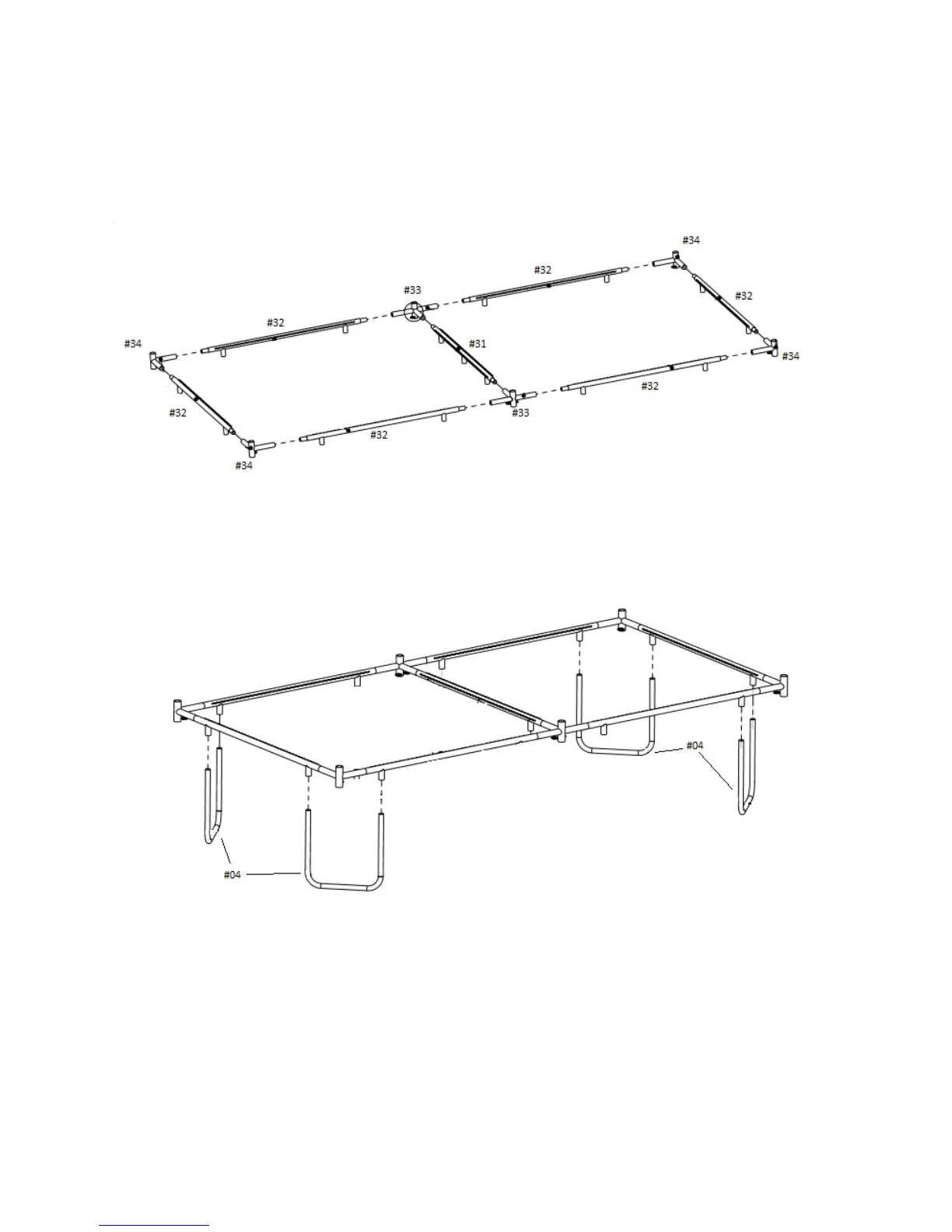

Step 1: Connect the lower horizontal bed supports (#31 – center; #32 – sides) to all the junction
supports (#33 – center; #34 – sides), as shown below:
Step 2: Insert the corner base legs (part #04) into the sleeves found at each corner (underneath
#34).
Step 3: Insert 3 center legs (part #13) into the 3 holes in each of the center leg supports (part
#03). Once joined, insert the entire thing into the sleeves in the center edges of the structure
(underneath #33).
To Next Page
