- 4 -

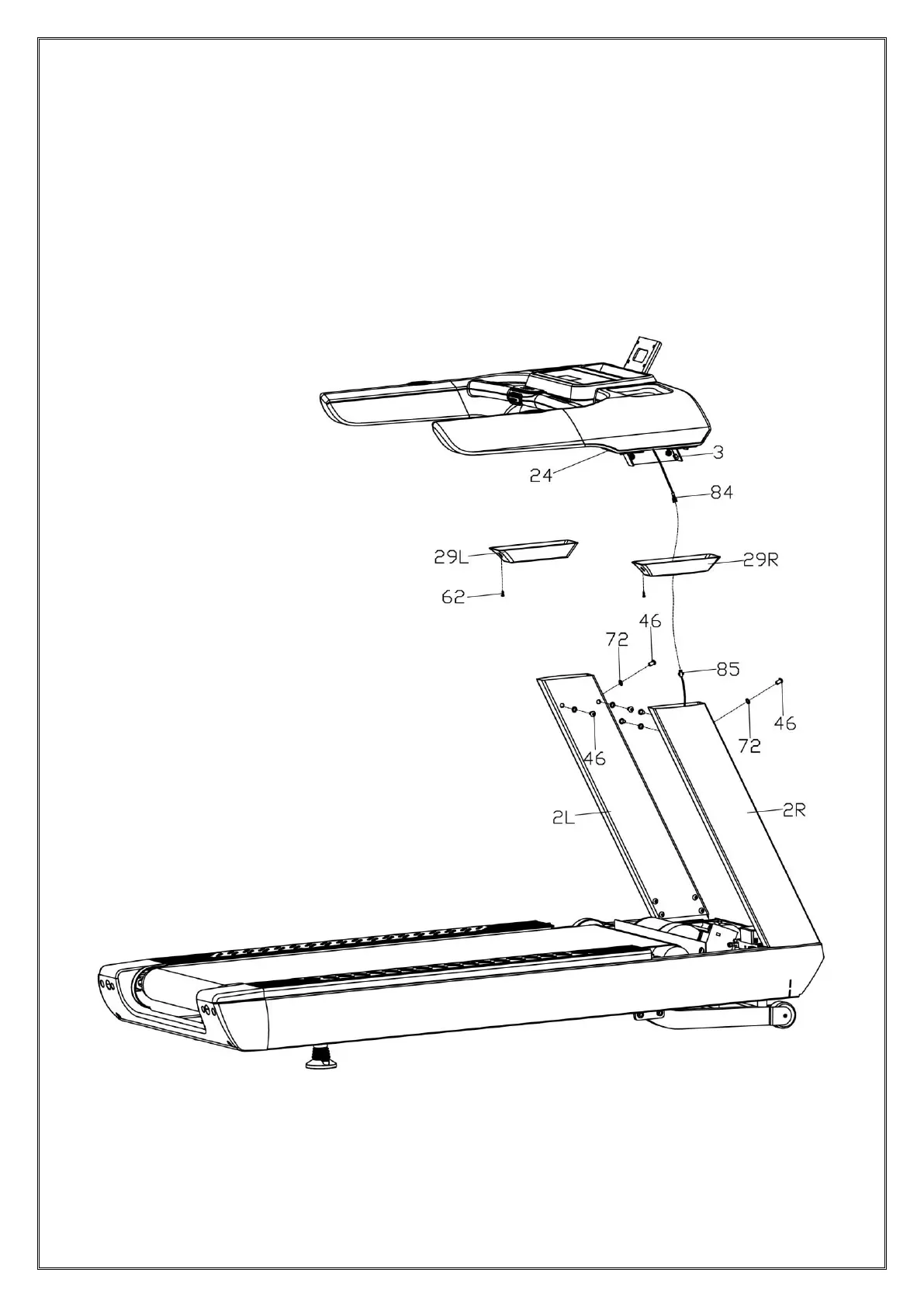

STEP 3:
1. Insert the upright tube cover (29L/R) into the upright tube (2L/R);
2. Connect the computer upper wire (84) and computer connecting wire (85);
3.lock the computer frame(3)on the upright tube(2L/R)with the inner hexagonal head bolts (46)、internal
serrated locking washer(72);
4. Lock the all bolts tightly;
5.lock the upright tube cover(29L/R)on the computer lower cover(24)with cross recessed pan self
tapping screw(62).
