Hardware Components
This section describes the hardware components of the Atom AP30.
Status LED
The Atom AP30 has a rectangular status LED on the top front edge of the chassis. When you plug the device into a wall socket, this
light cycles through the following sequence:
• Steady Amber: The device is initializing, rebooting, or downloading new software.
• Slow-blinking Amber: The device is looking for a neighbor with which to establish a mesh connection.
• Fast-blinking White: The device has obtained a password from a neighbor and is now establishing a mesh connection.
• Steady White: The device has successfully established a CAPWAP connection and is operating normally.
Ethernet Port
The Atom AP30 has one RJ45 1x 1 Gbps Ethernet port that supports bridge and backhaul modes.
Hardware Specifications
The following specifications describe the physical features and hardware components, the power adapter and electrical
requirements, and the temperature and humidity ranges in which the devices can operate.
802.11ac: 2x2:2 802.11ac dual band, 300 + 867 Mbps
Antennas:The Atom AP30 has 4 integrated antennas:
• 2 Wi-Fi 2.4 G antennas
• 1 Wi-Fi 5 G antenna
• 1 d
ual band 2.4 G BLE/5 G Wi-Fi antenna

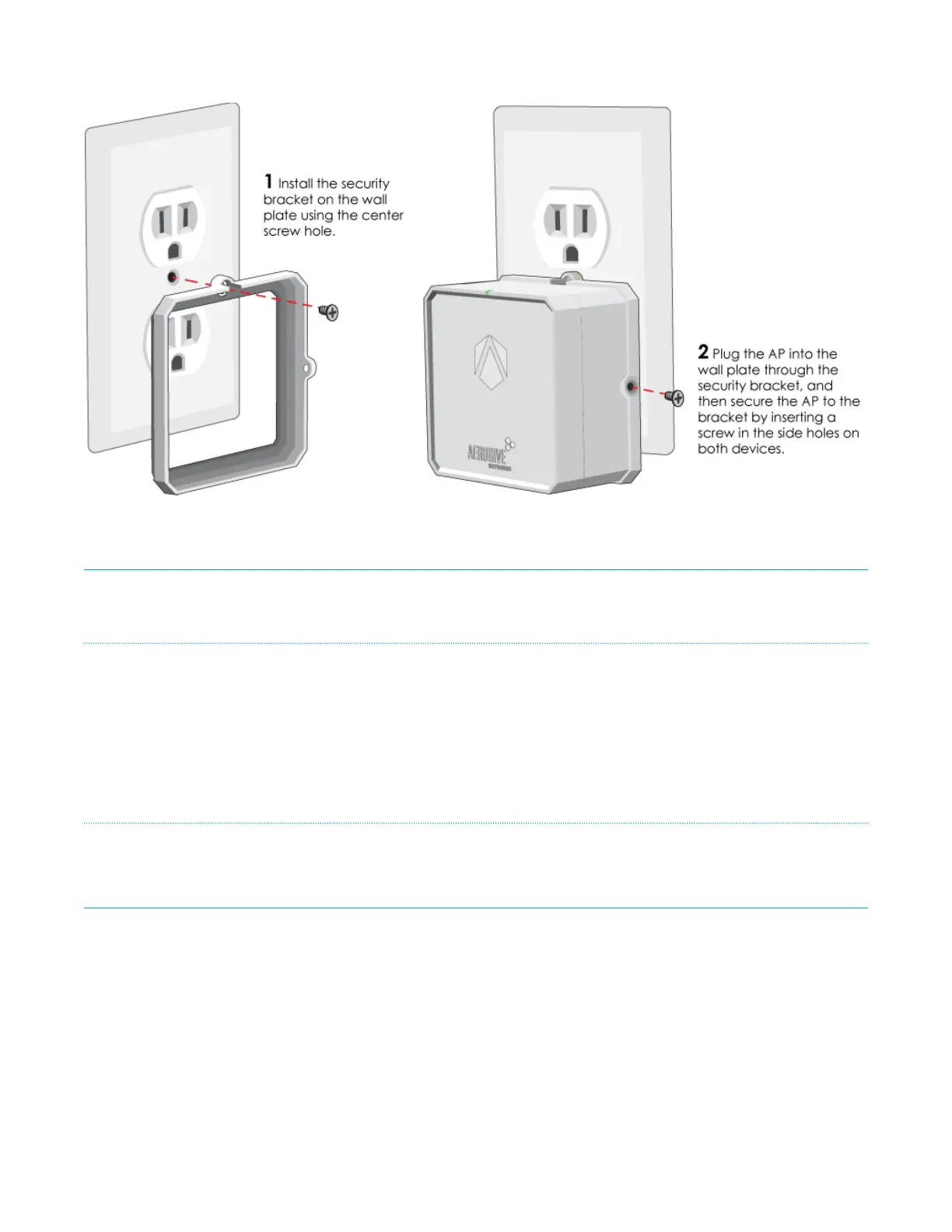

Power Adapter: Integrated Type A 110V ACpower adapter that is compatible with a Type A or Type B electrical plug.
BLE: Built-inBLE for iBeacon and beacon management applications
Page 3 of 5Atom AP30 Hardware User Guid
