2.5 Cockpit overview

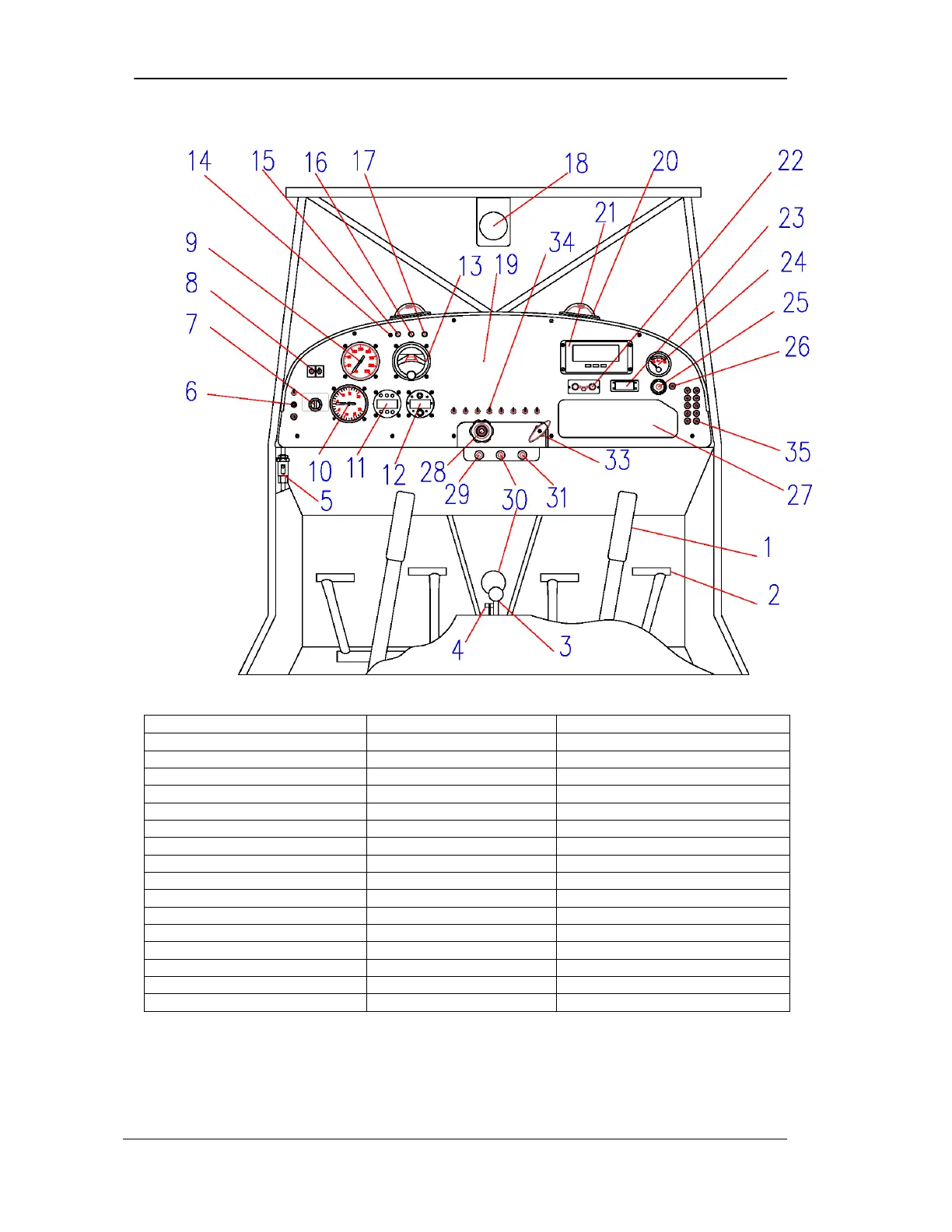

LAYOUT OF CONTROLS AND INSTRUMENTS (see following pages for details concerning Figures 1-9)
Fig. 1 airspeed indicator
1. control stick
18. compass
Fig. 2 engine start up
2. rudder pedals
19. area for GPS or iPad installation
Fig. 3 main fuel valve
3. flap control lever
20. air vents
Fig. 4 EIS engine instrument
4. elevator trim control
21. EIS engine instrumentation
Fig. 5 central control panel
5. main fuel valve
22. intercom
Fig. 6 flaps, trim
6. boost pump switch
23. ELT panel controller
Fig. 7 switches and fuses panel
7. keyed ignition switch
24. Rotax fuel pressure gauge
Fig. 8 control lights
8. magneto switches
25. cigarette lighter type power socket
Fig. 9 door lock mechanism
9. airspeed indicator
26. power socket circuit breaker
10. altimeter/VSI
27. mapbox
11. transponder
28. throttle
12 . radio
29. carb heat knob
13. EFIS (optional)
30. cockpit heat knob
14. annunciator test button
31. oil cooler flap knob
15. low level fuel warning light
33. choke
16. low voltage warning light
34. switches
17. EIS warning light
35. circuit breakers
