Aeropro CZ - A220 taildragger - Pilot Operating Handbook and Flight Training Supplement
March 21, 2020

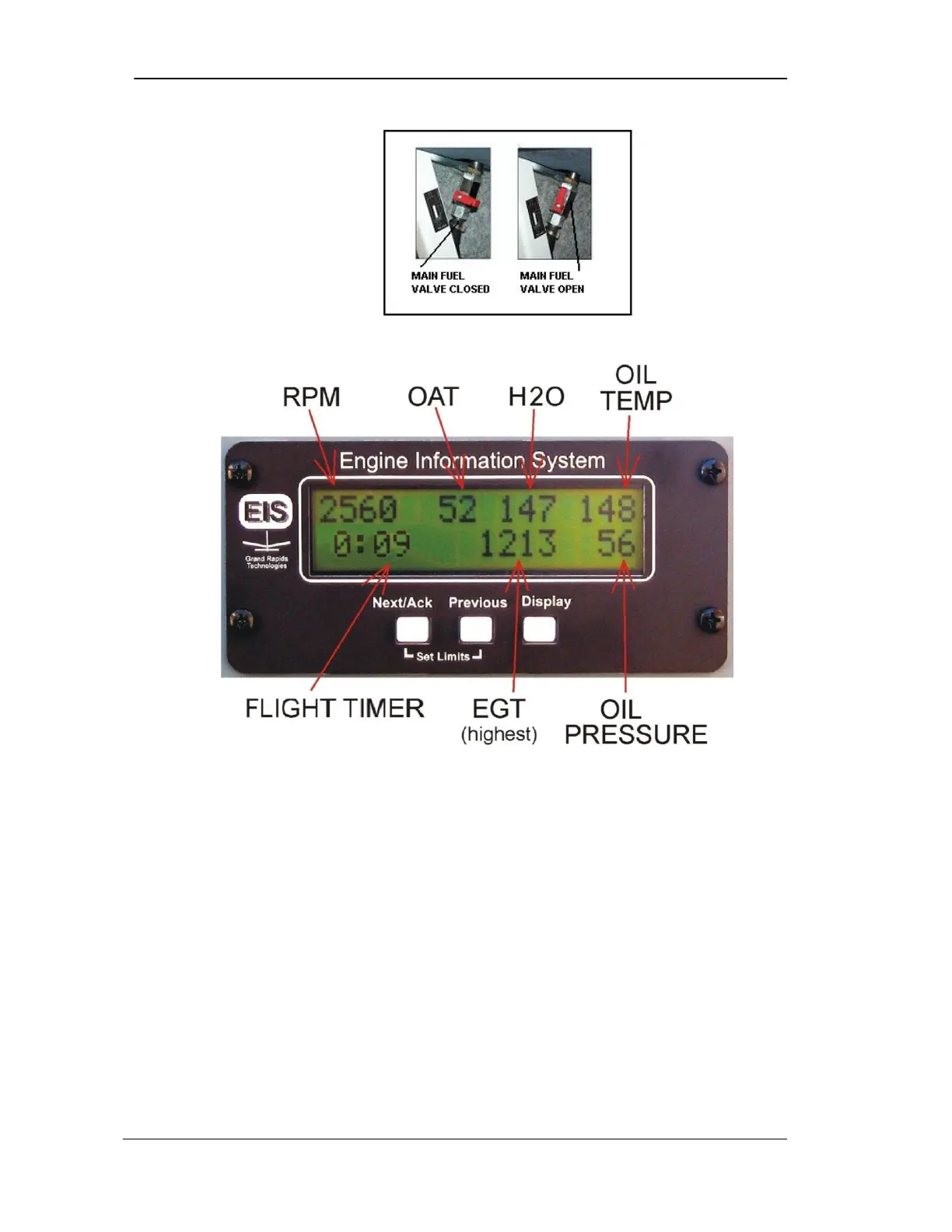

Figure 3 - Main Fuel Valve open and closed position
Figure 4 - EIS Model 4000 for Rotax 912-series engines
Display panel description (shown is EIS page 1 - default display page)
tachometer - engine RPM
OAT - outside air temperature
H2O - coolant temperature
oil temperature
flight timer
EGT - exhaust gas temperature (hottest EGT)
oil pressure
Indicator unit alert limits max limit
Engine rotation speed (rpm) .......................... 5800 ................. 5800
EGT/Exhaust gas temperature (ºF) .............. 1650 .................. 1850
H2O - coolant temperature (ºF) ................... 228 ................... 248
Oil temperature, (ºF) ..................................... 260 ................... 300
Oil pressure, max (psi) ................................. 84 ................... 100
Oil pressure, min (psi) .................................. 28 .................. 12 (minimum)
Oil pressure, normal (psi).............. 29 - 72
