Aeropro CZ - A220 taildragger - Pilot Operating Handbook and Flight Training Supplement
March 21, 2020

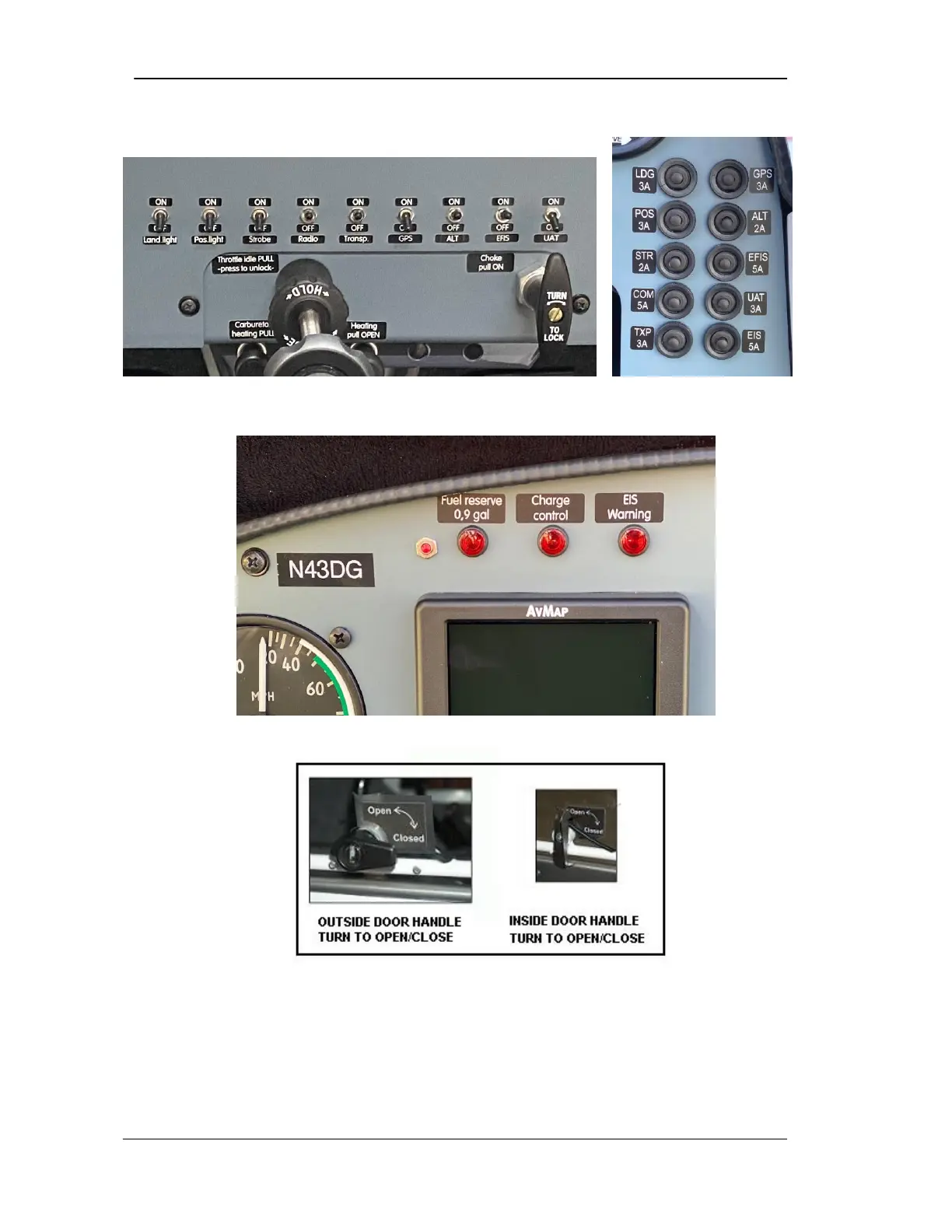

Figure 7 – Switches and circuit breakers
Figure 8 – Control lights and fuel reserve bulb check button
Figure 9 – Door locking mechanism
The battery (Powersafe SBS8, 12v, 7 ah) is located behind the right-hand pilot’s seat. Nominal voltage in
aircraft system is 13.5 to 14.2 V. The engine is equipped with an integrated AC generator with external
rectifier-regulator (12 V, 20A DC).
